Help Centerrf Sma Connector Antenna
Related Products
Specifications

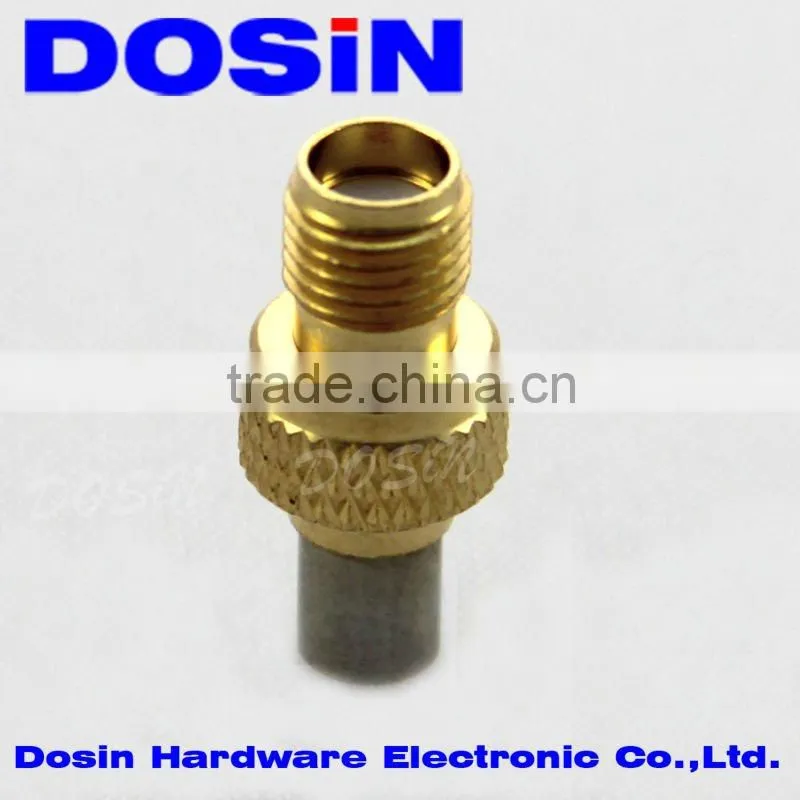

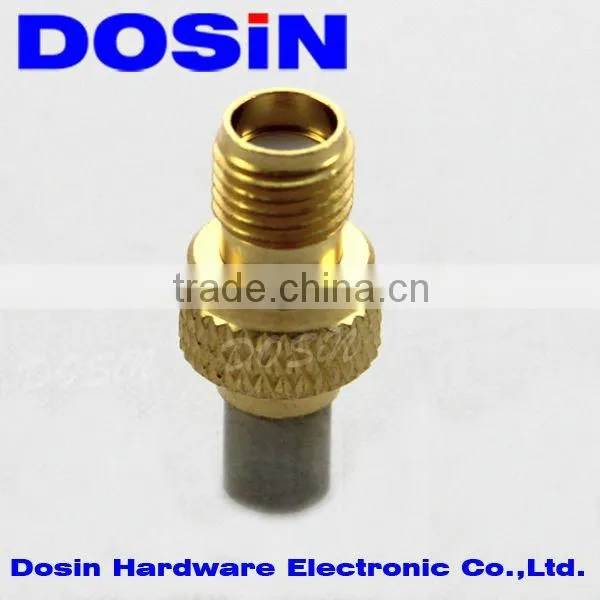

rf sma connector antenna1.Material:copper and zine
2.Insulator: PTFE
3.Professional Production
SMA Type RF Coaxial Connector
SMA connector series product is a widely used small coaxial cnnectors with threaded connections. The SMA series inch threaded connections, high strength, good shock resistance. The outer conductor ends in direct contact, so that the insertion loss to a minimum.
Specificiation:
1.small-sized thread coupling
2.wide frequency range
3.excellent performance
TECHNICAL CHARACTERISTICS
Temp.range |
-55°C~+105°C |
VSWR |
1.35 max |
Impedance |
75ohm |
Frequency Range |
0~2GHz |
Working Voltage |
250VRMS max |
Insulation resistance |
1,000m Ω min |
Voltage rating |
250V AC.DC |
Withstand voltage |
1,500 AC/minute |
Applications:
1.Base Stations.
2.PC/LAN.
3.Instrumentation.
4.Telecom
