Help CenterSma Female Pcb Edge Connector
Related Products
Specifications
sma female pcb edge connector1,material: copper or zinc
2.reasonable price
3,high quality (ROHS)

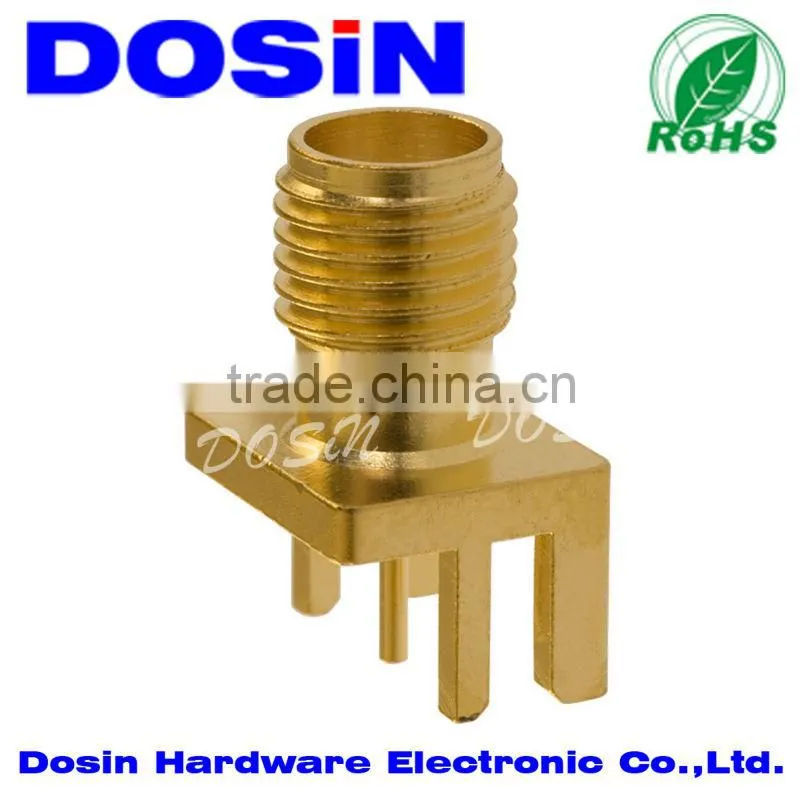

sma female pcb edge connector
Type SMA is one kind of RF coaxial connectors that is widely applied, with small-sized thread coupling characteristic. Impedance is 50Ω. The characteristic of connectors is in wide frequency range,excellent performance,high reliability. They are used in connection with RF cable or micro-strip line in RF circuit of the WLAN system,controlled program,microwave equipment and digital communication system. The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.
Technical Specification
|
Temperature Range |
-55 to +155 Deg.C |
|
Impendance |
50 Ω |
|
Frequency Range |
DC to 12.4 GHz(Semi-Rigled Cable DC-18GHz) |
|
Insertion Loss |
0.15 dB Max @ 6 GHz |
|
VSWR |
Straight: Flexible cable ≤1.10+0.02f |
|
Working Voltage |
335 V @ SEA LEVEL |
|
Withstand Voltage |
1000 V @ SEA LEVEL |
|
Insulation Resistance |
≥5000 MΩ |
|
Durability(mating) |
≥ 500 cycles |
MOQ : 500Pcs
Pckaging style: Neutral or customized packing accepted
Payment terms: We accept Paypal,T/T, Western Union ,L/C
Delivery time: 5-7 working days after payment
Shipment:
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 5 day after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
Dongguan Dosin Hardware Electronics Co., Ltd
Our company advanced equipment, the quality of the products is perfect.
with our cooperation, you must be satisfied.
moreover,we will give you a reasonable price.
please enquiries immediately, you will experience the benefit about it .
