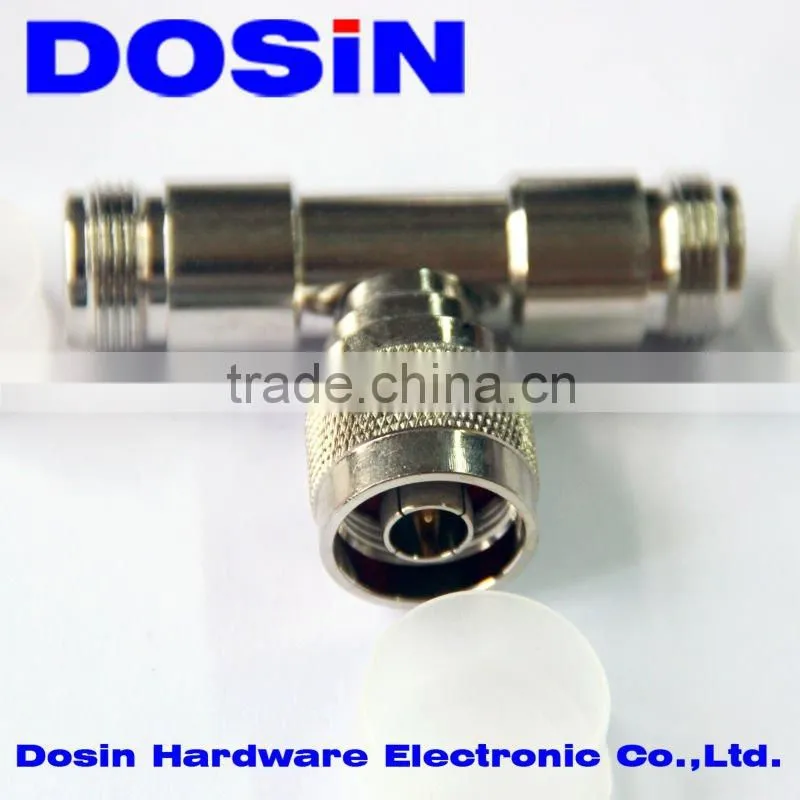

Help Centern Type Pin Connector for Cable Crimp
Related Products
Specifications
n type pin connector for cable crimp1.Material: zine and copper
2.Plating: nickel/gold
3.Insulator: Teflon
N Type RF Coaxial Connector
The connectors are akind of low to medium power connectors,with screw coupling mechanism,are widely used connect of the RF coaxial-cable in electronic equipment and instruments,and can be interchange able with the same-type connectors of abroad.Characteristic impedance 50Ω and 75Ω.
Features:
1.Accommodates a wide range of medium to miniature-sized RG coaxial cables
2.High mechanical strength, high durability with low VSWR
3.Threaded couplings ensures stability in vibration intensive applications
Our Website: https://img13.fr-trading.com
Specification:
1.Nominal impedance: 50 ohms or 75ohms
2 Frequency range: 0- 11GHz
3.Withstand Vol.: 4000V
4.VSWR: max. 1.15
TECHNICAL CHARACTERISTICS
Impedance |
50ohm |
|
VSWR |
Straight |
1.3 max |
Right Angle |
1,5 max |
|
Frequency Range |
0-11GHZ |
|
Center contacts |
Center Contact |
3 Milliohms Max |
Outer Contact |
2 Milliohms Max |
|
Insulation resistance |
5000 Megohms Min |
|
Working Voltage |
1000 VRMS max |
|
MOQ :500pcs
Packaging style:Neutral or customized packing accepted
Payment terms: We accept Paypal,T/T, Western Union
Shipment:
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within5 working day after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
BNC connector BNC male connector BNC female connector Straight PCB mount BNC connector HDMI BNC connector R/A PCB mount BNC connector BNC plug BNC jack RF BNC connector BNC coaxial connector BNC to rj45 connector mini BNC connector waterproof bnc connector rg11 bnc connector bnc compression connector 2 pin connector bnc screw bnc connector bnc connector switch bnc male connector to terminal panel mount bnc connector mcx to bnc male connector port bnc connector bnc pin connector bnc connector to usb antenna with bnc connector bnc female pcb connector bnc connector monitor dual bnc connectors bnc dc connector cable bnc solder connector bnc female chassis mount connector bnc antenna connector rg58 BNC connector bnc balun connector bnc connector crimping tool cctv bnc connector rg58 bnc compression connector double bnc connector bnc male twisted pair connector bnc connector plug bnc pcb connector rg6u connector BNC bnc connector jack free solder bnc connector bnc male rf connector bnc female rf connector bnc male plug connector bnc connector compression bnc cable connector bnc male to bnc male connector DongGuan Dosin Hardware ElectronicCO.,Ltd
Quality is essential to both of us, we believe that Excellent quality,
Reasonable price,Mutual benefit will be good basis of our cooperation.
if you have any requirement. Please contact us
looking forward to cooperate with you!
