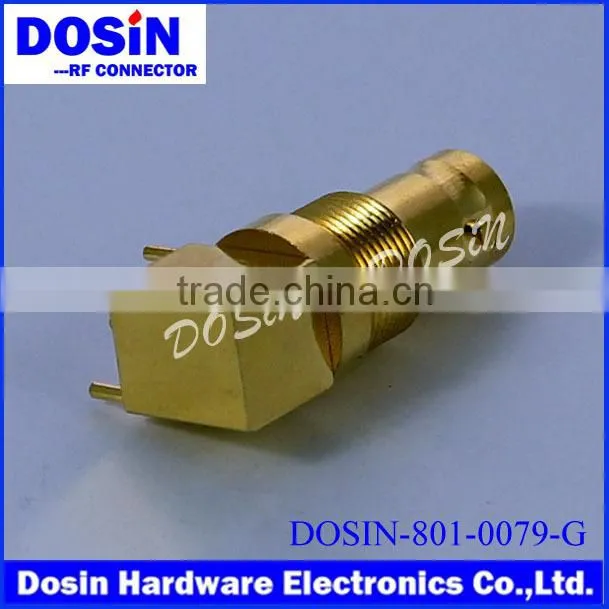

pcb mazda automotive bnc ford box wire connector

FOB Price

USD $0.2 - $0.58 / Piece

1000 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port shenzhen
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Dosin/OEM
Model Number	Dosin-801-0079	Type	Other, BNC, bnc connector
Application	Other, RF, PCB,RF	Gender	Other, Female, female

Product Description

Specifications

pcb mazda automotive wire bnc connector
Unit price:$0.6-0.8/pieces
MinimumOrderQuantity:1000Pieces
Payment terms:D/P,D/A,T/T

pcb mazda automotive bnc ford box wire connector

Packing&Deliver

Packaging Detail:

pcb mazda automotive bnc ford box wire connector

1.100 pieces/box and according as your request or standard packing

2 Neutral or customized packing also accepted

Delivery Detail:

7-10 days after received the payment

Features & Benefits

•	Bayonet coupling mechanism provides quick mating and unmating
•	50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements
•	50 Ω and 75 Ω connectors are intermateable to ensure non-destructive mating
•	Three grades of connectors are available for military, industrial and commercial applications

pcb mazda automotive bnc ford box wire connector

Applications

•	Antennas	•	Automotive	•	Base Stations
•	Broadcast toyota fuel injector bnc connector monitor electrical crimp	•	Cable Assemblies	•	Cable Modems
•	Components	•	Computers/LANs	•	Instrumentation
•	Oscilloscopes	•	Medical Equipment	•	Mil-Aero
•	Radios	•	Satcom	•	Surge Protection
•	Telecom

Specifications

Electrical
Impedance	50 Ω ,75 Ω nominal
Frequency Range	0-4 GHz with low reflection
Voltage Rating	500 volts peak
Dielectric Withstanding Voltage	1,500 volts rms
VSWR	M39012 straight connectors: 1.3 max 0-4 GHz M39012 right angle connectors: 1.35 max 0-4 GHz
MIL-C-39012 Contact Resistance	Center contact: 1.5 mΩ; Outer contact: 0.2 mΩ
MIL-C-39012 Insulation Resistance	5,000 MΩ
MIL-C 39012 Braid to Body	0.1 milliohm
MIL-C-39012 RF Leakage	-55 dB min at 3 GHz
MIL-C-39012 Insertion Loss	0.2 dB min at 3 GHz
Mechanical
Mating	2-stud bayonet coupling per M39012
Braid/Jacket Cable Affixment	All crimps are hex braid; clamps are screw-thread net and braid clamp
Center Conductor Cable Affixment	Crimps are crimp or solder; all other are solder only
Captivated Contacts	All crimps unless specified otherwise
Cable Retention	Crimps: 20-100 lbs; All others: 30-70 lbs
Material
Male Contact	Brass
Female Contact	Beryllium copper or phosphorous bronze, silver or gold-plated
Other Metal Parts	Brass, nickel finish; M39012 is silver finish
Insulator	TFE, copolymer of styrene, glass-TFE (hermetically sealed)
Crimp Ferrule	Copper/brass
Environmental
Temperature Range	TFE insulators: - 65°C to + 165 °C Copolymer of Styrene: - 55°C to + 85°C
Weatherproof	Clamps with clamp gaskets; crimps with heat-shrink tubing
Hermetic Seals	Pass helium leak test of 2x10 ^-8 cc/second
Shock	MIL-STD-202 method 202
Vibration	MIL-STD-202 method 202, test condition D
Moisture Resistance	MIL-STD-202 method 106
Corrosion	MIL-STD-202 method 101, test condition B
Temperature Cycling	MIL-STD-202 method 102, test condition D
Altitude	MIL-STD-202 method 105, test condition C
Military
MIL-C-39012	Where applicable

Note: These characteristics are typical but may not apply to all connectors.
