Rj45 Connector/cable Connector/electrical Wiring Connectors of Bnc

Name: Rj45 Connector/cable Connector/electrical Wiring Connectors of Bnc
Brand: Dosin
Availability: InStock

FOB Price

US$ 0.28 - 0.58 / Piece

1000 Pieces(Min. Order)

Port shenzhen
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Dosin
Model Number	Dosin-801-0171	Type	Other, BNC, rj45 connector
Application	Other, PCB, PCB,RF	Gender	Other, Female, Female

Product Description

Specifications

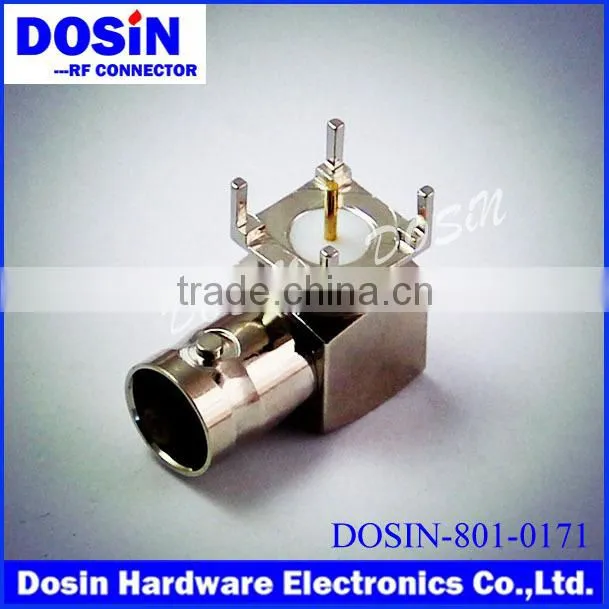

rj45 connector/cable connector of bnc
Certification:ISO9001:2008
Impedance:50ohm 75ohm
Frequency Range:0-4GHz low reflection

rj45 connector of bnc

rj45 connector/cable connector/electrical wiring connectors of bnc

Packing&Delivery

Packaging Detail:

rj45 connector/cable connector/electrical wiring connectors of bnc

1.100 pieces/box and according as your request or standard packing

2 Neutral or customized packing also accepted

Delivery Detail:

7-10 days after received the payment

Features & Benefits

•	Bayonet coupling mechanism provides quick mating and unmating
•	50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements
•	50 Ω and 75 Ω connectors are intermateable to ensure non-destructive mating
•	Three grades of connectors are available for military, industrial and commercial applications

Applications

•	Antennas	•	Automotive	•	Base Stations
•	Broadcast	•	Cable Assemblies	•	Cable Modems
•	Components	•	Computers/LANs	•	Instrumentation
•	Oscilloscopes	•	Medical Equipment	•	Mil-Aero
•	Radios	•	Satcom	•	Surge Protection
•	Telecom

Specifications

Electrical
Impedance	50 Ω 75 Ω nominal
Frequency Range	0-4 GHz with low reflection
Voltage Rating	500 volts peak
Dielectric Withstanding Voltage	1,500 volts rms
VSWR	M39012 straight connectors: 1.3 max 0-4 GHz M39012 right angle connectors: 1.35 max 0-4 GHz
MIL-C-39012 Contact Resistance	Center contact: 1.5 mΩ; Outer contact: 0.2 mΩ
MIL-C-39012 Insulation Resistance	5,000 MΩ
MIL-C 39012 Braid to Body	0.1 milliohm
MIL-C-39012 RF Leakage	-55 dB min at 3 GHz
MIL-C-39012 Insertion Loss	0.2 dB min at 3 GHz
Mechanical
Mating	2-stud bayonet coupling per M39012
Braid/Jacket Cable Affixment	All crimps are hex braid; clamps are screw-thread net and braid clamp
Center Conductor Cable Affixment	Crimps are crimp or solder; all other are solder only
Captivated Contacts	All crimps unless specified otherwise
Cable Retention	Crimps: 20-100 lbs; All others: 30-70 lbs
Material
Male Contact	Brass
Female Contact	Beryllium copper or phosphorous bronze, silver or gold-plated
Other Metal Parts	Brass, nickel finish; M39012 is silver finish
Insulator	TFE, copolymer of styrene, glass-TFE (hermetically sealed)
Crimp Ferrule	Copper/brass
Environmental
Temperature Range	TFE insulators: - 65°C to + 165 °C Copolymer of Styrene: - 55°C to + 85°C
Weatherproof	Clamps with clamp gaskets; crimps with heat-shrink tubing
Hermetic Seals	Pass helium leak test of 2x10 ^-8 cc/second
Shock	MIL-STD-202 method 202
Vibration	MIL-STD-202 method 202, test condition D
Moisture Resistance	MIL-STD-202 method 106
Corrosion	MIL-STD-202 method 101, test condition B
Temperature Cycling	MIL-STD-202 method 102, test condition D
Altitude	MIL-STD-202 method 105, test condition C
Military
MIL-C-39012	Where applicable

Note: These characteristics are typical but may not apply to all connectors.

rj45 connector/cable connector/electrical wiring connectors of bnc

Our Quality:Quality is the life of DOSIN We use only the best quality (original) components to ensure the standard of our product range is of the highest caliber. All products we sold out are strictly selected and tested by our QC department.

Warranty: We provide comprehensive after-sales service, including quality service, guidance services, We focus on customer needs in every detail. Please contact us if you need our detail warranty term.

Payment: We accept payment via TT (Bank transfer), Western Union, Escrow. We accept bank transfer for large orders. For small order, you'd better pay via Western union or Escrow.

Shipping:We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX and EMS. Do you have any question? Contact me now! We look forward to cooperating with you.
