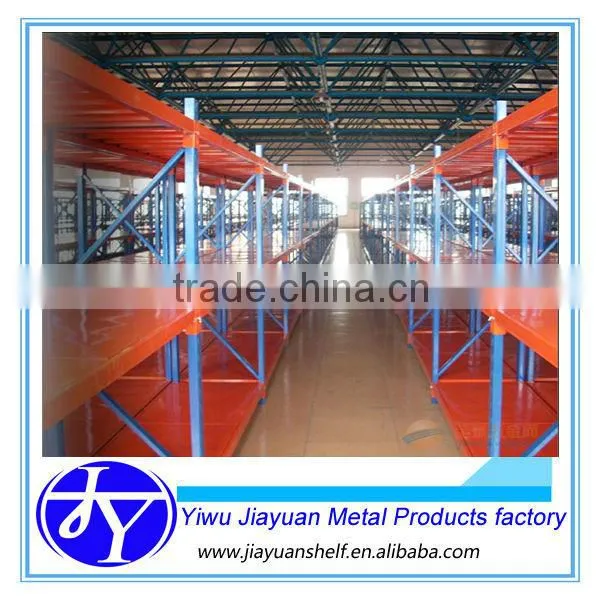

warehouse shelf rack solution

warehouse shelf rack solution

1) Appropriate for picking heavy goods by pallet.
2) High strength and durability.
3) High precision rolling components.
4) Easy for complete installation.
5) Araldite static powder coating.
6) Abundant accessories..

7) Every layer of the board can be adjusted freely;

8) Color and size can be adjusted according to your requirements.

9)The heavy-duty standing posts is good looking and anti-rust with fine powder-coating.

10)Different thickness, size, layers, and colors are available for you to choose

Beam Feature

4 holes 11"*2"*5" P shape beam,slotted connection&bolted connection. Beams can be adjusted every 2".

A,Hot rolled steel moulding, bearing evenly.
B,Various specification and load capacity to meet different storage requirements.
C,Beam hitch steel’s teeth are designed to different direction; this not only makes the teeth for increased rigidity.
D,Connection between beams and pillars are performed by safety bolts and clips.
E,Optional accessory is nameplate holder.

 Uprights feature

In clined beam has two type longer,one is used loosely for the upper of the rack,the shorter densely for the lower to improve the bearance and solidity.

A,Polyhedron with thirteen faces.
B,Pitch is 50 mm, beam is adjustable.
C,Triangle hole easily tightens to hitch steel and strengthens the load capacity of posts.

Bracings

the horizontal and diagonal bar on standing colunm is square tube,no C-shaped ,square tube is 30*50 ,30*30, and so on.

 Support for metal box

Used for placing mesh box and metal container etc. with stacking feet, safe and reliable.

 Wood shelf and support bar

The plywood, 20mm thick, is in the salience of knighthead. Each pallet has a pair of knighthead.

Metal shelf

The steel material: cold rolling steel ,SPCC, DC01, ST12,Q195, the steel thickness ranges from 0.6mm to 1.2mm,

Safety locker

Locker, bolted,pin  for making racks stability,more strong.

Protector/ barrier

Located at the sides or corners of shelving to be away from impact by forklift.

 Pallet stopper

For pallet stop, speciully for fork lift in top oppration.

Row-spacer

Row-spcaer,to be two lines rack connected.

Benefits & Features:

· Knock-down components reduce freight costs.

· Flexibility in Design

· Easy to reconfigure or repair.

· Available in painted or galvanized finish

l 1.Frame and Beam Material:Cold rolling steel   SPCC  DC01,ST12,Q195/Q235B

l 2,Beam adjustment:The beam levels are adjustable

l 3. Procedure: Moulding+ Acid cleaning/or Sand cleaning+ Phosphating+ Degrease+ Dryness+ Powder coat+ Polymerization

l 4.Finishing:Epoxy-Polyester Coating

l 5.racking color:many colors are available such as orange,blue and so on.

l 6.Safety standard:Products and designs are in compliance with the most stringent safety norm AS4084-1993 and FEM10.202.

Pictures showing:

Upright standing shows:

Beams showing:

Decking panel showing:

Accessories showing:

Shipping : by sea

package pcitures:

factory Capability

  We are one of experienced manufacturer ,marketing Supermarket Equipment:shelving, baskets, counter, hooks, cabinet,trolley;Warehouse Racks: Dirve-in rack, Cantilever rack, plastic pallet, steel pallet, wire panel, storage cage,warehouse trolley,and so on; and Related Accessories with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in business service equipment, supermarket and warehouse and other industries. To keep up with international trends, we are constantly developing new products to meet the needs of clients from all over the world.

Our products are widely used in shopping malls, supermarkets, plant warehouses, and circulation fields across China. For the overseas markets in Europe, America, the Middle East, East Asia and Southeast Asia, our products have received universal praise from local customers.

Our 2014 new hot-sale products:  Tire racks, Wire panel, supermarket shelf, pallet rack ,steel pallet,shopping trolley

By continually adhering to High Quality,Competitive Price and Timely Delivery.we warmly welcome you to visit and cooperate with us.

Pls kindly inform us the below information for us make a quotation:

 1. AUTO CAD drawings

2. Width, height, length of the shelf

3. Size of your warehouse

4. How many bays and layers you need?

5. Loading capacity of each layer

6. LAR Color you want
