Help CenterWire Mesh Panel for Pallet Racking
Related Products
Specifications
wire mesh panel for pallet racking1),wire panel,good quality,
2) ZInc surface finish
3)Good capacity,
wire mesh panel for pallet racking
Specification
1,size:1100*1075
2, wire dia:4-6.0mm
3,wire mesh :50*50, 50*100,25*100
4,Loading capacity:500kg-2000kg
5,Material: Q235 or Q195
6,strenfht bar: steel bar with 1.5mm, 1.6mm,1.8mm thickness ,making wire more strong.
7,Any size and thcikness is available
8,surface finish : zinc
9,Deck 1100mm Deep, 2 Beam Box-Box, 1075mm Nominal width, 544kg Max. UDL
Wire Decking to suit 2 beam layout with 1080 mm nominal width with
Standard channels and a 25x100 mesh to support 544kg of Universally Distributed
Load (UDL). Featuring external waterfalls on both sides of the deck to
eliminate catch points and sharp edges.
10,Zinc Plated finish
Overall deck width is 1179 mm
Featuring mesh with 25mm top wire pitch and nominal 100mm bottom wire pitch
Designed to support a load of 544 kg per deck applied as a Universally Distributed
Load (UDL) as specified in ANSI MH 26.2 - 2007
Some more detail and size :
Any size is available ,pls check the followings reference size:
|
Model |
Wire grid |
Mesh Size |
Channel(pcs) |
Flared Channel Thickness |
Load Capacity |
mm |
inch |
mm |
Lbs |
||
36”*46” |
4.8-5.5 |
2.5*4.5/2*4 |
3 |
1.8-2 |
2500 |
42”*46” |
4.8-5.5 |
2.5*4.5/2*4 |
3 |
1.8-2 |
2500 |
44”*46” |
4.8-5.5 |
2.5*4.5/2*4 |
3 |
1.8-2 |
2500 |
48”*46” |
4.8-5.5 |
2.5*4.5/2*4 |
3 |
1.8-2 |
2500 |
36”*52” |
4.8-5.5 |
2.5*4.5/2*4 |
3 |
1.8-2 |
2500 |
42”*52” |
4.8-5.5 |
2.5*4.5/2*4 |
3 |
1.8-2 |
2500 |
44”*52” |
4.8-5.5 |
2.5*4.5/2*4 |
3 |
1.8-2 |
2500 |
48”*52” |
4.8-5.5 |
2.5*4.5/2*4 |
3 |
1.8-2 |
2500 |
24”*52” |
4.8-5.5 |
2.5*4.5/2*4 |
3 |
1.8-2 |
2500 |
24”*46” |
4.8-5.5 |
2.5*4.5/2*4 |
3 |
1.8-2 |
2500 |
24”*58” |
4.8-5.5 |
2.5*4.5/2*4 |
3 |
1.8-2 |
2500 |
36”*58” |
4.8-5.5 |
2.5*4.5/2*4 |
3 |
1.8-2 |
2500 |
42”*58” |
4.8-5.5 |
2.5*4.5/2*4 |
3 |
1.8-2 |
2500 |
44”*58” |
4.8-5.5 |
2.5*4.5/2*4 |
3 |
1.8-2 |
2500 |
Features:
1) Allows for free passage of water so overhead sprinklers operate effectively.
2) Qualifies for a reduction in Fire Insurance premiums.
3) Reusable trip after trip
4) Stay cleaner because dirt can’t build up on wire grid.
5) Don’t have a disposal fee.
6) Lighter in weight and easy to handle.
7) Won’t rot or splinter and have no nails.
8) Build products to your specifications.
9) Finish:Zinc plated or hot dip zinc or powder coating.
10, Deck 1100mm Deep, 2 Beam Box-Box, 1075mm Nominal width, 544kg Max. UDL
Wire Decking to suit 2 beam layout with 1080 mm nominal width with
Standard channels and a 25x100 mesh to support 544kg of Universally Distributed
Load (UDL). Featuring external waterfalls on both sides of the deck to
eliminate catch points and sharp edges.
Advantages:
Wire Mesh Decking is commonly used as a safety measure on selective pallet rack to prevent pallets or the products stored on them from falling through the rack structure.
Wire mesh decking comes in various thicknesses and mesh dimensions.
Wire mesh construction also allows for easy identification of shelf contents and prevents dirt and other debris from accumulating on the shelves because of the holes in the mesh.
It is also recommended as a safety feature because the wire mesh allows for the sprinkler systems to work more efficiently should there be a fire in the workplace.
| Safer | Better fire safety performance,meets stringent insurance requirements |
| More Durable | Does not warp,twist or sag:highly durable and maintenance free |
| Hygienic | Does not allow dirt or dust to build up |
| Easy to handle | Quick and easy to install-no fixing or fsatening |
| Improves Visbility | Increase lighting and access for operators |
| Versatile | Ideal for storage,including coolrooms and freezers |
| Flexible | Allows you to store skids,pallets or small parts in any location |
| Standard size | US standard or European standard |
| Loading capacity | 300kg/500kg/800kg/1000kg |
| Finish | zinc/hot dip/powder coating |
| Reinforcement | F/U/invert channel |
| Remark | Custom design and size is accepted |

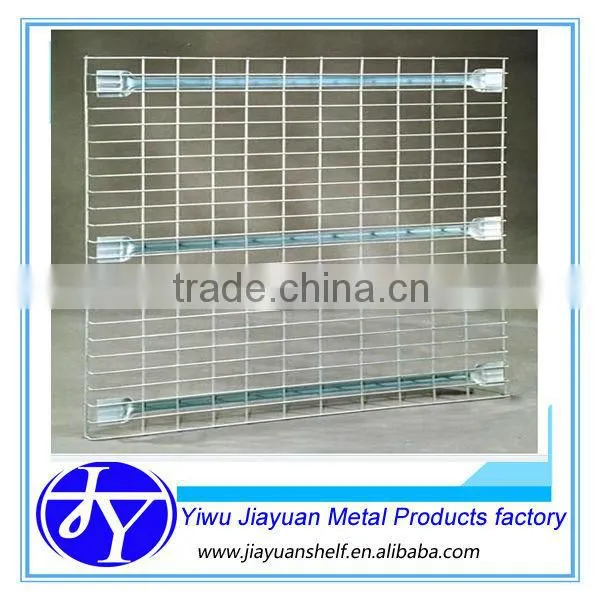

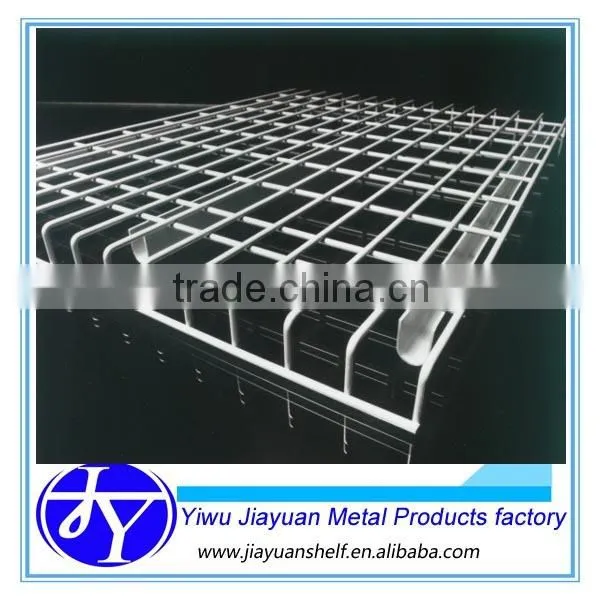

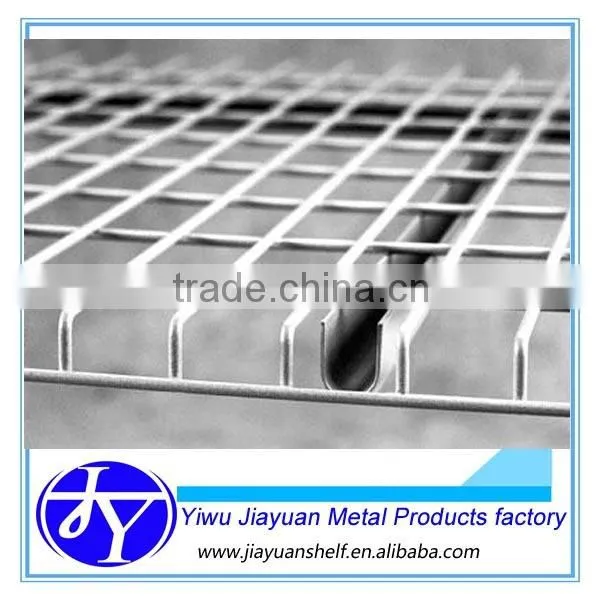

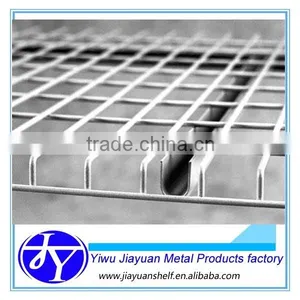

products pictures showing:
Some Size drawing

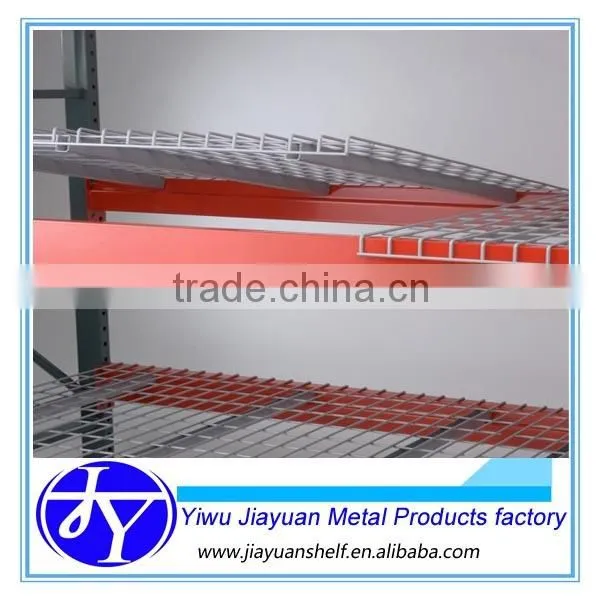

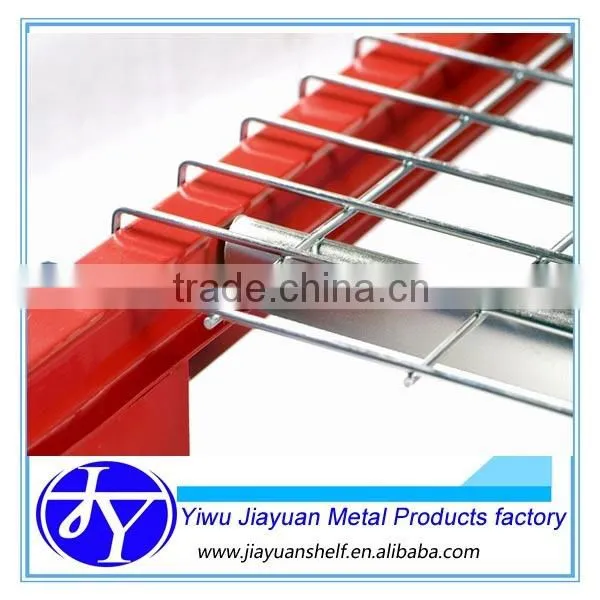

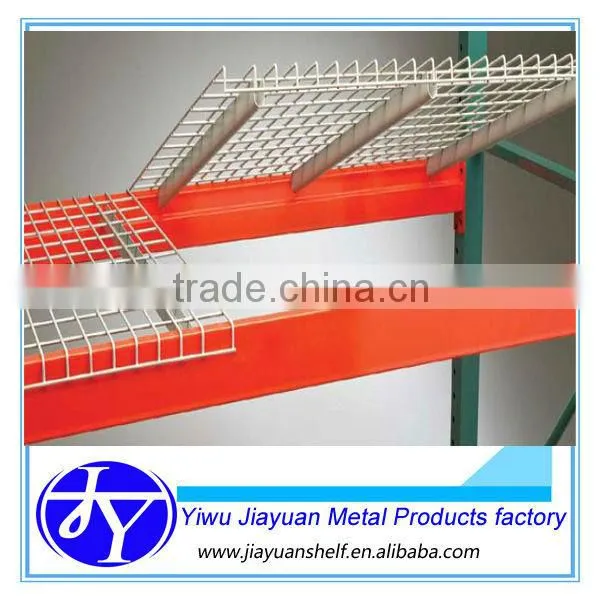

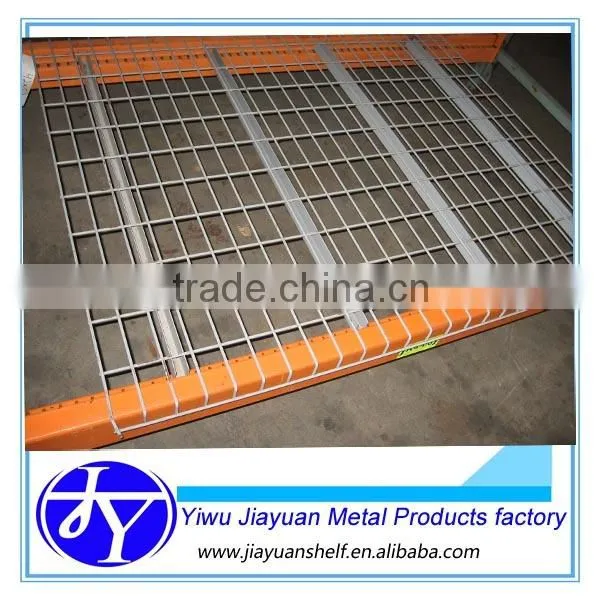

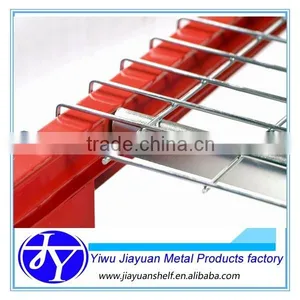

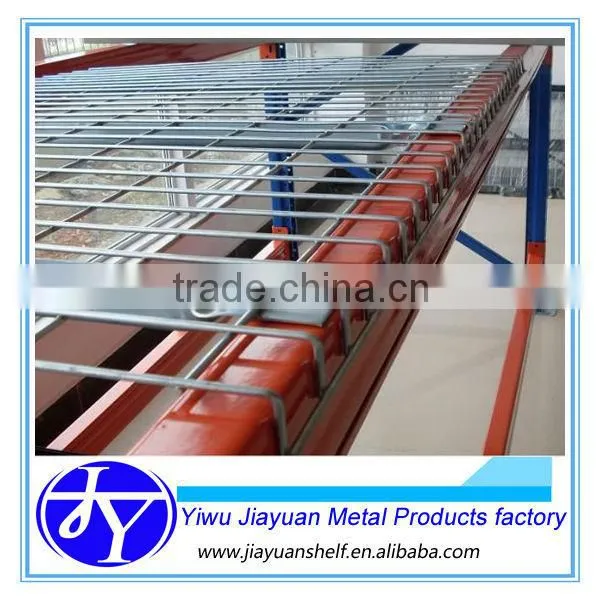

The Pictures showing between wire panel and pallet rack beam"

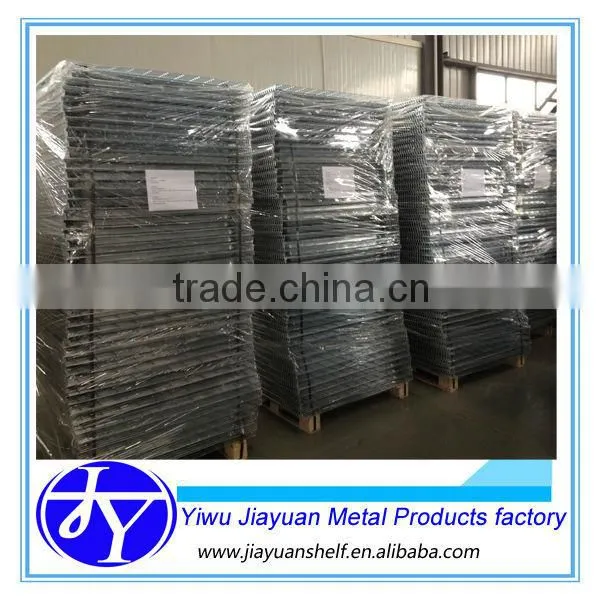

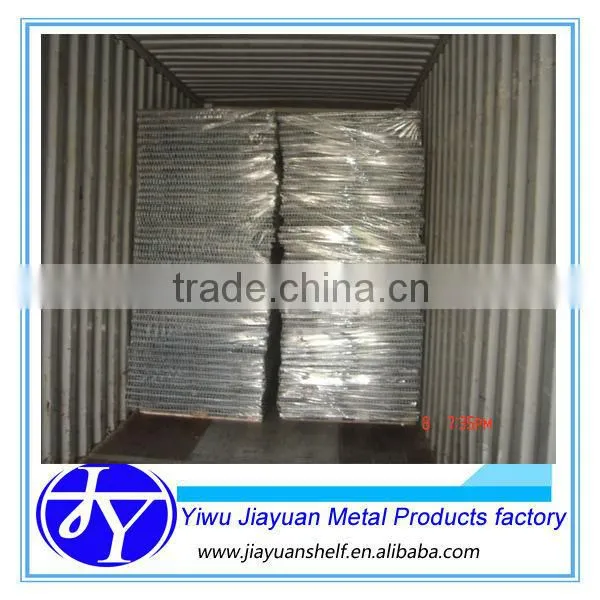

packing and shipping
packing: Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack for wire deck panel.
VI Company Introduction
Our Jiayuan company is an factory manufacturing the supermarket and warehouse tools mainly like supermarket shelf , rack, wire shelf, basket, checkout counter, hooks and trolley, warehouse rack and so on. We are professional in making and designing varies shopping cart, also we can make it according to your requirement.
So we can supply a lower factory (invoice) price and some perfect foreign trade process. If you are interested in our products, please feel free to contact us, there are various color, style, and sample for your selection. For more about us, please visit our website: www.jiayuanshelf.en.china.cn, We will be at your service any time or you can contact with me directly at any time.
