Dz47 Electrical Circuit Breaker Size
US$ 1.05 - 4.65
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Suoneng
Model Number:
C45
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dz47 Gb10963.1 Circuit BreakerUS$ 0.59 - 6.5MOQ: 1 Piece -
DZ47 100 Mini Type Circuit BreakerUS$ 1.05 - 7.56MOQ: 1 Piece
-
Dz47 Circuit Breaker 6 ka Rated CurrentUS$ 1.05 - 4.65MOQ: 1 Piece
-
Dz47 16a 2p Mini Circuit BreakerUS$ 0.59 - 6.5MOQ: 1 Piece
-
Dz47 C45 Mcb Circuit BreakerUS$ 0.59 - 6.5MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Suoneng
Model Number
C45
Type
Mini
Poles Number
3
Specifictions
Application range
DZ47-63 mini circuit breaker is applied in the circuit of AC50Hz/60Hz, rated current 63, rated voltage 230V/400V or below. This product is mainly used in the electric circuit and equipment of modern buildings, to protect them from the overload, short circuit and unfrequent operating and isolution.
1.Rated voltage: 230v/400v
2.Rated current: 2A, up to 63A
3.Frequency: 50Hz/60Hz
4.Comply with: IEC60898,GB10963 ISO9001
5.Protection functions: overload, short circuit, unfrequent operation and isolation
Merits
- high breaking capacity
- beautiful appearance
- light in weight
- excellent and reliable function
In accordance with IEC60898, GB10963
Protection functions: overload, short circuit, unfrequent operation and islation
Main techinical parameter
| model | Rated current | Pole | Insulation voltage | Rated voltage | Frequency | Rated short circuit breaking capcacity |
instantaneous release type |
| SN67-63 | 6, 10, 16, 20 25, 32, 40, 50, 63 | 1, 2, 3, 4 | 690 | 230, 400 | 50/60 | 4500 | C, D |
| sn67-100 | 63, 80, 100 | 1, 2, 3, 4 | 690 | 230, 400 | 50/60 | 6000 | C, D |

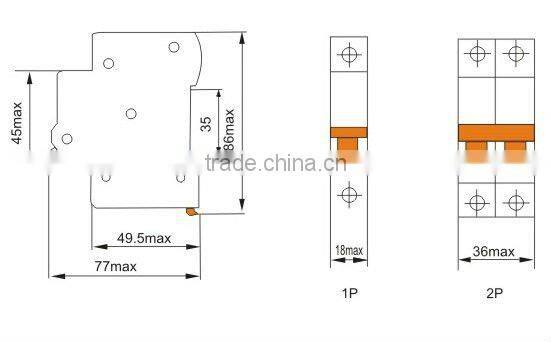

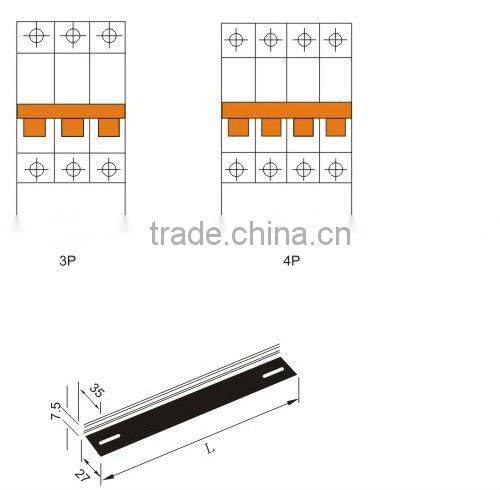

Outline and size
