Help CenterEarth Leakage Circuit Breaker 30a 63a Rcbo 6amp Rcbo
Related Products
-
Leakage Protection Switch Overload Switches Earth LeakagesUS$ 3.96 - 9.79MOQ: 1 Piece -
Rcbo Breaker 16a 30ma 2p Circuit BreakerUS$ 1.98 - 10MOQ: 2 Pieces
-
C65n 3 Pole Rccb Circuit Breaker 30 Amp Elcb BreakerUS$ 1.98 - 10MOQ: 2 Pieces
-
Elcb 4p Wenzhou Circuit Breaker Rcd Type bUS$ 1.98 - 10MOQ: 2 Pieces
-
Zhejiang Wenzhou Yueqing Residual Circuit BreakerUS$ 1.98 - 10MOQ: 2 Pieces
Application rang of DZ47LE 63 mini leakage breaker
1.DZ47LE 63 mini leakage breaker is applied in the circuit of AC50 HZ, rated voltage 400V, rated current .
2.DZ47LE 63 miniature circuit breaker has the characteristic of advanced structure ,reliable performance, high breaking capacity ,small and beautiful .
3.DZ46LE 63 shell and impact resistant leaves in three parts , high flame retardant materials.
4.under normal condition it may be also applied as the unfrequent makebreak electncal device and lighting circuit.
5.this product has the following features:beautiful appearance,light in weight, excellent and reliable function, the breaking capacity is quite high and tripping rapidly etc. the case body and the parts adopt the high fire-resistant and impact-resistant plastics that using long life.
normal working state of DZ47LE 63 mini leakage breaker
1.ambient air temperature limit shall not exceed +40,lower limit of not less than 5,and the average temperature of no more than 24h +35.
2.the altitude dose not exceed 2000m installation site .
3.air relative humidity in the ambient air temperature is +40 not more than 50%,at low temperature can be allowed to have a higher relative humidity ,at 20 +90%,for example ,occasionally due to temperature change of condensation should take appropriate measures.
4.pollution levels:level 2
5.Install categories:II and III class.
6.any installation place of the external magnetic field direction should not be more than 5 times of the geomagnetic field.
7.usually installed vertically,handle up for position , the power supply is connected to any tolerance 2direction.
8.the installation area should be no significant impact and vibration.
Mamtechnical parameter of DZ47LE 63 mini leakage breaker
|
rated current of frame(Inm)A |
pole |
add the neutral line |
rated current In(A) |
rated short circuit make-break capacity |
type of over-current instantaneous release |
||
| current(V) | make-break capacity Im(A) | cos | |||||
| 32 | 1 | N |
6,10, 16,20, 25,30 |
230 | 4500 | 0.7 | C |
| 2 | |||||||
| 3 | 400 | ||||||
| 3 | N | ||||||
| 4 | |||||||
| 32 | 1 | N |
6,10, 16,20, 25,32 |
230 | 3000 | 0.8 | D |
| 2 | |||||||
| 3 | 400 | ||||||
| 3 | N | ||||||
| 4 | |||||||
| 63 | 1 | N |
40,50, 63 |
230 | 3000 | 0.8 | C |
| 2 | |||||||
| 3 | 400 | ||||||
| 3 | |||||||
| 4 | N | ||||||

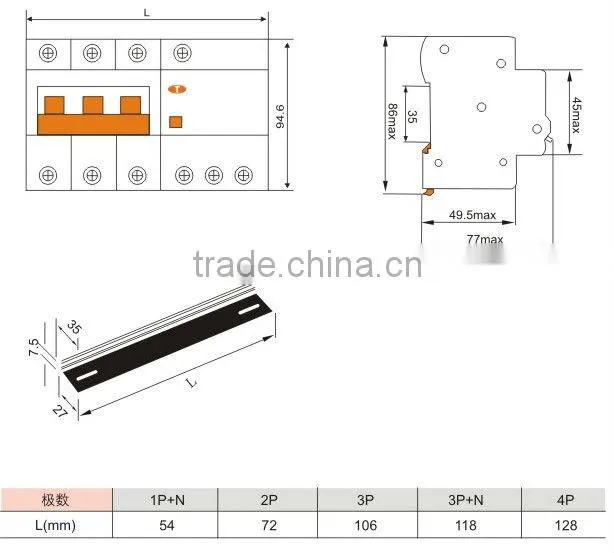

Outline and installation dimensions of DZ47LE 63 leakage breaker
