Home > Electrical & Electronics > Breaker & Protector > Circuit Breaker > Watt-hour Meter Circuit Breaker
Watt-hour Meter Circuit Breaker
US$ 1.75 - 20
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SUONENG
Model Number:
SN67S
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DZ47S 63A 3P+N IC Card Meter Mini Circuit Breaker SN67SUS$ 3.75 - 20MOQ: 1 Piece -
3P+N IC Card Meter Mini Circuit Breaker SN67SUS$ 3.75 - 20MOQ: 1 Piece
-
Hot Sale ic Card Circuit Breaker for Prepaid MeterUS$ 3.75 - 20MOQ: 1 Piece
-
Circuit Breaker for Prepaid Electric Meter Zhejiang WenzhouUS$ 3.75 - 20MOQ: 1 Piece
-
DZ47-63 Mini Circuit Breaker 2PUS$ 2.2 - 3.4MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
SUONENG
Model Number
SN67S
Type
Mini
Poles Number
Other, 1P+N
Specifications
Application range
SN67S- 63/125 mini circuit breaker with shunt tripping apparatus which owns the intelligently shunt tripping function, and is applicable in AC50Hz/60Hz, rated voltage 230V/400V and rated current 125A. It can do remote control or control the breaking by automatic signal, and at the same time can stop the circuit from overloading and short circuit. It also can do the unfrequent operating to the circuit. At present, it is widely used in supporting equipment to control the ON and OFF of the circuit for IC card prepayment watthour meter.
This circuit breaker is in accordance with IEC60898, GB10963, GB140482.
Merits
- this circuit breaker is made up of SN67S mini circuit and shunt tripping apparatus of intelligent module.
- all the accessories is fixed by the plastic cover.
- it is nice to impact the resistance and flame- resistant.
- it is specially designed for equipment with single-phase or three phase four wire ICcard watthour.
- it has the inverse time overload and short circuit protection, and can receive the signal from ICcard watthour meter to cut off the circuit in order to avoid users default the electric charge.
- high breaking capacity
- small volume
- reliable performance
Main technical parameter
| Product model | Rated current of frame | Pole | Width | Style | Rated current | Rated working voltage | Control voltage | Rated short circuit breaking capacity |
| SN67S-63 | 63 | 1P+N,3P+N | 2, 4 | B, C, D | 1, 2, 3, 4, 5, 6, 10, 15, 16, 20, 25, 32, 40, 50, 63 | 230/400 | 230 | 6000 |
| SN67S-125 | 125 | 1P+N,3P+N | 3, 6 | C, D | 63, 80, 100, 125 | 230/400 | 230 | 10000 |

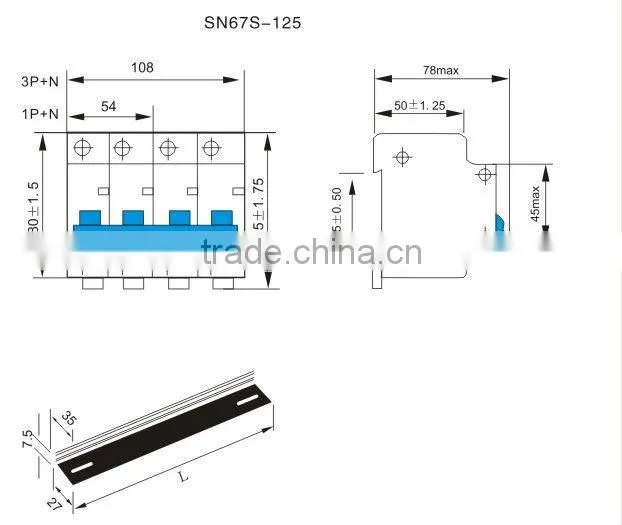

Outline and installation dimensions
