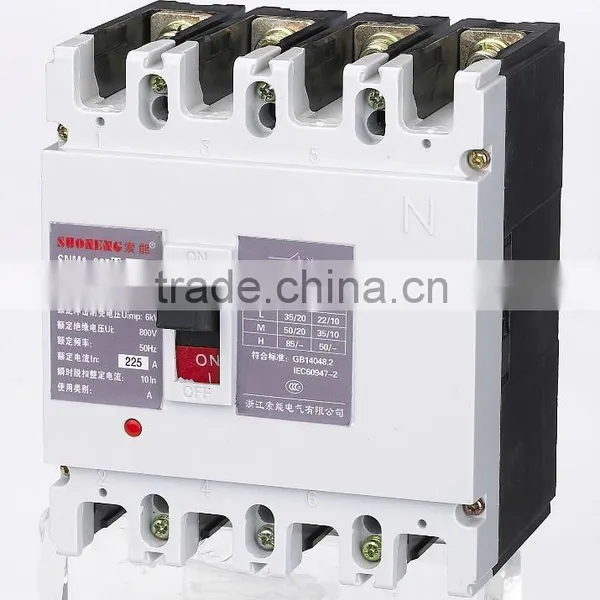

690v IEC60947 CM1 Moulded Case Circuit Breaker Mccb

Name: 690v IEC60947 CM1 Moulded Case Circuit Breaker Mccb
Brand: SUONENG
SKU: 120121235
Availability: InStock

US$ 13.75 - 300 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

SUONENG

Model Number:

CM1

Zhejiang Suoneng Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name SUONENG

Model Number CM1

Type Moulded Case

Poles Number 4

Quick details

Place of Origin: Zhejiang China Model Number: SNM1 Brand Name: SN

Type: moulded case breaker

Packaging & Delivery

Packaging Detail: standard export package

Delivery Detail: 15

Specificaitions

This mini circuit breaker is in accordance with these standards as follows:

IEC60947 and GB14048.1-206 General
IEC60947 and GB14048.2-2008 Low voltage breakers
IEC60947-4-1 and GB14048.4 Electromechnical contractors and motor starters
IEC60947-5-1 and GB14048.5 Electromechnical control circuit electrical equipments

Technical parameter

Main Technical Specification (table1)

Type	Rated current (A)	Polenum-ber	Ratedinsui-atingvolt- age(V)	Rated operat-ingvolt-age(V)	Arcing- over distance (mm)	Ultimate short circuit breaking capacity (KA)	Servies short circuit breaking capacity (KA)	Operation perform- ance		Utiliza-tioncat-egory
Type	Rated current (A)	Polenum-ber	Ratedinsui-atingvolt- age(V)	Rated operat-ingvolt-age(V)	Arcing- over distance (mm)	Ultimate short circuit breaking capacity (KA)	Servies short circuit breaking capacity (KA)	Load	Unload	Utiliza-tioncat-egory
SNM1-63L	(6),10 16,20 25 ,32 40,50 63	3, 4	500V	400V	0	25	18	1500	8500	A
SNM1-63M	(6),10 16,20 25 ,32 40,50 63		500V		0	50	35
SNM1-100L	(10),16 20,25 32,40 50,63 80,100		800V		0(≤50)	35	22
SNM1-100M					0(≤50)	50	35
SNM1-100H					0(≤50)	85	50	1000	7000
SNM1-225L	100,125 160,180 200,225				≤50	35	22
SNM1-225M					≤50	50	35
SNM1-225H					≤50	85	50	1000	4000
SNM1-400L	225,250 315,350 400				≤50	50	35
OM1-400M	225,250 315,350 400				≤100	65	42
SNM1-630L	400,500 630				≤100	50	35
SNM1-630M					≤100	65	42
SNM1-630H					≤100	100	65
SNM1-800M	630,700 800	3			≤100	75	50
SNM1-800H	630,700 800				≤100	100	65
SNM1-1250M	1000,1250				≤100	100	65
SNM1-1250H	1000,1250				≤100	125	5
