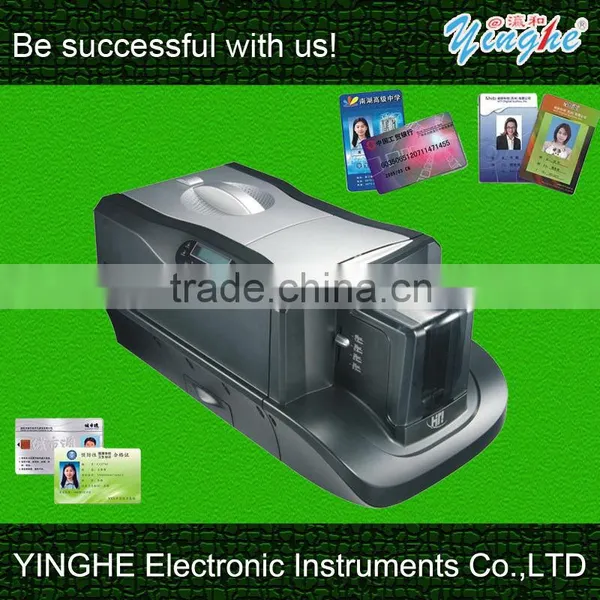

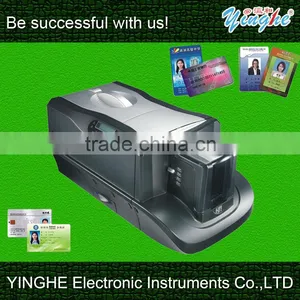

FAGOO P560 Two Side PVC Card Printer

Name: FAGOO P560 Two Side PVC Card Printer
Brand: yinghe
SKU: 120118397
Availability: InStock

US$ 1250.00 - 1250.00 MOQ: 1 Unit

Key Specifications

Condition:

New

Plate Type:

Screen Printer

Place of Origin:

Guangdong, China

Guangzhou Yinghe Electronic Instruments Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Screen Printer

Place of Origin Guangdong, China

Brand Name yinghe

Model Number P560

Usage Card Printer

Automatic Grade Automatic

Voltage 100 ~ 240 VAC; 50Hz ~ 60Hz

Gross Power 40w

Dimensions(L*W*H) 275 mm x 508 mm x 251 mm

Weight 10KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Parameter

Model Name	YHP550 (Single-side)	YHP560 (Double-side)
Printing Method	Color Dye Sublimation / Monochrome Thermal Transfer
Resolution	300 dpi x 300 dpi
Display	LCM control panel
Memory	32MB ; 1MB Flash
Printing Speed	Speed Mode: 25 sec per YMCKO single side
	Premium photo mode: 32 sec per YMCKO printing

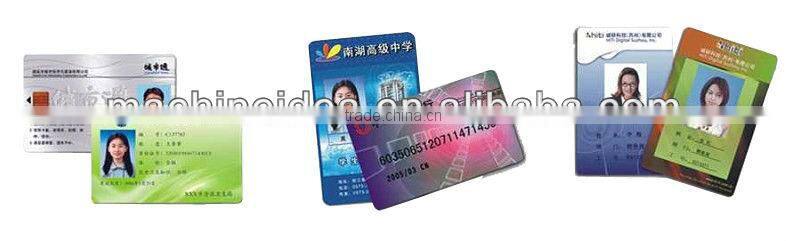

Accepted Card Specification	Size: CR-80 86mm(L) x 54mm(W) / 3.375"(L) x 2.125"(W) Thickness : 0.3 mm* to 1.0 mm / 10 mil* to 40 mil * 0.3mm (10mil) only supports single side printing
Card Input Capacity	100 Cards (0.76 mm / 30 mil thickness)
Card Out Capacity	100 Cards (0.76 mm / 30 mil thickness)
Software Driver	Windows 2000 / XP, Mac OS 10.2 and above
Communication Interface	USB 1.1 / USB 2.0 full speed
System Request	IBM-PC or compatible, Windows 2000/XP, Pentium class 133MHz Computer with 128MB of RAM or higher, 100 MB free hard disk space or higher
Dimensions (W x L x H)	275 mm x 508 mm x 251 mm / 10.83" x 20" x 9.9"
Weight	9.1 kg / 20 ibs
Power Supply	100 ~ 240 VAC; 50Hz ~ 60Hz
Operating Condition	10° ~ 32° C / 59° to 89.6°F; 20 ~ 75% non-condensing
Ribbon Options	YMCKO (200 prints) Resin K (1,000 prints) KO (500 prints) YMCKOK(170 prints)
Optional Encoding Modules (SDK upon request)	ISO Magnetic stripe card encoder, Dual high- and low-coercivity, Track 1, 2 and 3. Contact Smart Card Encoding Module Contactless Smart Card Encoding Module (Mifare ISO 14443 type A available)
Accessories	Clean Kit (Clean cards & Swaps) Clean Module (Air filter & Clean roller) Mag Head Clean Kit (Clean cards & Specific swaps)
