Help CenterYinghe A3 UV Coating Machine
Related Products
Specifications
1.Coating use chemical liquid film for UV Coating machine.2.With this machine,UV coating liquid will adhesive evenly on photo

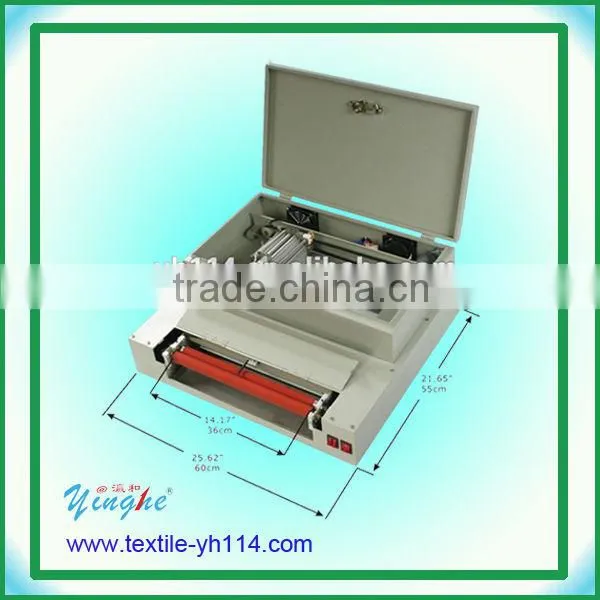

YH-330 A3 UV Coating Machine
Features
1.Extrusion Coating and lamination are industrial processes that enable to produce a melt of thermoplastic polymer material.
2.When it is coated as a thin layer onto a moving substrate, the process is known as “Extrusion Coating”. When it is used as a “glue” to combine substrates, it is known as “Extrusion Lamination”.
3.Coating use chemical liquid film. With this machine, UV coating liquid will adhesive evenly on photos. When protect film becomes dry by UV light, photos become waterproof ,damp-proof, anti-aging, anti-ultraviolet, strongly adhesive, hand wearing and anti-scrapping.
4.The greatest advantage is that the UV coating machine can save a lot of money, the thickness of coating is slight, no need more UV coating liquid and it is not prone to fail such as cold laminating, and more transparent than cold and hot laminating. Specially suitable for photo studios to use, due to bulk laminating . It will replace the traditional cold and hot laminating techniques to a great extent.
Applications and Properties
The uv coating machine is a small equipment we manufactured for the digital printing,color and short run printing.It can coating on the surface of photo,plastic,art paper ,gold leaf,silver leaf ,pvc,pet,canvas ,pp photo paper,gum stock ,and so on, and the result is waterproof,defend oil,smooth,wear-resisting,beautiful in color. It is used for full coating to enhance their quality and give beautiful feeling.
This equipment takes the traditional technique of cold lamination and hot lamination which lower the cost greatly.
Parameter
| Model | YH330 | YH330+ | ||||||
| coating width | A3+ ,330 mm(12 inch) | |||||||
| rated voltage | 220v | |||||||
| power supply | 450w | |||||||
| ambient temperature | 15-35 °C | |||||||
| coating speed | 1m/min | 2m/min | ||||||
| paper thickness | 0. 15-1 mm | |||||||
| liquid consumption | 5-10ml/m² 150-200 m²/kgs | |||||||
| uv light lifetime | about 800 hours | |||||||
| machine size | 600*550*220mm | |||||||
| package size | 680*640*300mm | |||||||
| gross weight | 39 kg | |||||||
| Other details | ||||||||
| delivery time | 5-7days | |||||||
| payment terms | T/T, L/C, Western union | |||||||
| MOQ | currently no limit (1pcs) | |||||||
| after-sale service | technology support or give solution on line | |||||||
| Quality gurantee | 12 month from delivery date | |||||||
