Precise and advanced CNC machines account for 65% of the whole equipment investment.Our company have over 20 years history.

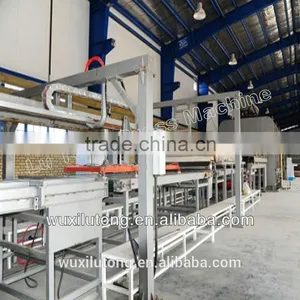

The main technical parameter of 2400T 6×12 hot press machine automatic line
1, Total pressure: P=24000KN
2, Size of heating plate: 3850mm×1940mm
3, Board size: 3660mm×1830mm
4, Main cylinder: D=400mm Quantity:8
5, Daylight: H=350mm
6, Loading in width direction, Paper feed manually, automatic trimming.
No. |
Name |
Parameter |
Remark |
1 |
Finished Specification
|
(8~30)×1830×3660mm |
|
2 |
Pressing Cycle |
According to technological request |
About 50s |
3 |
Specific pressure |
24000kN(2400 ton) |
|
4 |
Unit working pressure |
≤35.8kg/cm2 |
|
5 |
Size of heating plate |
1940×3850mm |
|
6 |
Daylight opening |
350mm |
|
7 |
Main cylinder(Diameter×stroke) |
400×350mm 8 units |
|
8 |
Oil pressure of hydraulic system |
≤25MPa |
|
9 |
Temperature of heating plate |
≤210°C |
|
10 |
Temperature control of heating plate |
Temperature control meter by digital setting(With secondary cycling system) |
prepared by user self |
11 |
Temperature control precision of heating plate |
(Upward and downward heating plate controlled separately) |
|
12 |
Working of loading device |
Clamp type |
|
13 |
Speed of loading device |
≤70m/min |
|
14 |
Drive mode of loading device |
Inverter |
|
15 |
Control mode of whole wire |
PLC |
|
19 |
Arrangement of energy |
0.48MW(40×104 kcal/h) |
|
20 |
Heating media of heating plate |
Thermal oil (Boiler prepared by user self) |
|
21 |
Total power: |
~90kW |
|
22 |
Arrangement of compressed air |
~3.5m3/min 0.6Mpa |
|
23 |
Wind quantity of ash separator of brusher |
(Compressed air prepared by user self)~7000m3/h |
|
24 |
Gross Weight |
~140000kg Whole line |
|
25 |
Size of the line (Length×Width×Height) |
51000×11500×4000mm (Above the ground) |
|
Details of Line:

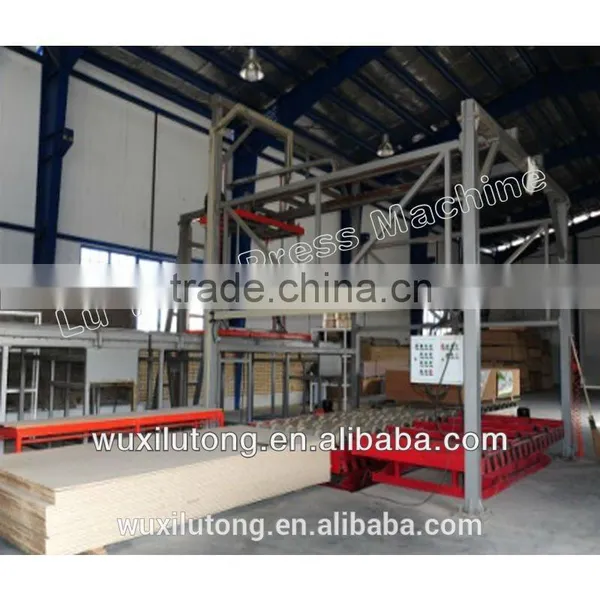

1) Loading lifter
Gross weight: 1000 kg
Function: Feeding the pallet of board to the lifter. Then it will hold in the right position to make the board loading easily. It was control by the hydraulic system and photo electricity reply.

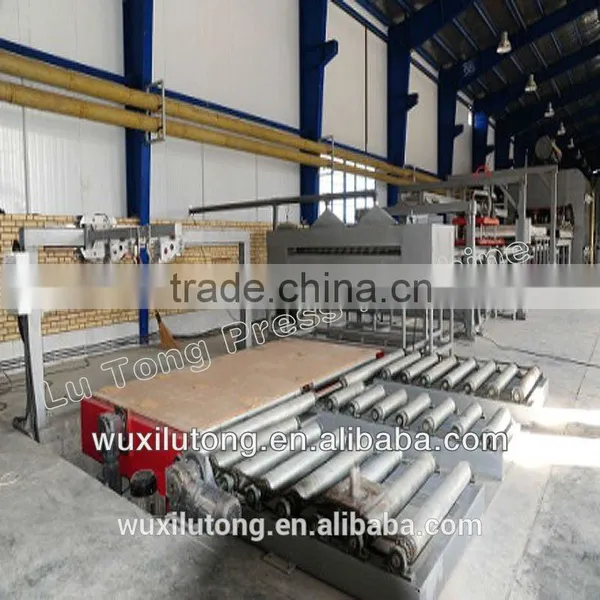

2) Loading Belt table
Gross weight: 1000 kg
Function: Worker can lay down the paper with board together, and it will transfer into the press automatically. We using Germany brand Moto.

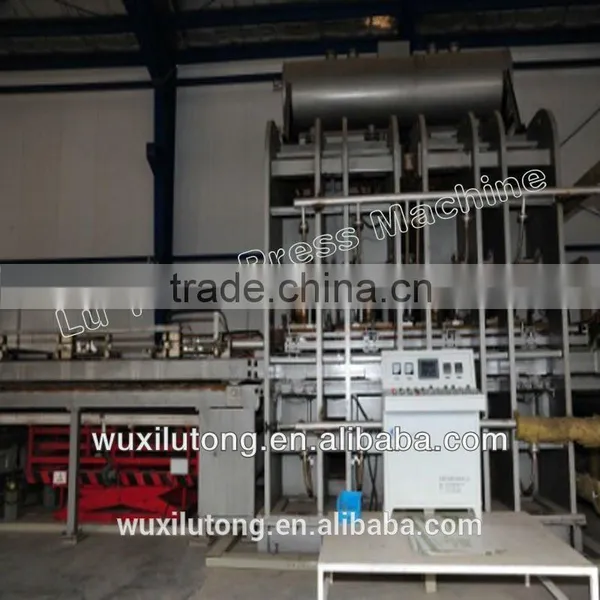

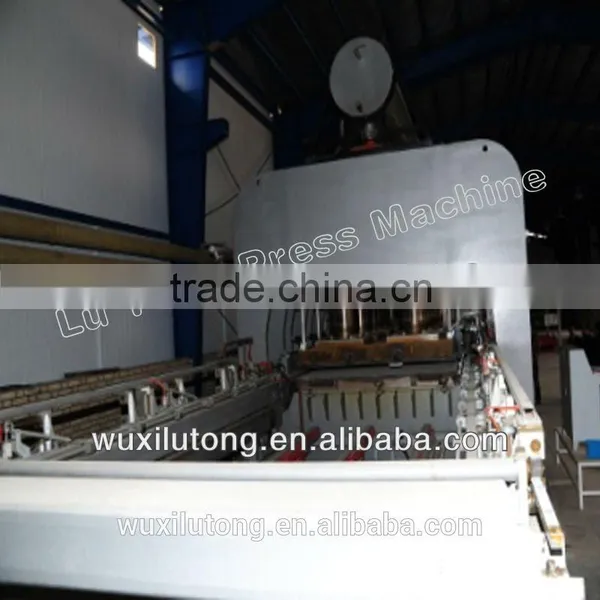

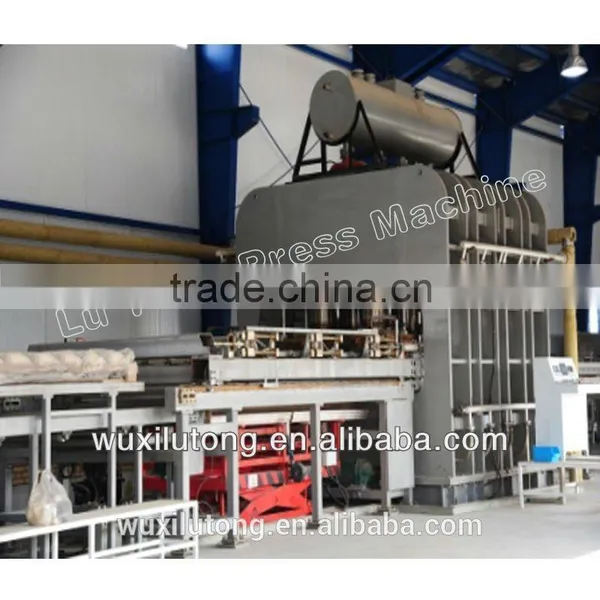

3) Main press
Gross weight: 58000 kg
Function: Laminated the products. With extra support part to enlarge the strength of machine body. Main hydraulic valve was using germany brand. It request cooling system for hydraulic system and secondary recycling heating system for heating plates.
4) Vacuum Unloading system
Gross weight: 2000 kg
Function: After laminated, the vacuum unloading plate will take out the board inside the press. It avoid the scratch of the board and make the worker’s job easy.
5) Unloading lifter
Gross weight: 1000 kg
Function: Lay down the board to the lifter. It can hold in the right position to make the board unloading easily. It was control by the hydraulic system and photoelectricity reply.
6) Cooling System for hydraulic oil(Option)
Gross weight: 400 kg
Function: Cooling down the hydraulic oil’s temperature and extend the lift of hydraulic parts.
7) Secondary recycling heating system (Option)
Gross weight: 500 kg
Function: The pipe system with temperature control valve can keep the temperature correctly and make sure it changed in small Torrance. It was the best solution for heating system.
Company Show
1. About us
2. Product superiority
1.An aging treatment: We finished the main frame after welding pressure after aging treatment,
eliminating the uneven internal stress, significantly improving the life of the press frame.
2.Frame agencies: Internal press now part of the internal stress concentration occurs before is
cut directly after grinding, edge stresses are concentrated easily damaged, and now as CNC machining
centers and milling the surface is very smooth. The improved strength and increased fatigue life, make
life more durable frame.
3.Heat pad: We use an internal temperature of polymer insulation panels instead of epoxy boards,
pressure, heat index was significantly improved, so that insulation pad life expectancy, thus extending
the life of the cylinder.
