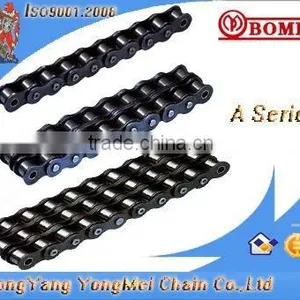

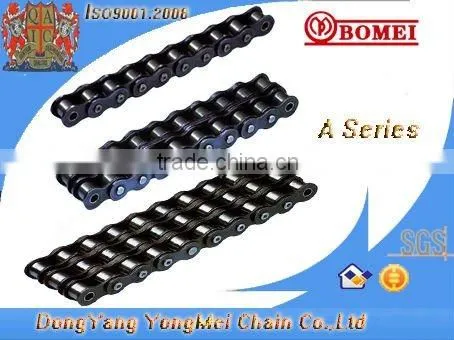

Simplex Roller Chain&bushing Chain

Name: Simplex Roller Chain&bushing Chain
Brand: BOMEI
SKU: 120113981
Availability: InStock

US$ 1 - 20 MOQ: 1000 Meters

Key Specifications

Standard or Nonstandard:

Standard, Standard

Type:

Roller Chain

Material:

Iron

Dongyang Yong Mei Chain Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo /Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Type Roller Chain

Material Iron

Place of Origin Zhejiang, China

Brand Name BOMEI

Model Number A series

Specifications

Certificate of Quality: ISO 9001:2000
08A,10A,12A,16A...... 48A
Materials: 40Mn steel
Color: Dark blue,Bright

ISO KIN/ISO Chain No.	ANSI ANSL Chain No.	Pitch	Roller	Width between inner plates	Pin diameter	Pin length		Lnner plate depth	Plate thick -ness	Ultimate tensile strength	Average tensile strength	weight per meter
		P	d1 max	b1 min	d2 max	L max	Lc max	h2 max	T max	Q min	Q0	q
		mm	mm	mm	mm	mm	mm	mm	mm	kN/LB	kN	kg/m
*03C	*15	4.7625	2.48	2.38	1.62	6.10	6.90	4.30	0.60	1.80/409	2.0	0.08
*04C-1	*25	6.350	3.30	3.18	2.31	7.90	8.40	6.00	0.80	3.50/795	4.6	0.15
*06C-1	*35	9.525	5.08	4.77	3.58	12.40	13.17	9.00	1.30	7.90/1795	10.8	0.33
085-1	41	12.700	7.77	6.25	3.58	13.75	15.00	9.91	1.30	6.67/1516	12.6	0.41
08A-1	40	12.700	7.95	7.85	3.96	16.60	17.80	12.00	1.50	14.10/3205	17.5	0.62
10A-1	50	15.875	10.16	9.40	5.08	20.70	22.20	15.09	2.03	22.20/5045	29.4	1.02
12A-1	60	19.050	11.91	12.57	5.94	25.90	27.70	18.00	2.42	31.80/7227	41.5	1.50
16A-1	80	25.400	15.88	15.75	7.92	32.70	35.00	24.00	3.25	59.70/12886	69.4	2.60
20A-1	100	31.750	19.05	18.90	9.53	40.40	44.70	30.00	4.00	88.50/20114	109.2	3.91
24A-1	120	38.100	22.23	25.22	11.10	50.30	54.30	35.70	4.80	127.00/28864	156.3	5.62
28A-1	140	44.450	25.40	25.22	12.70	54.40	59.00	41.00	5.60	172.40/39182	212.0	7.50
32A-1	160	50.800	28.58	31.55	14.27	64.80	69.60	47.80	6.40	226.80/51545	278.9	1.10
36A-1	180	57.150	35.71	35.48	17.46	72.80	78.60	53.60	7.20	280.20/63682	341.8	13.45
40A-1	200	63.500	39.68	37.85	19.85	80.30	87.20	60.00	8.00	353.80/80409	431.6	16.15
48A-1	240	76.200	47.63	47.35	23.81	90.50	103.00	72.39	9.50	51.30/115977	622.5	23.20
*Bushing chain:d1 in the table indicate the external diameter of the bushing
