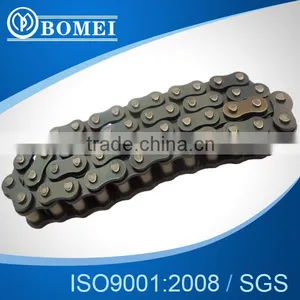

530 Motorcycle Chain
US$ 1 - 2
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Type:
Roller Chain
Material:
Iron
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo/ ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Type
Roller Chain
Material
Iron
Tensile Strength
22.00/4800
Place of Origin
Zhejiang, China
Brand Name
BoMei
Model Number
428H
Specifications
We are produce all sivers motory cycle chain , 420 ,428,428H, 530.Etc| DIN/ISO KIN/ISO Chain No. | Pitch | Roller | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thick -ness | Ultimate tensile strength | Average tensile strength | weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/LB | kN | kg/m | |
| *25H | 6.350 | 3.30 | 3.18 | 2.31 | 8.90 | 9.5 | 6.00 | 1.04 | 4.80/1091 | 5.5 | 0.17 |
| *219H | 7.774 | 4059 | 5.00 | 3.01 | 11.90 | 12.7 | 7.50 | 1.2/1.0 | 6.60/1500 | 7.4 | 0.28 |
| *270H | 8.500 | 5.00 | 4.75 | 3.28 | 13.15 | 8.45 | 1.8/1.4 | 9.80/2227 | 11.0 | 0.33 | |
| *T3F | 9.525 | 6.00 | 9.50 | 4.50 | 18.60 | 9.30 | 1.85/1.48 | 11.80/2682 | 14.1 | 0.61 | |
| 420 | 12.700 | 7.77 | 6.25 | 3.96 | 14.70 | 16.1 | 12.00 | 1.50 | 16.00/3636 | 18.1 | 0.55 |
| 428 | 12.700 | 8.51 | 7.75 | 4.45 | 16.70 | 18.2 | 11.80 | 1.60 | 17.80/4045 | 20.1 | 0.70 |
| 428H | 12.700 | 8.51 | 7.85 | 4.45 | 18.80 | 19.9 | 11.80 | 2.03 | 20.60/4682 | 23.4 | 0.79 |
| 428DS | 12.700 | 8.51 | 7.94 | 4.45 | 17.90 | 19.3 | 12.00 | 1.85 | 18.62/4232 | 21.0 | 0.76 |
| 520 | 15.875 | 10.16 | 6.25 | 5.08 | 17.50 | 19.0 | 15.09 | 2.03 | 26.50/6022 | 29.7 | 0.89 |
| 520H | 15.875 | 10.16 | 6.25 | 5.08 | 19.30 | 20.8 | 15.09 | 2.42 | 26.50/6022 | 31.5 | 1.10 |
| 530 | 15.875 | 10.16 | 9.40 | 5.08 | 20.30 | 21.9 | 15.09 | 2.03 | 26.50/6022 | 29.7 | 1.06 |
| *Bushing chain:d1 in the table indicate the external diameter of the bushing | |||||||||||
Packing : Color Pacing ,OEM
Delivery time: 25 to 30 Days
