Prefabricated Housing

Prefabricated Housing thumbnail-1
Prefabricated Housing photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
prefabricated housing
Model Number:
portable house-19
Contact Supplier Request Quote Chat Now
Tianjin Port Free Trade Zone Ruixinheping International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Xingang Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Tianjin, China
Brand Name prefabricated housing
Model Number portable house-19
Material Sandwich Panel
Use Carport, Hotel, House, Other, Office, Shop, Toilet, Villa, Warehouse, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant, prefabricated housing

Specifications

prefabricated housing
1. Portable & movable, flexible size
2. Quick assemble, light steel, kit package
3. ISO,CE certificatio

     prefabricated housing



Description:



  1. High mobility:

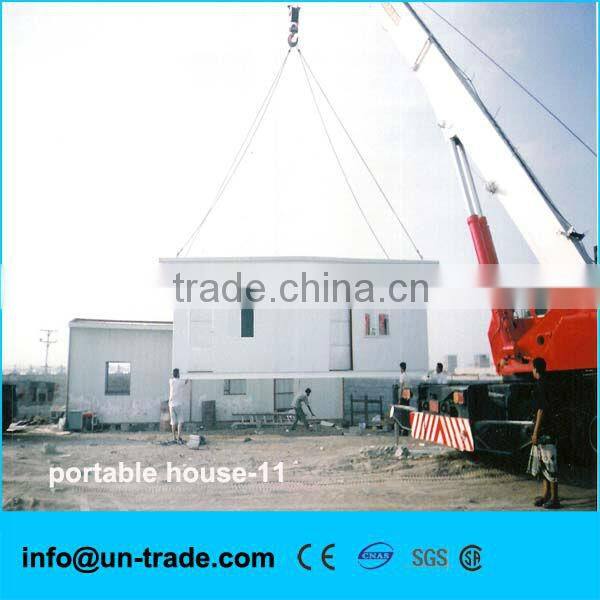

Completed lifting or pulling by skidding system which make the house PORTABLE.

Portable & movable buildings are the best solution where speed, budget, and limited or temporarily-available space are issues.

  1. Light and reliable structure:

The strong steel chassis are made of completed galvanized RHS and skidding.

Better quality of anti-rust and especially for seaside and high humidity area.

  1. Time and Labor saving and Easy assembly:

No need special trained labor for installation.

No need lifting machine, light insulated wall and roof system.

  1. Wide applications:

Outdooroffices, storage,classroom,portable bathrooms and ablution, accommodation such assleepoutsfor sale and hire.

  1. Cost-effective and Easy transportation way:

About 150m2 / 40’HQ loading.





prefabricated housing



Specifications:



Size:

Dimension

mm

Length

Less than 12m

Width

Less than 4m

Height

2.4 / 2.6m

Loading

140m2 per 40’HQ container

Material List:

Frame
  1. Cold formed steel profiles in a thickness of 3 to 4mm (bottom rails)
  2. Surface: Galvanized + Painting
  3. Connection: By bolts
  4. Floor frame: Skidding + Base beam (RHS) + C-profile Purlin
  5. Roof frame: Steel truss / beam + purlin

Floor
  1. Floor: multiply plywood in a thickness of 15mm; water proof, environment friendly.
  2. Permitted loading: 2.50 KN/m²
  3. Vinyl / PVC floor covering : 1.2mm (option item)

Wall
  1. Exterior cladding: profiled galvanized sheet metal, film overlaid, 0.5 mm.
  2. Interior cladding: profiled galvanized sheet metal, film overlaid, 0.5 mm.
  3. Insulation: 75mm EPS (density 13 kg/m 3 )
  4. Load bearing capacity: 0.6 KN/m²
  5. Coefficient of thermal conductivity = 0.039W/m²K
  6. R value (Thermal Resistance) = 2.5m2K/W

Roof
  1. External covering:EPS sandwich panel 75mm with double sides 0.5mm galvanized color steel sheet;
  2. Permitted loading: 1.00 KN/m²
  3. Roof style: one slope (flat roof) or gable slope ( 2 slope) ;
  4. Ceiling (option for 2slope roof): 10mm PVC ceiling or plaster ceiling.

Window

PVC sliding window with double glass

Door

Steel security door





Applications:





Outdoor / remote area office, working camping, laboratory,

temporary classroom or hospital …

labor accommodation or sleepouts for sale or hire …

Storage, portable bathroom or toilet, public ablution …





Competitive Advantage:



  1. Quick smart installation design.
  2. Quick and easy to move from one site to another site.
  3. Low cost: save cost in installation and shipping.
  4. Cheaper than folding container house or sea shipping house
  5. Long life span: Galvanized and strong steel frame.
  6. Extensive and flexible application.

 prefabricated housingprefabricated housingprefabricated housing





modular home

Last Update Time:2014-03-14
