1000w Grid-tie Inverter 1kw Solar Grid Tie Inverter Ul1741

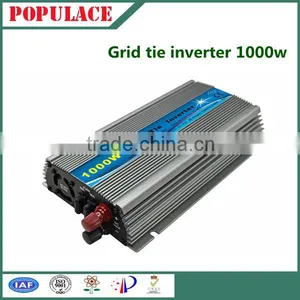

1000w Grid-tie Inverter 1kw Solar Grid Tie Inverter Ul1741 thumbnail-1
1000w Grid-tie Inverter 1kw Solar Grid Tie Inverter Ul1741 photo-1
US$ 60 - 90 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
OEM
Model Number:
PG-1000W
Contact Supplier Request Quote Chat Now
Fuan Kaiyue Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name OEM
Model Number PG-1000W
Output Power Other, 1000w
Output Type Single
Size 31 x 16.5 x 5.3CM
Weight 2.3KG
Input Voltage 10.8-28V/20-45V
Output Voltage 120v(90-140v)/230v(190v-260v)
Type DC/AC Inverters
Output Frequency 50Hz/60Hz
Output Current Load
Product Description

1000w grid-tie inverter 1kw solar grid tie inverter ul1741

1000w grid-tie inverter 1kw solar grid tie inverter ul1741

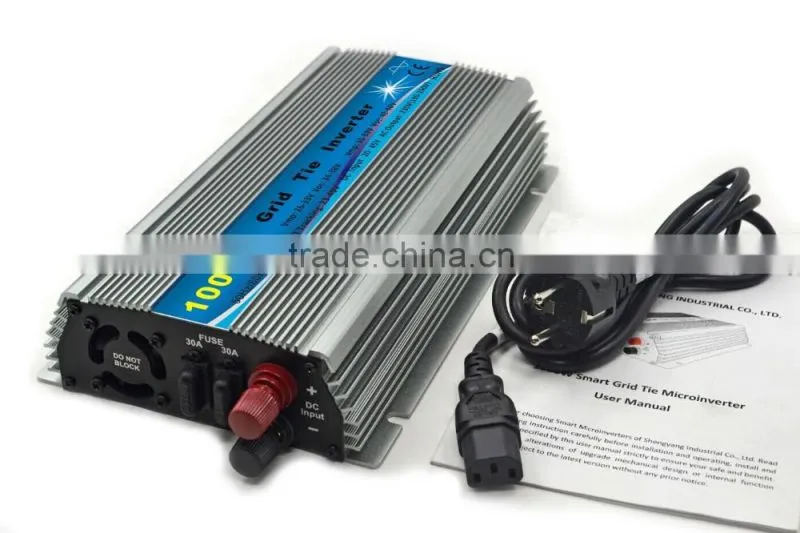

Detail photo

1000w grid-tie inverter 1kw solar grid tie inverter ul1741



Product Description:

1.Fast delivery

2.Strong package

3.2 Years warranty

4.Efficient service

5.Small order accepted

6.Factory directly sale



Products Features:

·Smart size, light body, safe & environment-friendly.

·100% real Continuous Power output.

·Input & output isolation

·Multiple protection circuit for Low voltage / Over voltage / Overload / Short-circuit / Overheat etc

·USB output port: 1A



Specification:



       Rated Power

1000W

        Solar Panels

36cells-Vmp:18-21V:Voc:20-24V

60cells-Vmp:26-30V:Voc:34-38V

72cells-Vmp:35-39V:Voc:42-46V

       DC Input Range

10.8-30VDC

20-45VDC

       MPPT Voltage

15-22VDC

24-38VDC

     DC MAX. Current

70A

45A

          AC Output

120VAC(90-140VAC)               230VAC(190-260VAC)

          Frequency

50Hz/60Hz(Auto control)

        Power Factor

>98%

               THD

<5%

         Phase Shift

<2%

          Efficiency

120VAC(90-140VAC) Version

       Peak Efficiency

85

88

      Stable Efficiency

83

86

          Efficiency

230VAC(190-260VAC) Version

      Peak Efficiency

88

88

Stable Efficiency

83

86

Protection

Islanding; Short-circuit; Low Voltage;

Over Voltage; Over temperature Protection

Working Temperature

‘-20℃-65℃

Working Humidity

0%~90%RH non-condensing

Waterproof

Indoor design

Show

Luminous Diode(LED)

Cooling

Fan

Stand-by Power

<1W

EMC

EN61000-6-3:2007 EN61000-6-1:2007

Grid Disturbance

EN 50178+EN 62109-1+VDE0126-1-12

Grid Detection

DIN VDE 1026 UL1741

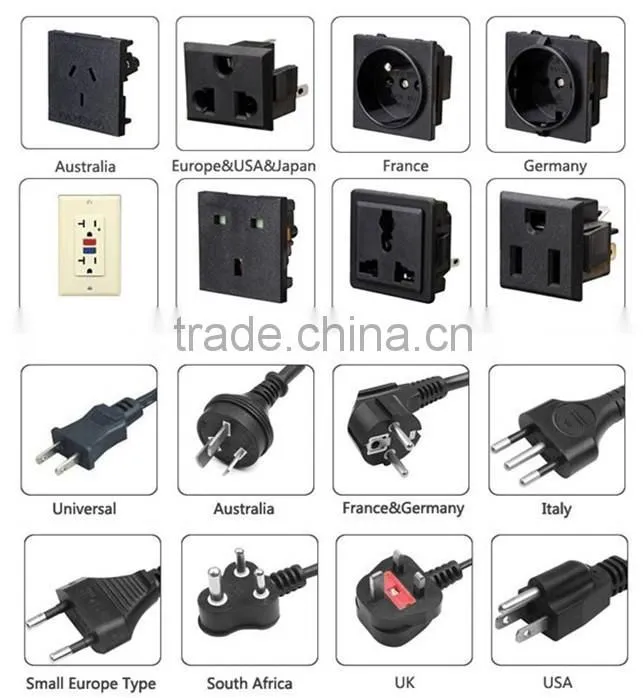

We accept customerized outlet socket as follows:
1000w grid-tie inverter 1kw solar grid tie inverter ul1741



Packaging & Shipping

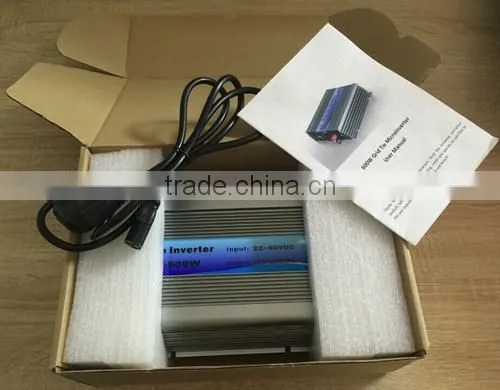

Packaging

1000w grid-tie inverter 1kw solar grid tie inverter ul1741

Shipment Term

1000w grid-tie inverter 1kw solar grid tie inverter ul1741



Our Services



If you can cooperate with us, we will be honored and you will benefit from:

- The good construction  warranty-2 years

- Your client satisfied on the right schedule and quality

- You can get a good reputation from your market and obtain more orders

- Our professional service before and after sale

- The reasonable price

- Any question from you are welcome and will be replied in 24 hours

Company Information

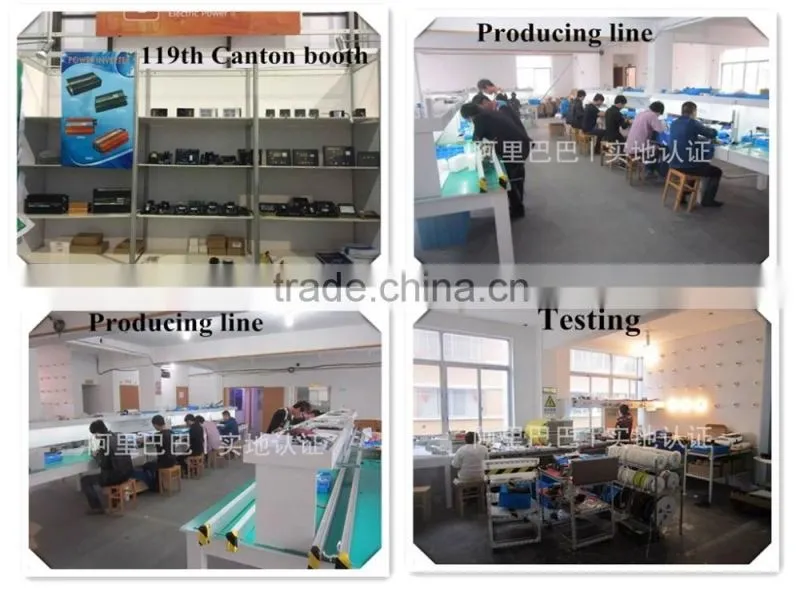

 Our Factory



1000w grid-tie inverter 1kw solar grid tie inverter ul1741

FAQ

1.Q:How do I choose the size of the inverter?
    A:Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
        Notice: resistive load: you can choose the same power as the load.
        Capacitive loads: according to the load, you can choose 2-5 times power.
        Inductive loads: according to the load, you can choose 4-7 times power.

2.Q:How to calculate the load of working hours requires configuration of the battery size?
   A:We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss, so this is only a reference value:
       Work hours = battery capacity * battery voltage *0.8/load power (H= AH*V*0.8/W)

3.Q:What should be noticed when installing inverter?
   A:Put the product in a place where is well ventilate,cool, dry and water-proof. Pls do not stress and do not put foreign objects into the inverter.Rember to turn on the inverter before turn on the appliance.



Relative Products

1000w grid-tie inverter 1kw solar grid tie inverter ul1741 1000w grid-tie inverter 1kw solar grid tie inverter ul1741 1000w grid-tie inverter 1kw solar grid tie inverter ul1741 1000w grid-tie inverter 1kw solar grid tie inverter ul1741

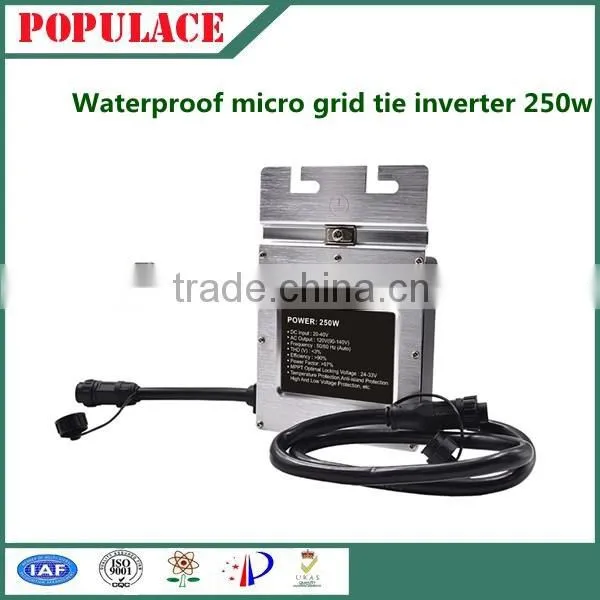

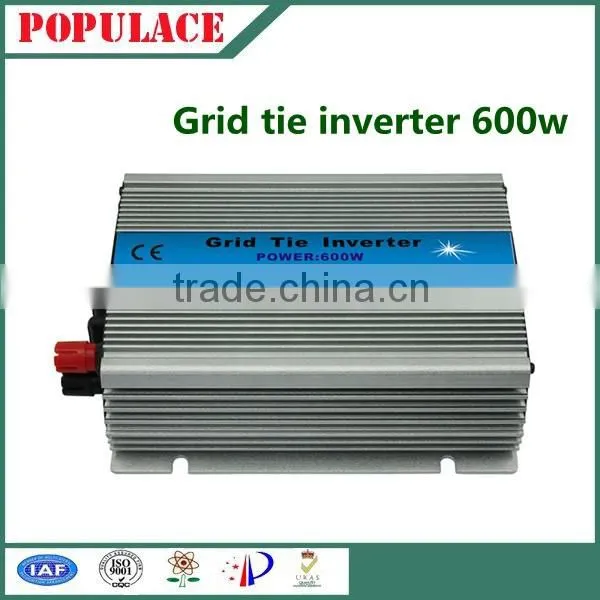

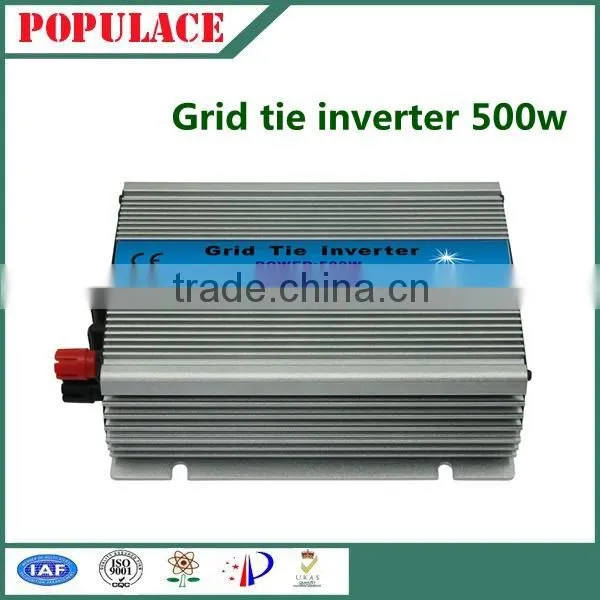

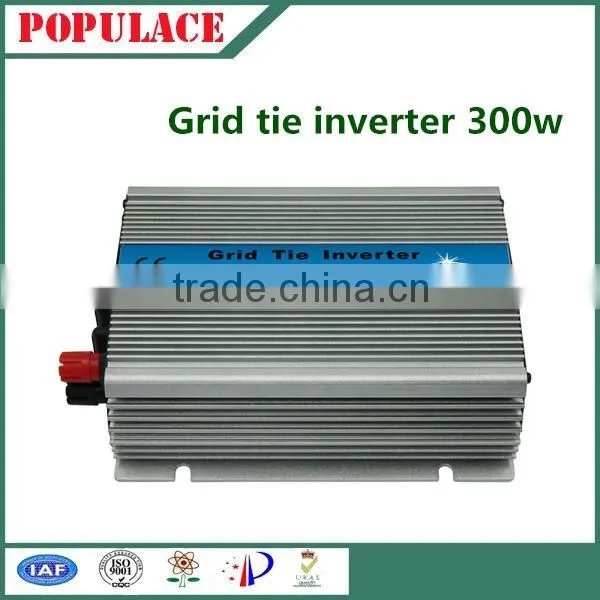

Grid tie solar inverter 300w Grid tie solar inverter 500w Grid tie solar inverter 600w Waterproof micro grid tie inverter 250w
