Home > Metallurgy, Mineral & Energy > Steel & Products > Flat Steel > 2083 ISO-B Mould Steel Plate

2083 ISO-B Mould Steel Plate

Name: 2083 ISO-B Mould Steel Plate
Brand: YUFANG
SKU: 120099485
Availability: InStock

2083 ISO-B Mould Steel Plate thumbnail-1

US$ 3,300 - 5,000 MOQ: 10 Tons

Key Specifications

Get Latest Price

Grade:

SCM414 Mould Steel

Standard:

AISI, ASTM, DIN, GB, JIS

Thickness:

20~400mm

Contact Supplier Request Quote Chat Now

Dongguan Yufang Steel Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Grade SCM414 Mould Steel

Standard AISI, ASTM, DIN, GB, JIS

Thickness 20~400mm

Width 205~2000mm

Length 2000~5800mm

Place of Origin Guangdong, China

Brand Name YUFANG

Model Number SCM414/1.2083/HPM38/M310

Application plastic mould steel

Technique Hot Rolled

Special Use Mold Steel

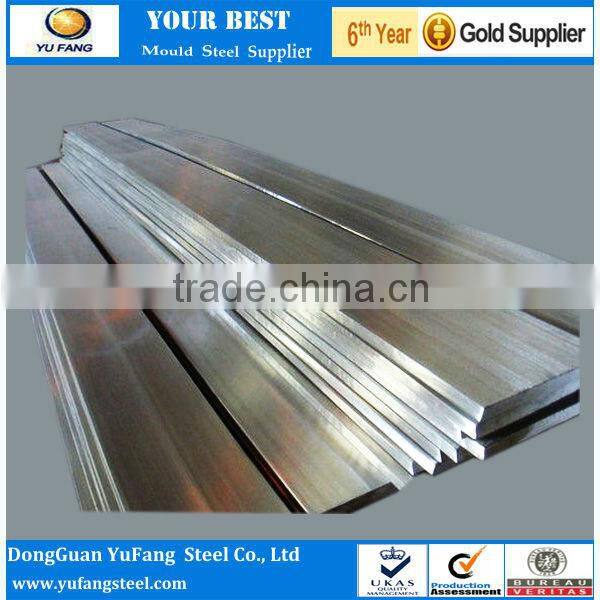

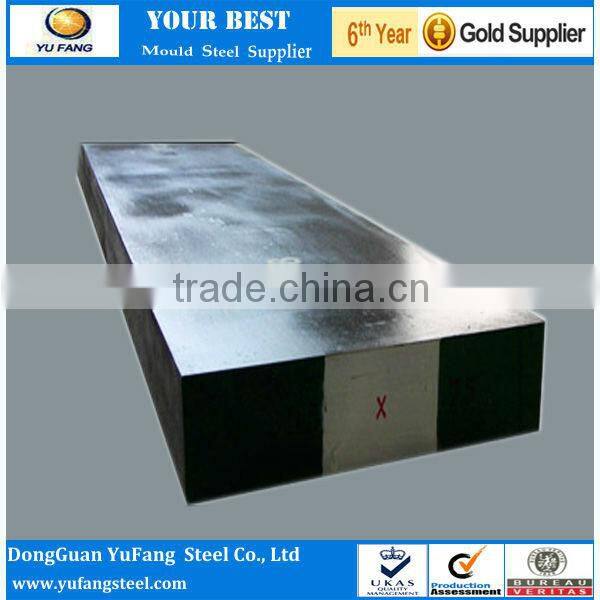

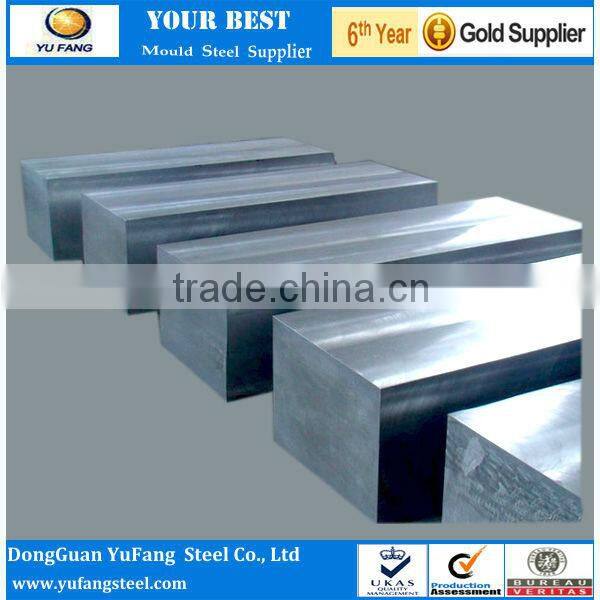

2083 ISO-B Mould Steel Plate

2083 ISO-B Mould Steel Plate Made In China

1. Chemical composition and comparable steel:

C:0.36-0.42 Si:<1.0 Mn:<1.0 Cr:12.5-14.5 P<0.02 S<0.005

comparable steel :SCM414 1.2083 2083 ISO-B M310 HPM38 S-Star

2. Hardness:

Hardened hardness: HRC=48~52

3. Size specification

l Thickness: 16~400MM

l Width: 185~2200MM

l Length: 1500~2000MM

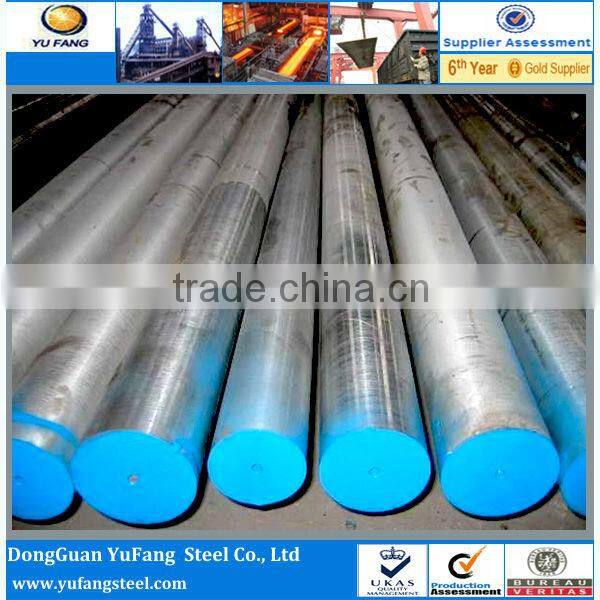

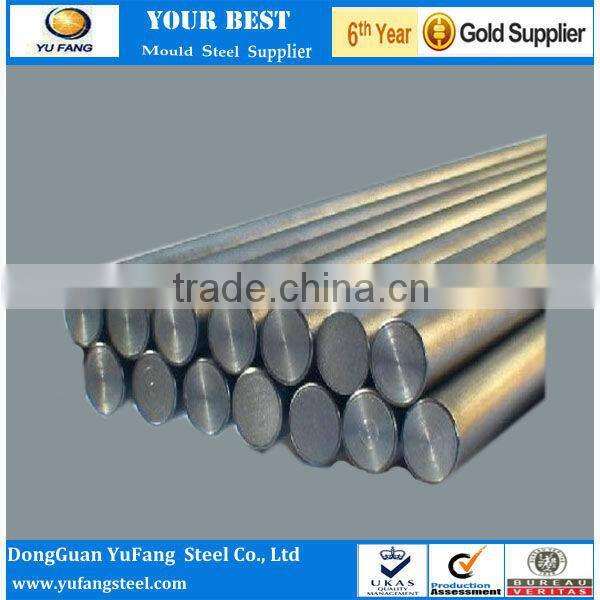

l Round bar: 30~350MM

And we can also provide the size you required.

4. Surface condition: Black surface / Grinding / Polishing / Milling / Machined……

5. shape:flat / round bar / square bar / sheet / plate ……

6. Heat treatment: Normalized / Annealed / Quenched / tempered

7. Inspection: Ultrasonic test according to SEP 1921-84 Gr3, Class C/c or D/d

8. Delivery condition:

l Hot rolled or forging

l Black surface / Grinding / Polishing / Milling / Machined

l Hardened & tempering & annealing

l EAF or ESR material

9. Payment terms:

20% advance by TT; Balance pay before the shipment against shipping documents or irrevocable LC at sight

10. Delivery time: 3-15 days after advanced payment

11. Material character

l Good mechanical property

l High quenching

l Make surface have equal hardness after deal with it

l Nice polishing

l Low roughness

l Normally, it should make the heat-treatment to harden condition before use

l It can be used directly after the mould machined

l Deal with surface induration when it necessary

12. Export Market Distribution:

Market	Revenue(Previous Year)	Total Revenue (%)
North America	USD 214,283	1.19
South America	USD 310,660	1.73
Eastern Europe	USD 224,190	1.25
Southeast Asia	USD 1,393,351	7.76
Mid East	USD 330,185	1.85
Eastern Asia	USD 55,220	0.31
Domestic Market	USD 15,418,994	85.91

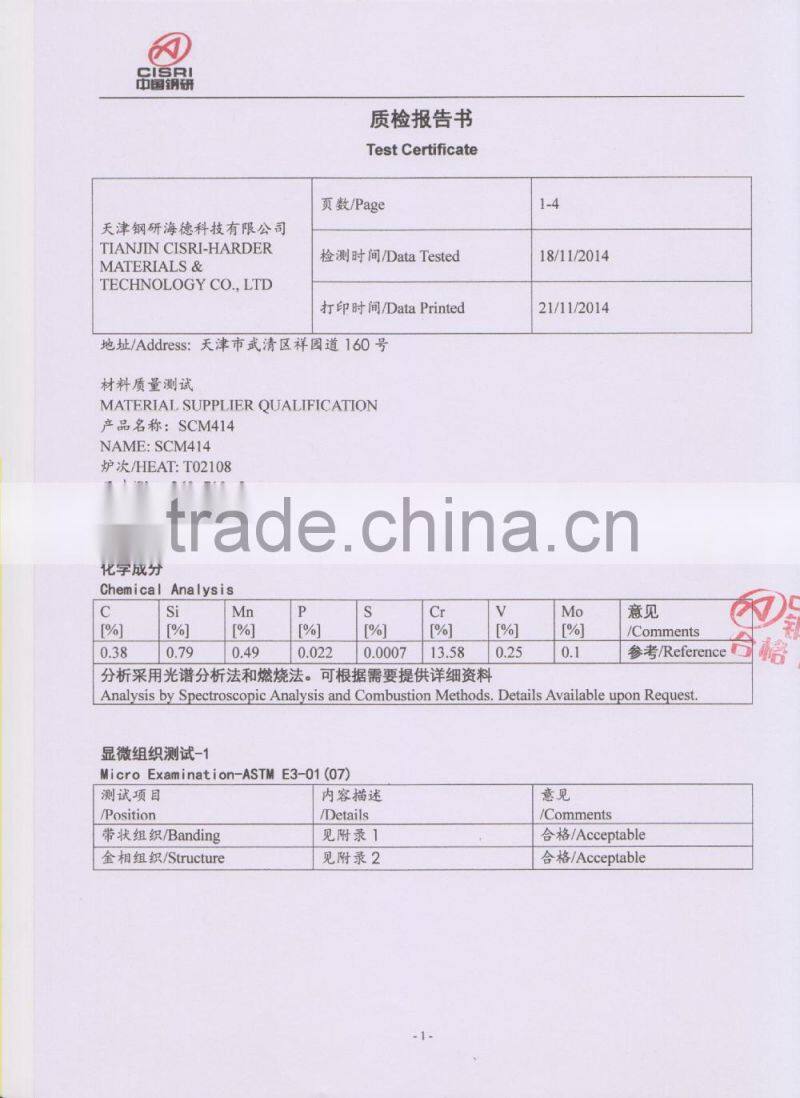

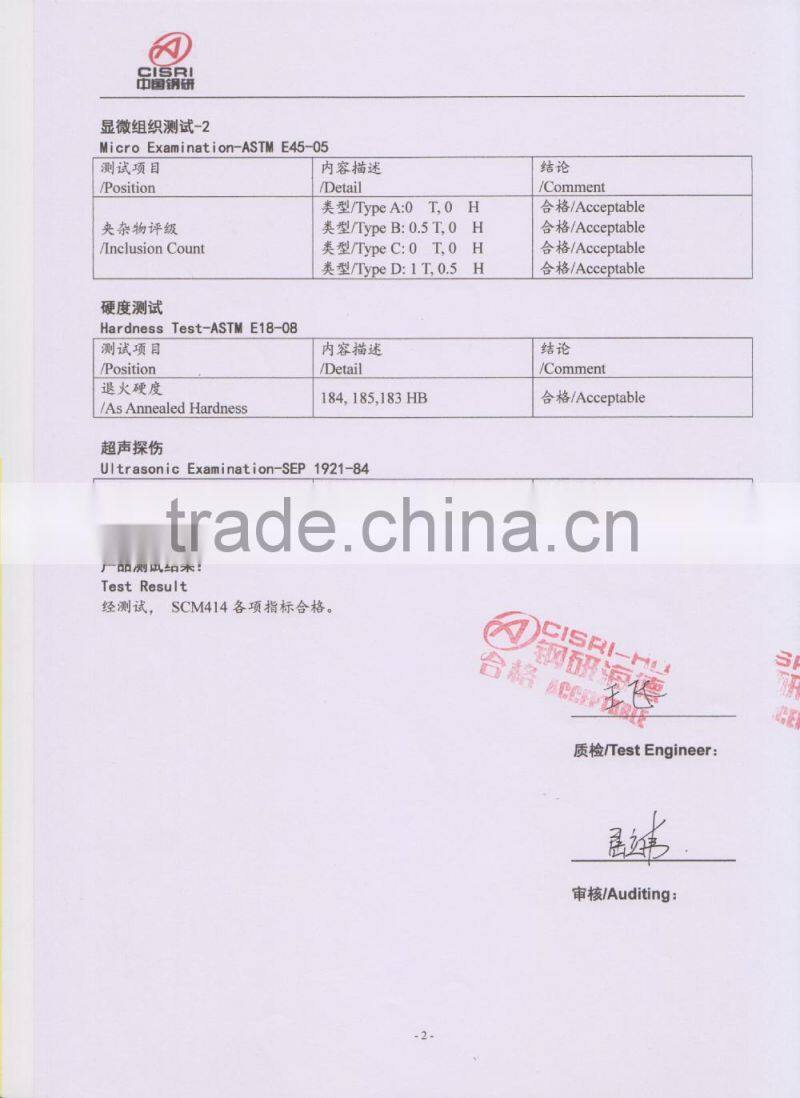

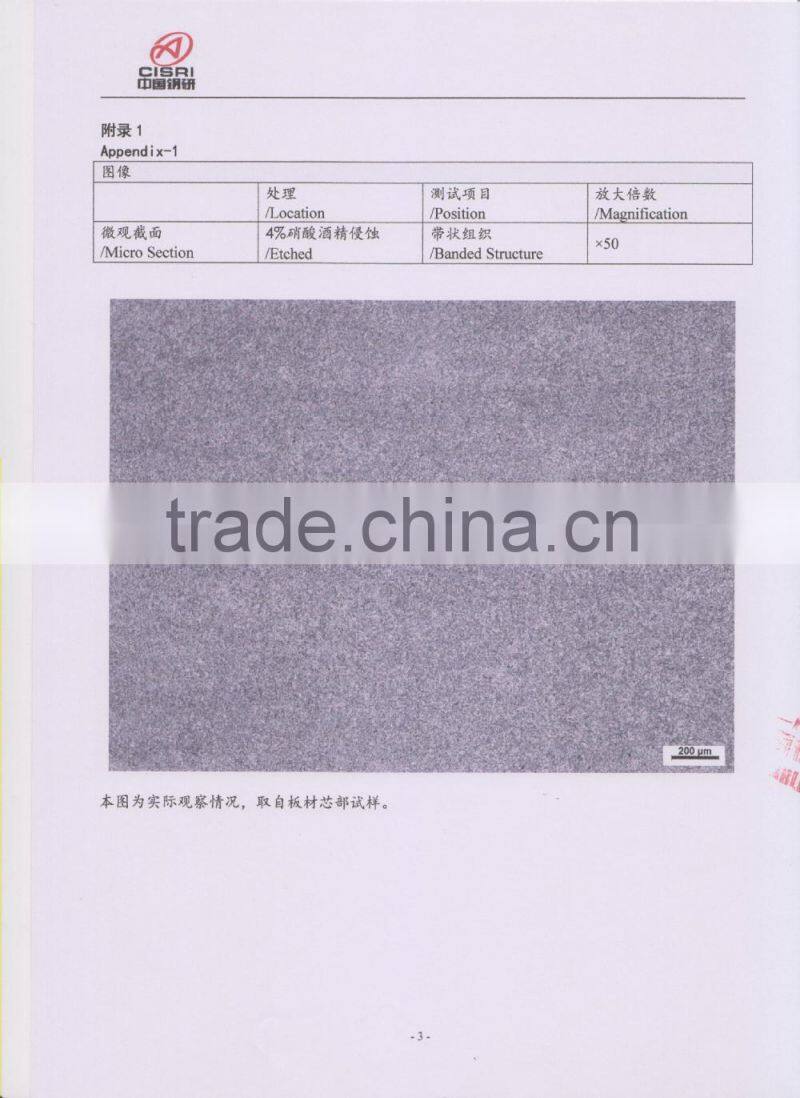

13. Test report:

14. The main products in our company:

	GB China	AISI USA	JIS Japan	DIN German	SS Sweden	NF French
Plastic mould steel	3Cr2Mo	P20		1.2311	638
	3Cr2NiMo	P20+Ni		1.2738	718
	42CrMo	4140	SCM440	1.7225
	9CrWMn	O1	SKS3	1.2510	DF-3	90MnWCrV5
	4Cr13	420		1.2085	S136
	3Cr17Mo			1.2316
	10Ni3MnCuAl	P21	NAK80	1.2735
Hot work mould steel	5CrNiMo	L6	SKT4	1.2714
	4Cr5MoSiV1	H13	SKD61	1.2344	8407
	4Cr5MoSiV	H11	SKD6	1.2343
Cold work mould steel	Cr12	D3	SKD1	1.2080
Cold work mould steel	Cr12MoV	D5		1.2601
