Specifications
Steel Material 1.2738,7181.Hot-rolled or Forging,Black Surface
2.100% UT pass
3.Dongguan Top10 Steel Factory
Steel Material 1.2738,718
| Comparable steel | DIN | AISI | ASSAB | GB | |||||
| 1.2738 | P20+Ni | 718 | 3Cr2NiMnMo | ||||||
| Size Specification | Round Bar | Diameter | Length | ||||||
| 60-300mm | 2000-5800mm | ||||||||
| Flat Bar | Thickness | Width | Length | ||||||
| 20-400mm | 200-2200mm | 2000-5800mm | |||||||
| Process | EAF + LF + VD + HOT ROLLED + Heat Treatment (optional) | ||||||||
| Heat Treatment | Normalized / Annealed / Quenched / tempered | ||||||||
| Delivery Condition | 1). Hot rolled or Forging;Black Surface/Machined;Hardened 2). Hardness:30~38HRC |
||||||||
| Characteristics | Good polishing and photo-etching properties, good machinability, high purity and good homogeneity, uniform hardness | ||||||||
| Application | Used for various large-sized or medium-sized precision plastic mould and low melting point alloy parts,like tim,zinc and Lead alloy casting mould. | ||||||||
Chemical Composition(For Reference Only):
|
C |
Si |
Mn |
Cr |
Mo |
Ni |
P&S |
1.2738 |
0.35~0.46 |
0.20~0.40 |
1.30~1.60 |
1.80~2.00 |
0.15~0.25 |
0.90~1.20 |
≤0.035 |
718 |
0.32~0.40 |
0.20~0.80 |
1.00~1.50 |
1.70~2.00 |
0.25~0.40 |
0.85~1.15 |
≤0.03 |
3Cr2NiMnMo |
0.36~0.42 |
0.20~0.60 |
1.00~1.50 |
1.40~2.00 |
0.20~0.40 |
0.80~1.20 |
|

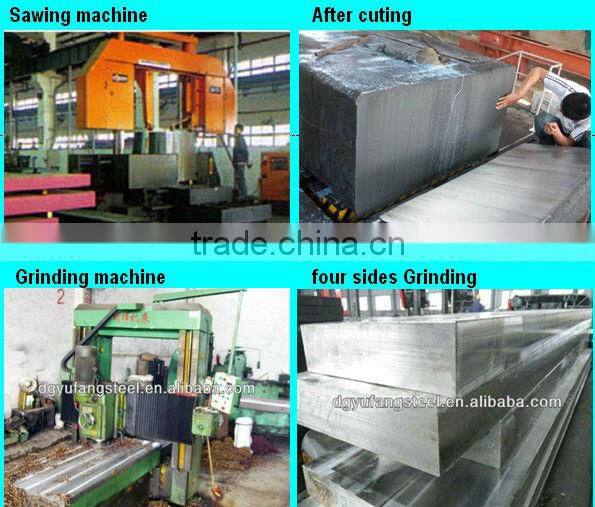

Cut the Steel and sides grinding

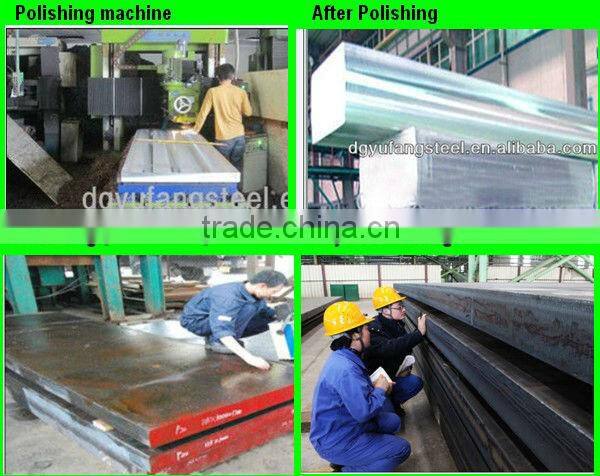

Polish and UT test

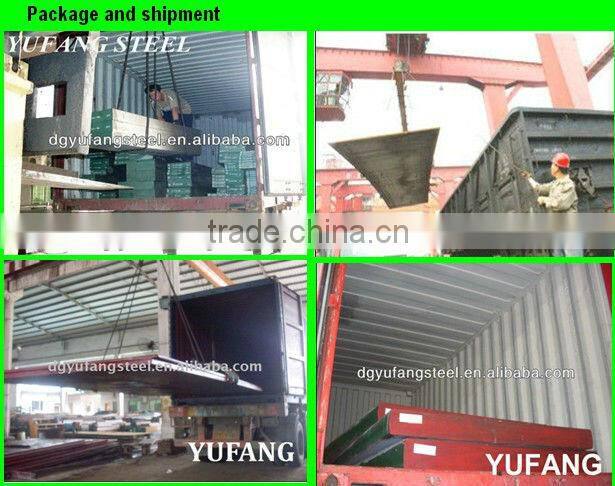

Pack and Shipment

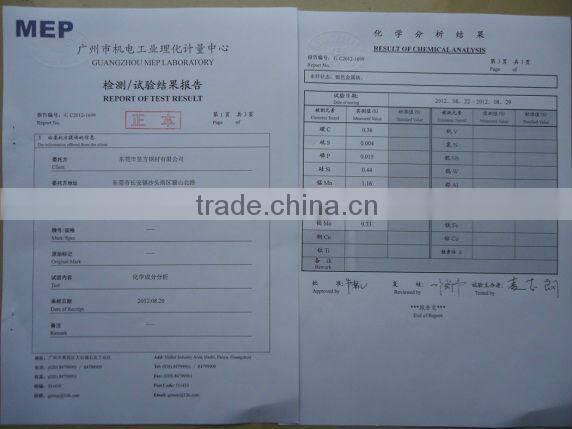

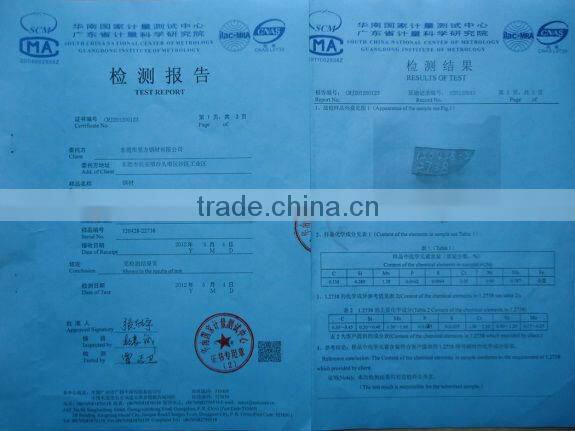

Test report
Contact Us:
The main products we Supply:
Standard |
GB (China) |
DIN (German) |
ASTM (USA) |
JIS (Japan) |
SS (Sweden) |
Cold work |
Cr12 |
1.2080 |
D3 |
SKD1 |
|
|
C12MoV |
1.2601 |
D5 |
|
|
|
Cr12Mo1V1 |
1.2379 |
D2 |
SKD11 |
|
Hot work |
5CrNiMo |
1.2714 |
L6 |
SKT4 |
|
|
4Cr5MoSiV1 |
1.2344 |
H13 |
SKD61 |
8407 |
|
4Cr5MoSiV |
1.2343 |
H11 |
SKD6 |
|
Plastic Tool steel |
3Cr2Mo |
1.2311 |
P20 |
|
618 |
|
3Cr2NiMo |
1.2738 |
P20+Ni |
|
718 |
|
42CrMo |
1.7225 |
4140 |
SCM440 |
|
|
4Cr13 |
1.2083 |
420 |
|
S136 |
|
3Cr17Mo |
1.2316 |
|
|
|
|
10Ni3MnCuAl |
1.2735 |
P21 |
NAK80 |
|
Carbon steel |
45# |
1.1191 |
1045 |
S45C |
|
We are directly factory,can ensure the quality and price,can be your stable you Supplier !!!
