Help CenterHot Work Steel DIN1.2080 Cr12 D3
Related Products
Specifications
hot work steel DIN1.2080 Cr12 D32.Hot rolled, black, Hardness or tempered.
3.Annealing hardness HBS:217-269
4.Wholesale
hot work steel DIN1.2080 Cr12 D3, wholesale price
Comparable steel
AISI/SAE |
DIN |
W.Nr. |
AFNOR |
JIS |
BS |
SIAU |
GB,YB |
D3 |
X210Cr12 |
1.2080 |
Z200C12 |
SKD1 |
D3 |
K12 |
- |
Chemical Compostion:
C |
Mn |
Si |
Cr |
V |
Mo |
P |
S |
1.90-2.20 |
0.15-0.45 |
0.10-0.40 |
11.0-12.0 |
- |
- |
≤0.03 |
≤0.03 |
Isothermal annealing:
- Heat to 850°Chold for 1/2 hour to 1 hour;
- Furnace cooling to 770°C and hold at temperature for at least 10 hours;
- Cool by 10°C /h to 720°C;
- Cooling in air.
Stress relieving:
To be carried out after machining and before the final heat treatment.
- Heat to 650-700°C, hold for 4/6 hours:
- Furnace cooling to 330-350°C;
- Cooling in air.
Hardening:
- Initial preheating to 350-450°C;
- Second preheating to 750-850°Cin salt bath at 850°C;
- Austenitizing at 960-100°C;
- Cooling in fluid oil.
Quenched hardness: 64-65 HRC

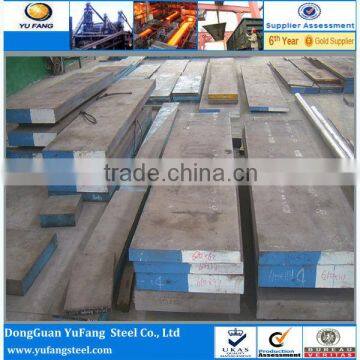

Delivery condition:
- Hot rolled or forging.
- EAF or ESR material
- Black or machined surface.
- Annealing, hardness: HBS:217-269

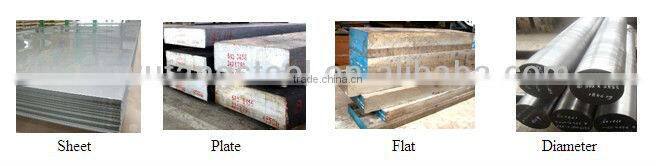

Form of Supply
Specification:
Thickness: 16/18/20……385/390/395/400MM/ Width: 185/225/250……1800/2000/2200MM/Length: 2000-5800MM
character:
1. Good mechanical property, make surface have equal hardness after deal with it;
2. Nice polishing, mini roughness on the surface, deal with induraion in advance.
3. Can be used directly after the mould machined.
Quality Assured Supply:
1.2379 tool steel is supplied in accordance with our ISO 9001 : 2008 registration.
Application:
1. Typical applications include punching and blanking dies for stainless steel sheet, brass, copper, zinc and hard abrasive materials generally.
2. Other application suitable for this tool steel include deep drawing dies, cupping dies, forming dies, sheet metal forming rolls, shear blades for strip and sheet including flying shears, cold extrusion dies, broaches, plug gauges, ring gauges, master hobs for cold hobbing plastic moulds, cut moulds for plastics, special taps, straybolt taps, brick and tile mould liners.
YUFANG main steel list
Standard |
GB |
DIN |
ASTM |
JIS |
SS |
Cold work |
Cr12 |
1.2080 |
D3 |
SKD1 |
|
C12MoV |
1.2601 |
D5 |
|
|
|
Cr12Mo1V1 |
1.2379 |
D2 |
SKD11 |
|
|
Hot work |
5CrNiMo |
1.2714 |
L6 |
SKT4 |
|
4Cr5MoSiV1 |
1.2344 |
H13 |
SKD61 |
8407 |
|
4Cr5MoSiV |
1.2343 |
H11 |
SKD6 |
|
|
Plastic steel |
3Cr2Mo |
1.2311 |
P20 |
|
618 |
3Cr2NiMo |
1.2738 |
P20+Ni |
|
718 |
|
42CrMo |
1.7225 |
4140 |
SCM440 |
|
|
4Cr13 |
1.2083 |
420 |
|
S136 |
|
3Cr17Mo |
1.2316 |
|
|
|
|
10Ni3MnCuAl |
1.2735 |
P21 |
NAK80 |
|
|
Carbon |
45# |
1.1191 |
1045 |
S45C |
|
Contact Yufang Steel with your enquiris for D3/ 1.2080/SKD1 steel sheet, round bar diameter, sawn blanks, retangular and square bar.
