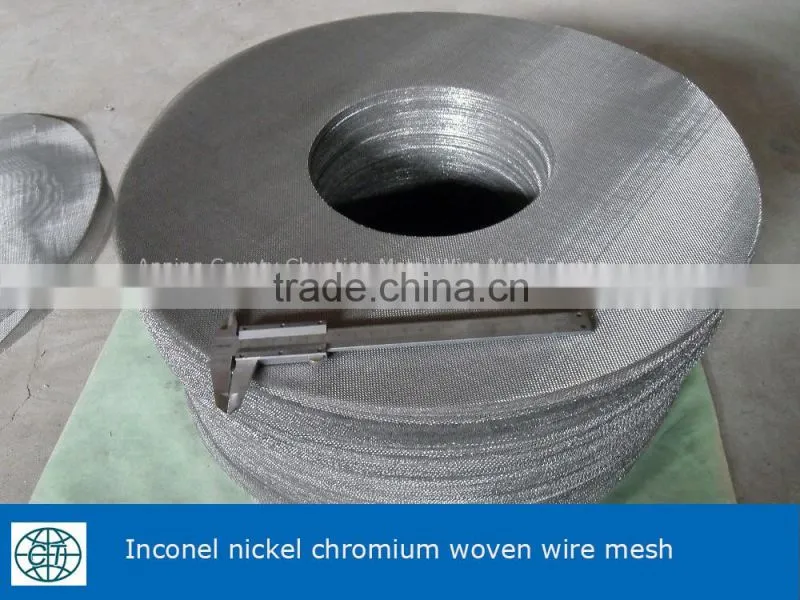

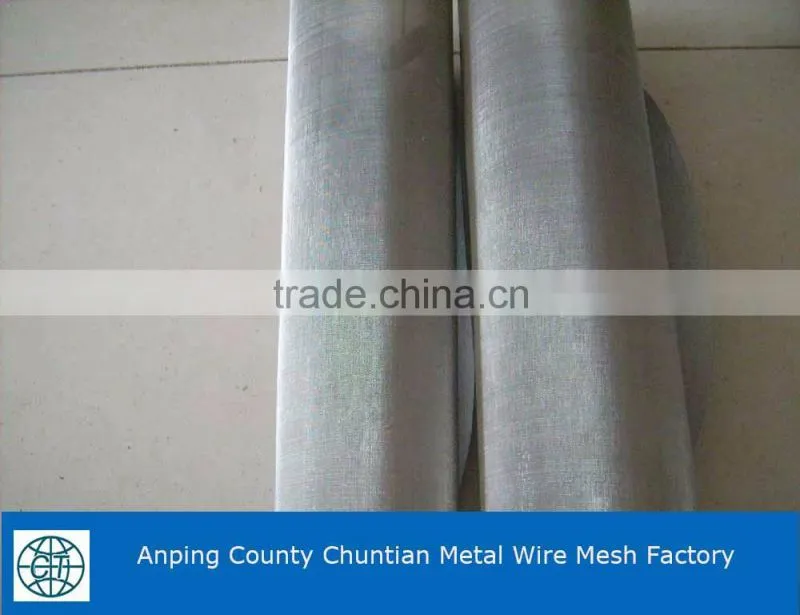

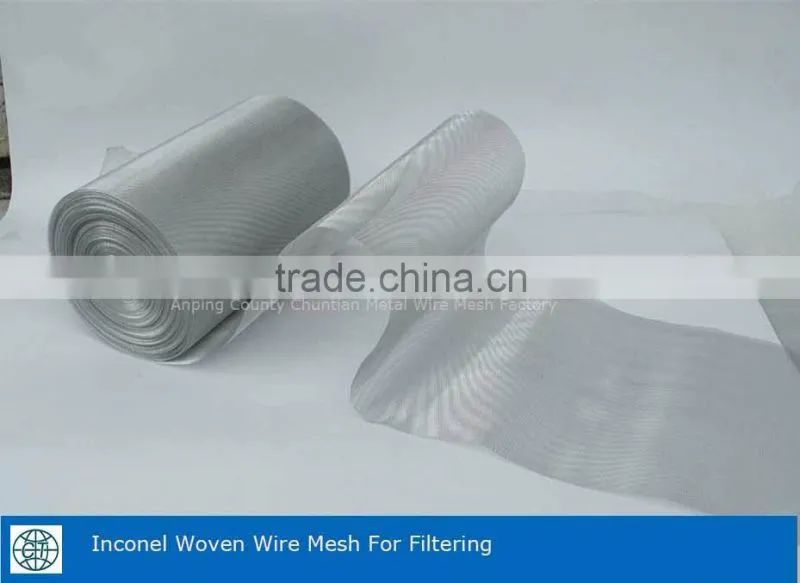

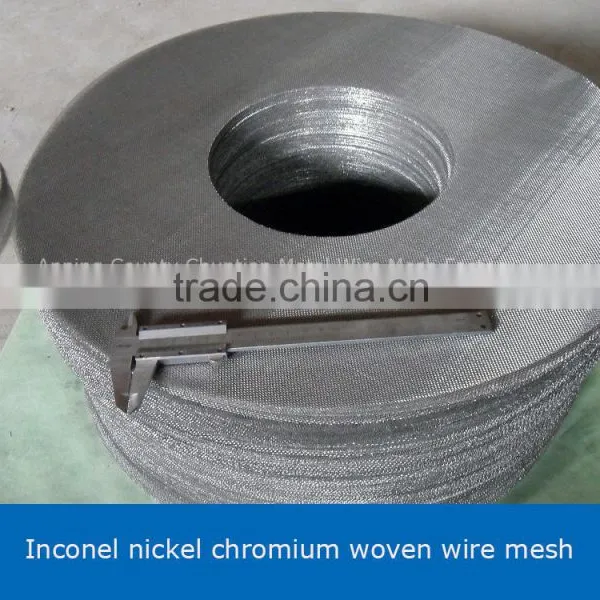

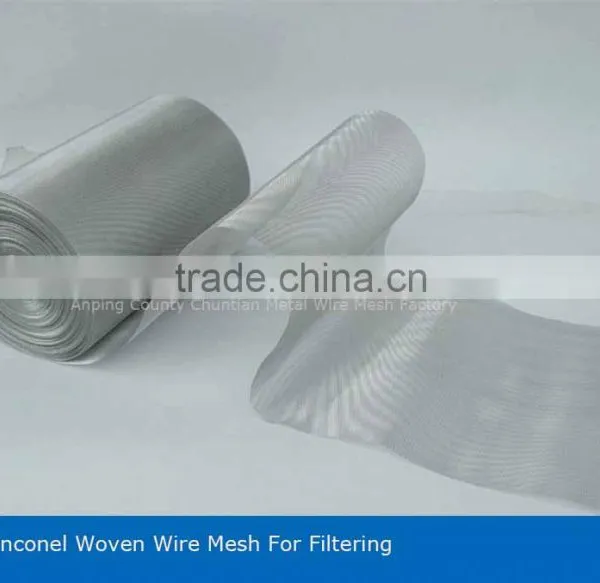

Inconel wire mesh
We supplies Inconel 600 Wire mesh from 2mesh to 200mesh. Inconel wire mesh is nickel-chromium alloy ,which is nickel base alloy.
Material Grade:
Inconel 600, 601,617, 625,718
Weave Pattern:
plain weave, twill weave
Packing:
waterproof paper + plastic cloth + wooden carton.
Feature:
Inconel wire cloth can be used in the temperature range from low temperature to 1093 degrees Celsius.No magnetic,oxidation resistance, very good cold-formed function,good weld ability, good corrosion resistance to the reducing environment of the medium intensity.
Inconel 600 Chemical Composition %
C |
Mn |
Fe |
Cu |
Ni |
Si |
S |
Cr |
Max |
Max |
Max |
Max |
Max |
Max |
Max |
Max |
0.15 |
1.0 |
6.0-10.0 |
0.5 |
72.0 |
0.5 |
0.015 |
14.0-17.0 |
Inconel Wire Mesh | ||
Mesh/Inch |
Wire Diameter(mm) |
Aperture(mm) |
2 |
1.6 |
11.10 |
4 |
0.91 |
5.44 |
6 |
0.71 |
3.52 |
8 |
0.50 |
2.67 |
10 |
0.50 |
2.04 |
12 |
0.45 |
1.66 |
14 |
0.40 |
1.41 |
16 |
0.30 |
1.28 |
18 |
0.25 |
1.16 |
20 |
0.25 |
1.02 |
30 |
0.21 |
0.64 |
40 |
0.19 |
0.45 |
50 |
0.15 |
0.36 |
60 |
0.15 |
0.27 |
70 |
0.13 |
0.232 |
80 |
0.12 |
0.197 |
90 |
0.11 |
0.172 |
100 |
0.10 |
0.154 |
110 |
0.09 |
0.141 |
120 |
0.09 |
0.122 |
130 |
0.07 |
0.125 |
140 |
0.07 |
0.111 |
150 |
0.06 |
0.109 |
160 |
0.06 |
0.098 |
180 |
0.053 |
0.088 |
200 |
0.053 |
0.074 |
waterproof paper+wooden box
