Specialities:
1,SGW12automatic rebar stirrup bending machine, china hot-sale double wire straightening and hooping machine,
2,easy operaton , high quality , perfect after-sale service
3, SGS,CE,

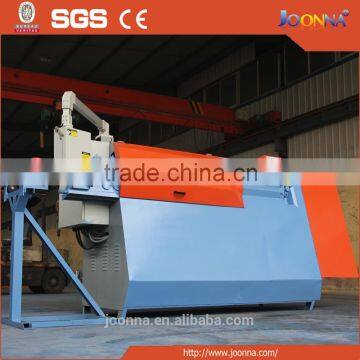

SGW12automatic rebar stirrup bending , china hot-sale double wire straightening and hooping machine machine features:
1. Frictional progressive feeding mechanism with high accuracy and no harm to steel bar rib.
2. The benders apply double line feeding system, which can greatly increase the productivity and reduce the labor intensity.
3. With the function of quick back and forth bending, the double vane bending die has improved its bending performance.
4. Powerful hydraulic shearing mechanism with good reliability.
5. The powerful memory database provides hundreds of shapes for using.
6. Quick-adjusting system has the function of machine diameter diameter.
7. Bending scope of coiled steel bar ranges from 5mm to 12mm
8. Synchronous belt drive with high accuracy and low cost of maintenance.
9. Hydraulic Controlling system.
Parameters
MODE |
JN-SGW12 |
||||
single diameter(mm) |
I round steelΦ5-Φ12 |
||||
|
III screw steelΦ5-Φ10 |
||||
double diameter(mm) |
I round steelΦ5-Φ10 |
||||
|
III screw steelΦ5-Φ8 |
||||
bending length scope(mm) |
80-1150 |
||||
Maximum traction speed(m/min) |
60 |
||||
Maximum bending angle |
180° |
||||
length accuracy(mm) |
±2 |
||||
angle accuracy |
±0.5 |
||||
)Maximum bending speed |
1100°/sec |
||||
General power(KW) |
15 |
||||
size(mm) |
3300X1100X1900 |
||||
Weight(KG) |
2500 |
||||
Processing(Φ8mm screw steel) |
Size(mm) |
200x200 |
500x500 |
700x700 |
1200x1200 |
|
Single line(piece/h) |
900 |
600 |
400 |
350 |
|
Double line(piece/h) |
1800 |
1200 |
800 |
700 |
JOONNA MACHINERY CO., LTD, is founded in 1988, focusing onmanufacting rebar cutting machine, bending machine and rebar straightening machine, and other rebar processing equipment.With 26 years’ development, today’s company integrates design, R&D,production, sales with independent rights to export and import.
After -sale service
JOONNA machinery three guarantees: If the whole machine suffers major quality problems such as engine body, box, and gear fracture, the warranty period is 6 months.Components and parts (nonconsumable parts) are under replacement and warranty within 3 months. If quickwear parts of the machine listed in the below table have problems, the quickwear parts are not in scope of three guarantees. (Remark: effective period is subject to date of invoice.)
