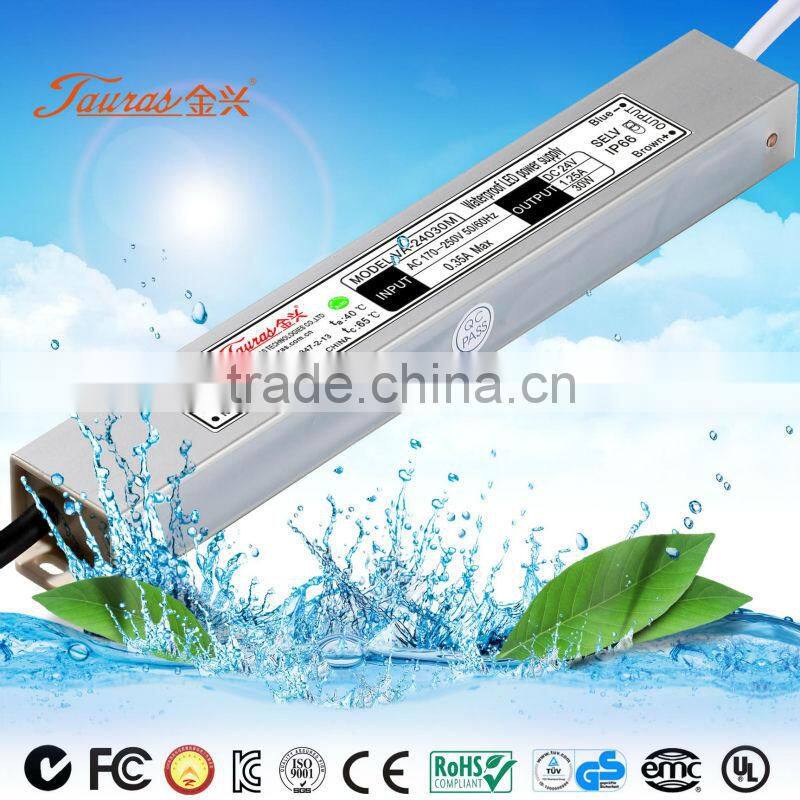

Help CenterPower Supply 36V 30W Waterproof LED Power Supply High Reliability IP66 LED Driver 30V VD-36030M
Related Products
-
12Vdc 150W Constant Voltage SAA CE MM C-Tick Approval Waterproof LED Power Supply VAS-12150D023 TaurasUS$ 1 - 100MOQ: 1 Piece -
SAA EMC CE Approval Constant Voltage 24Vdc 200W Waterproof LED Power Driver VAS-24200D023 TaurasUS$ 1 - 100MOQ: 1 Piece
-
24vdc UL CE EMC ROHS Approval Mini Size Mean Well Waterproof LED Driver 40w VFS-24040D079US$ 1 - 100MOQ: 1 Piece
-
Constant Voltage 100w 12V SAA CE ROHS Approval Waterproof LED Driver VAS-12100D024US$ 1 - 100MOQ: 1 Piece
-
12Vdc 60W Constant Voltage LED Driver VA-12060PUS$ 1 - 100MOQ: 1 Piece
Specifications
1.Waterproof LED Power Supply(IP66)2.Constant Voltage
3.Output Power:30W
4.High reliability
5.3 years warranty
Features
·Small size,High efficiency,High reliability,Long lifetime;
·IP66 rating;
·Working temperature -25~+40°C
·Protection:Overload,Short-circuit pratection,Over-temperature;
·Typical efficiency:86.5%
·Low standby power,min to 0.8W;
·Start delay design,which can reduce the starting current when multiple simulatance start;
·CE,IP66 certifide,ROHS compliant;
·Low output ripple moises.
Detailed Product Description
Item No. |
VD-36030M |
Input Voltage |
90V-264V |
Output Voltage |
36V |
Output Current |
0.83A |
Output Power |
30W |
Power type |
Constant Voltage |
Color |
Silver |
Material |
Aluminum |
Quality |
High reliability |
Series |
Platinum |
Strong point |
High reliability and Low price |
MOQ |
1Pcs |
Size |
217*29.5*20mm |
Weight |
250g |
Protected functions |
Short circuit/Over voltage/Over temperature |
Warranty |
3 years warranty |
Maket |
Europe&Australia&American and Others |
Standard |
CE&ROHS |
Applications
*Office lighting, Artwork lighting, Display case
*Home lighting
*Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
*Hotel, Restaurant lighting
*Other public lighting
Important Parameter
Store Temperature: -25~75°C
Working Temperature: -25~40°C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP66

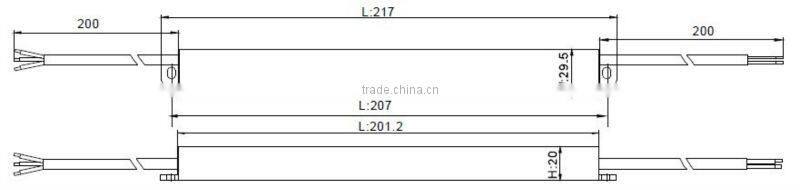

Structure
Packing
50PCS/Carton
Carton size: 345*255*185mm

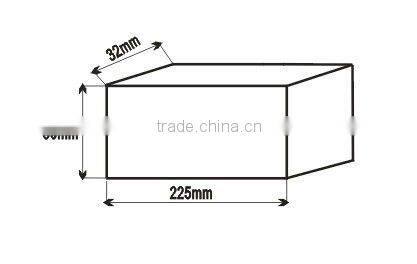

Dimension of inter box

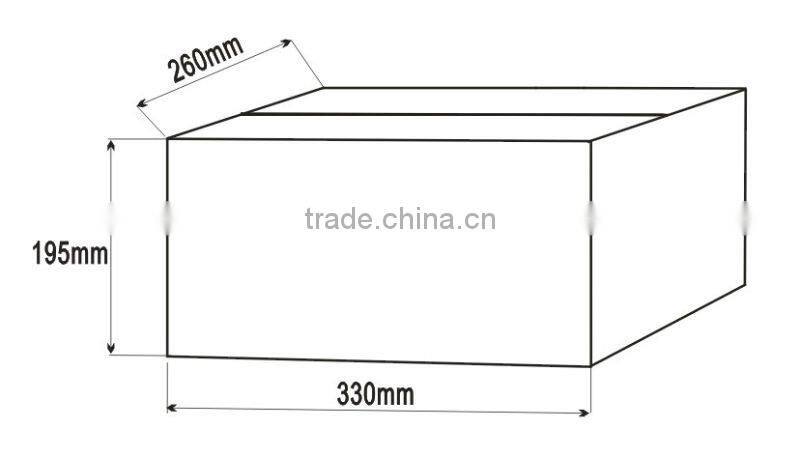

Dimension of outer carton
Advantages
1,The first factory entered the waterproof LED Power Supply in China mainland;
2,10 years focus on the LED Power Supply Research and development, Production;
3,Serviced 2,500 customers, including 2000 in China mainland, 500 in overseas markets all over the world;
4,High reliability and good stability, for many kinds of large-scale outdoor lighting project, through the use of test from 2500 customers;
5,LED Power Supply is the heart of the LED lamps and transformers is the core component of LED Power Supply. For control the quality, we made the transformer by our own factory, this also for the power supply is stable and reliable;
6,Complete certification, UL, SAA, EMC etc., Small factory often lack of this;
7,Electrolytic capacitors and other components are made of giant brand, high-end products with Ruby etc.
8,After-sale guaranteed, real integrity transactions, 1:1 replace the faulty item, but many small factory often irresponsible when face the quality problem, even precarious;
9,Strictly process control, Power supply enter the door is low, but do well is not much, do not do well, even though the same techniques, the same material, do all the things we are not the same, because process control are not the same, Equipment is not the same;
10,Strong r&d team, r&d team has more than 30 people;
11,Flexible and fast delivery, bulk orders usually delivery within two weeks, General small batch orders can be arranged delivery within 3 days if have semi-finished products in stock;
12,Compare with MeanWell, we have the advantages of ODM, OEM, quality unchanged and have competitive price.
Workshop
Certificate
Selling well Products
Conditions of use
1.Operating environment and storage conditions
(1) If using outdoor, the appropriate temperature should be of -25°C ~+40°C, with the relative humidity not more than 98%
(2) If using indoor, the appropriate temperature should be of -25°C ~+50°C, with the relative humidity not more than 80%
(3) If storing the product, the appropriate temperature should be of -25°C ~+75°C, with the relative humidity not more than 80%
2.Three principles for installation:
(1) The voltage of the electric grid in use must be ensured to be within the operating 10% voltage scope specified by the power source; for instance: if the nominal input voltage is 200V~240V, it is required to connect the power source with the electric grid with the voltage not less than 180V or higher than 264V.
(2) Never use in the unexpected load, for instance overload or extreme underload or etc.
(3) Install the product in an environment and a way facilitating for the power source for heat dissipation:
A. Never install the power source in a hot environment;
B. Ensure the power source to radiate heat in three ways of heat transfer:
a. Expose it in moving air;
b. Leave the heat radiation space as large as possible;
c. Install it in a metal plate with large area and make it contact well to radiate heat through the metal plate.
3. Please operate strictly according to the Product Operating Instructions. Do not directly use the products in harsh environments (such as:PH larger areas or in water use)
Installation and service
If product quality problems occur within the warranty period, free replacement of the same type of product or repaired bad product.
Please always remember we can produce custom-made product according to your needs.
Welcome to your inquiry!
