Help CenterBest Quality of FEITA Microscopes /Stereo Microscope/binocular Microscope
Related Products
-
High Quality and Reliable XTL-2600 Electronic Stereo MicroscopeUS$ 450 - 600MOQ: 10 Sets -
Electron Microscope Magnification/Trinocular Microscope Usb Microscope Software/electric Stereo MicroscopeUS$ 230 - 308MOQ: 5 Sets
-
Stereo Electron Microscope Price With Binocular Drawtube / Light Optical MicroscopeUS$ 700 - 1,000MOQ: 1 Set
-
Achromatic Biological Microscope/Binocular Microscope With Light and Electron MicroscopesUS$ 190 - 210MOQ: 1 Set
-
USB Digital Microscope With 2.0M Camera/ USB Microscope 2.0M Camera, 8 LED and HolderUS$ 40 - 80MOQ: 1 Set

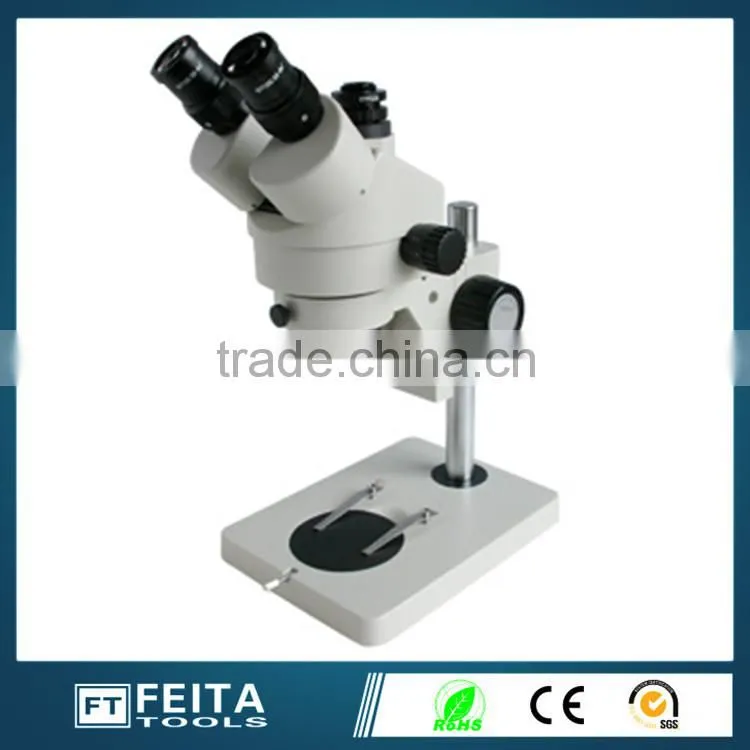

FSM45T1 microscopes
1.Model: FTSM-45T1
2.Eyepiece: WF10X/20mm (standard, can install micrometer )
3.Observation of the first SZM-7045TR: three observation, 45 °tilt, which can rotate 360 degrees; ntinuous variable magnification objective lens 0.7X-4.5X, working distance 100mm. pupil 5.distance adjusting range of 54mm-76mm, bilateral optic tunable degrees of + 5 diopters.
6.Objective: 0.5X/165mm. 0.75X/105mm. 1.5X/45mm. 2X/30mm. auxiliary ( optional)
7.Focusing bracket: SZMA1 focusing focusing hand wheel frame, adjustable, lifting range 50mm.
8.Base: SZMST1 pillar flat-plate type base ( standard)
9.An external light source: LED lamp, adjustable brightness ( standard)
10.Camera: 0.35X/0.5X/1.0X C type camera connection cylinder
11.Other optional: CMOS or CCD camera

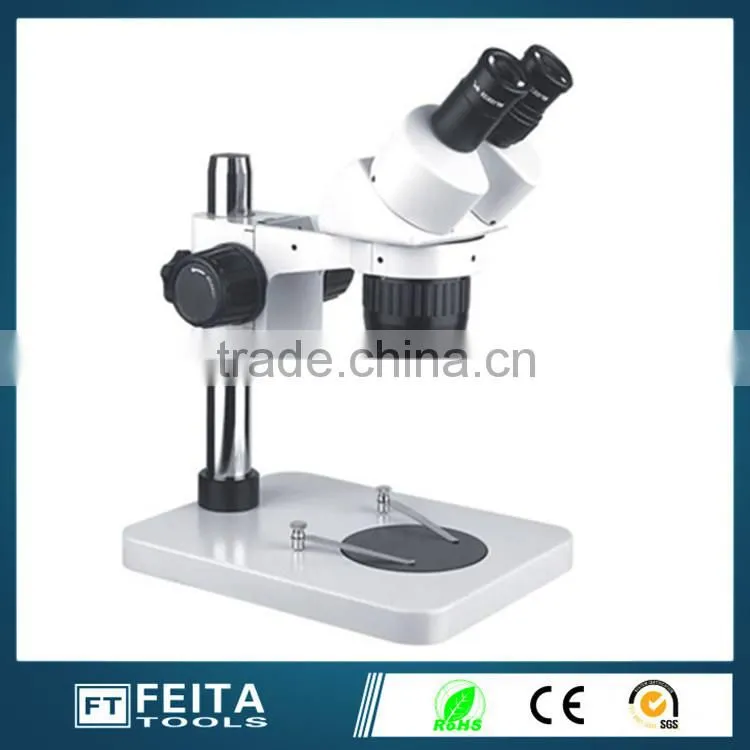

FTX series stereo microscopes are a kind of positive image microscope,long working distance, clear and smooth image quality.

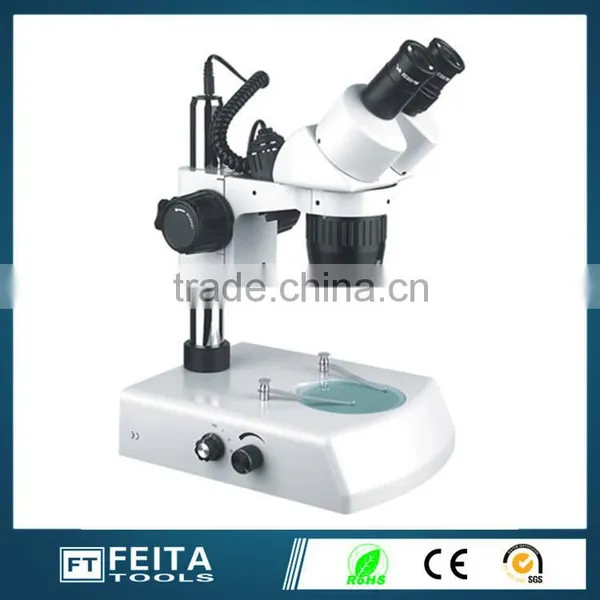

XTD Series stereo microscope
XTD series stereo microscopes are a kind of positive image microscope; they have long working distance, clear and smooth image quality, wide field, convenience operation etc. They can be used for culture and education, scientific research, farming and forestry, electronics and precision machine industries widely.
Features:
1.) Eyepiece field is wide and clear.
2.) Optical tube, 45° inclination. can be rotated 360°, interpupillary distance and the left eyepiece tube diopter can be adjusted.
Specification:
| Model Specification | FTX-4412 | FTX-4424 | FTX-021 | FTX-022 | FTX-031 | XTD-032 | XTD-0201 |
| Eyepiece | WF10X(Dia.20mm) | WF10X(Dia.20mm) | WF10X(Dia.20mm) | WF10X(Dia.20mm) | |||
| Objective | 1X,2X | 2X,4X | 1X,2X | 2X,4X | 1X,2X | 2X,4X | 2X |
| Total magnification | 10X,20X | 20X,40X | 10X,20X | 20X,40X | 10X,20X | 20X,40X | 20X |
| Visual field (mm) | Dia.20, Dia.10 | Dia.10,Dia 5 | Dia.20, Dia.10 | Dia.10,Dia 5 | Dia.20, Dia.10 | Dia.10,Dia 5 | Dia.10 |
| Work distance | 50mm | 50mm | 50mm | 70mm | |||
| Base size | 170X120X21mm | 170X120X54mm | 190X120X55mm | 170X120X21mm | |||
| Illumination model | NO | Reflected light source:6V8W halogen lamp | 6V8W halogen lamp, can used with reflected light, transmitted light or mixed light for illumination | NO | |||
FEITA Electronics Co.,Ltd . Specializing in Soldering Station, Soldering Tips, Tweezers , Automatic Glue Dispenser, Automatic Tape Dispenser, Automatic Screw Feeder, and other products development, production and sales . Company sets Science, workers, trade in one, to absorb and train in a number of professional technology engineers and marketers, equipped with professional production and testing equipments, Suppliers Soldering Tools series, Automatic Tools series, Ionizing Tool series, Anti-static Control series products, Since 2010, we have explored the international market, seted up HK company:FEITA International Limited .
1. Any Inquires will be replied within 24 hours.
2.Professional manufacturer,two version to show how to operate.Welcome to visit our website.
3. All of our products 100% inspection before shipment, we guarantee to use our products safety.
4. We own the best after-sale service. If there any problems happen, our team will do our best to solve for customers.
5. Faster delivery, 3-7 workdays after we receive the payment
