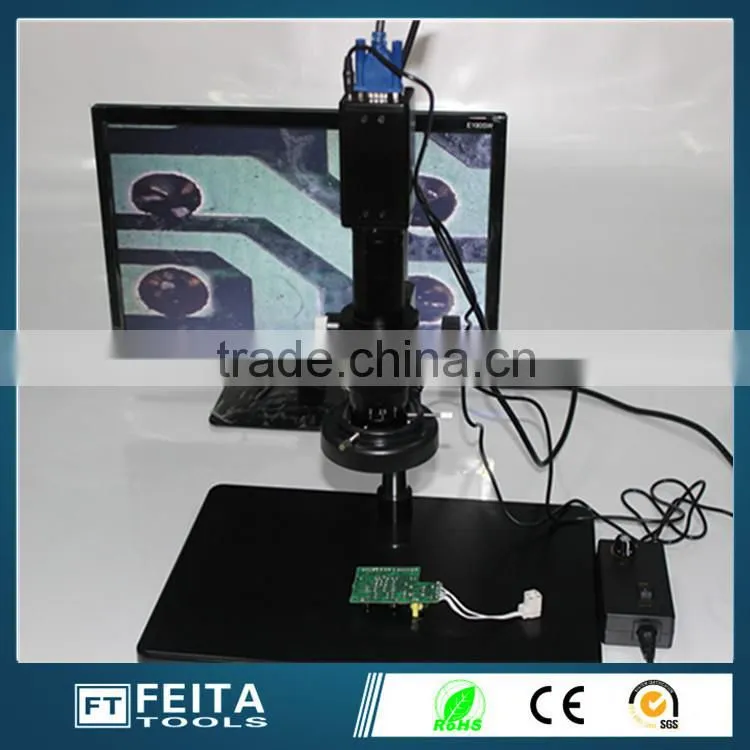

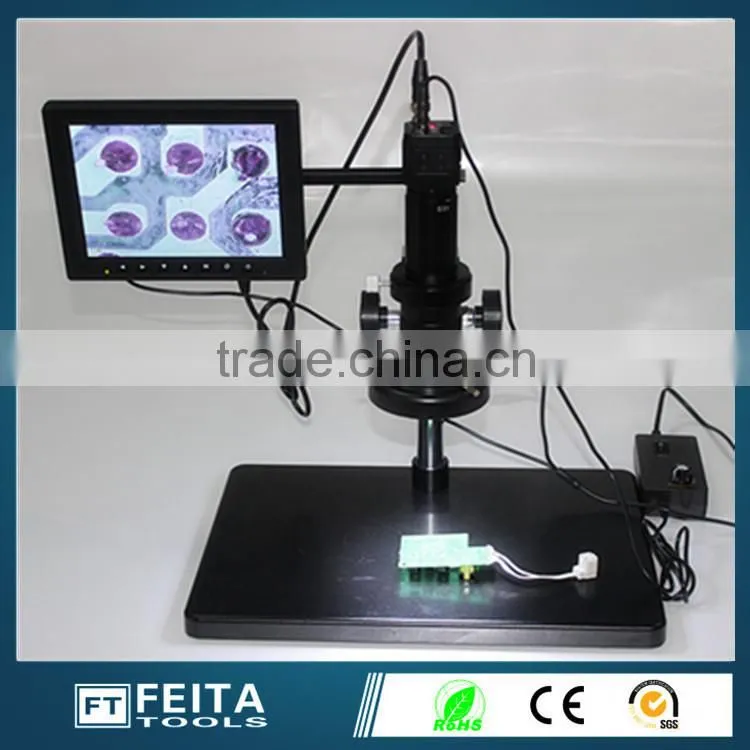

KE208-A portable microscopes with digital microscope camera

KE208A portable microscopes with digital microscope

Keyword :digital microscope

 Parameters:

• Resolution: 480 (sony chip);
• resolution: 640x480;
• input voltage: 220V;
• output voltage: 12V;
• output mode: AV connection;
• color: Colored;
• outward appearance: Alloy outer covering, standard C connection;
• outward appearance size: 45*50*50MM
• operating temperature: - 10-60 degrees;
• Total enlargement factor: 7-150 times;
• objective lens: 0.7-4.5  change time continuously;
• eyelens: 0.5X;
• fluctuation scope: 270mm;
• handwheel focusing scope: 65mm;
• center distance: 140mm;
• column diameter: 25mm;
• lens connection diameter: 50mm;
• support gross altitude: 355mm;
• foundation size: 390X270X28MM;
• net weight: 6KG;

Description:

• The applicable scope is suitable for the electronics industry, the hardware, the precise project, the plastics industry, the medical service, the biomedicine.

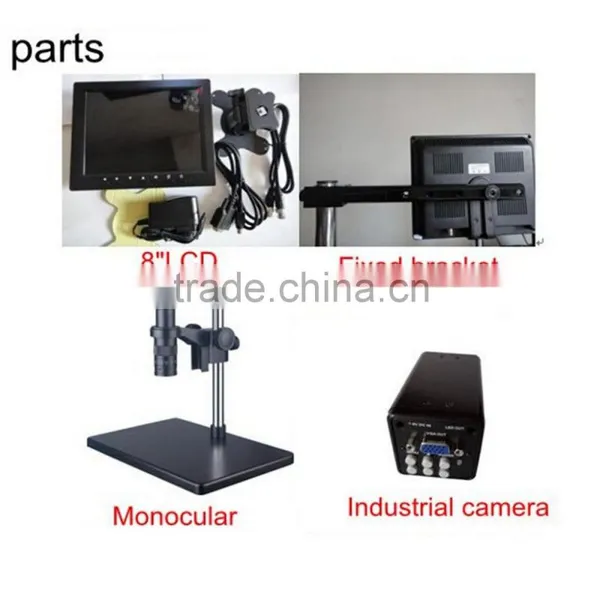

• This disposition: The microscope, CCD, the microscope photo source, the data line, actuate the compact disc;
• Post-sale: Free maintains for one year.
• Disposition: camera: 480 (SONY chip). eyelens: 0.5 time. objective lens: 0.7-4.5 time. photo source: Fluorescence photo source. monitor: 8 inches. liquid crystal support.

FKE-208 digital microscope with led righ light :

USB output interface digital microscoep:
