Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > 24V Constant Voltage Type 60W Waterproof LED Switching Power Supply VA-24060P

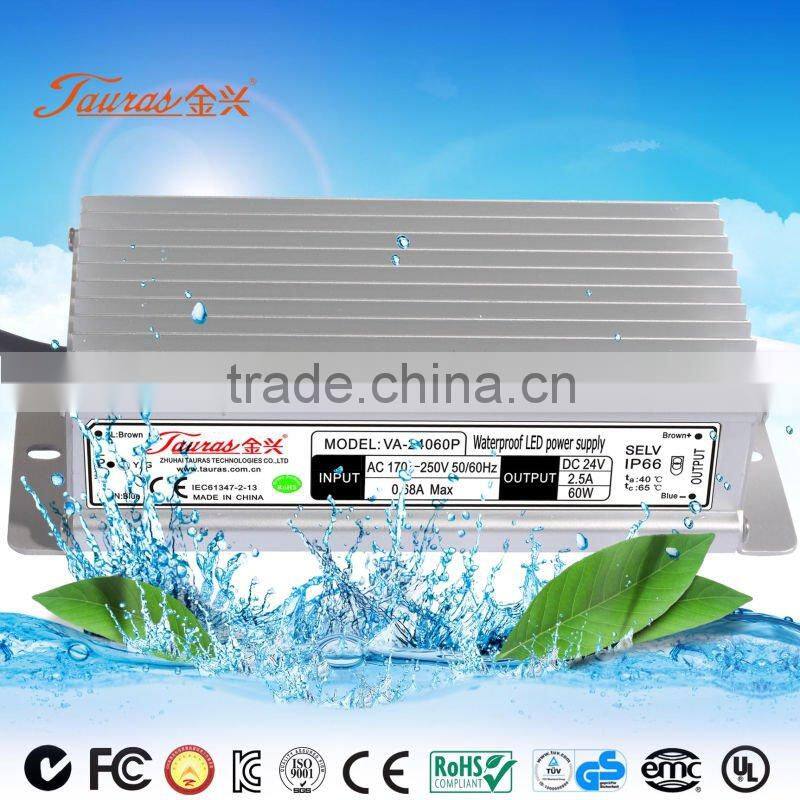

24V Constant Voltage Type 60W Waterproof LED Switching Power Supply VA-24060P

Name: 24V Constant Voltage Type 60W Waterproof LED Switching Power Supply VA-24060P
Brand: tauras
SKU: 120064193
Availability: InStock

24V Constant Voltage Type 60W Waterproof LED Switching Power Supply VA-24060P thumbnail-1

24V Constant Voltage Type 60W Waterproof LED Switching Power Supply VA-24060P photo-1

US$ 1 - 100 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

tauras

Model Number:

VA-24060P

Contact Supplier Request Quote Chat Now

Zhuhai Tauras Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhuhai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name tauras

Model Number VA-24060P

Output Power Other, 60W

Output Type Dual

Input Voltage Other, 170-250V

Output Voltage 24VDC

Output Frequency 50/60HZ

Output Current 2.5A

Specifications

1.Switching Power Supply(IP66)
2.CE&KC&ROHS certificate
3.Output power:60W
4.Constant Voltage type
5.High reliability

Features

·Small size,High efficiency,High reliability,Long lifetime;

·IP66 rating;

·Working temperature -25~+40°C

·Protection:Overload,Short-circuit pratection,Over-temperature;

·Typical efficiency:87.5%

·Low standby power,min to 1W;

·Start delay design,which can reduce the starting current when multiple simulatance start;

·CE,IP66 certifide,ROHS compliant;

·Low output ripple moises.

Detailed Product Description

Item No.	VA-24060P
Input Voltage	170-250V
Output Voltage	24±0.5V
Output Current	2.5A
Output Power	60W
Power type	Constant Voltage
Color	Silver
Material	Aluminum
Quality	High reliability
Series	Platinum
Strong point	High reliability and Low price
MOQ	1Pcs

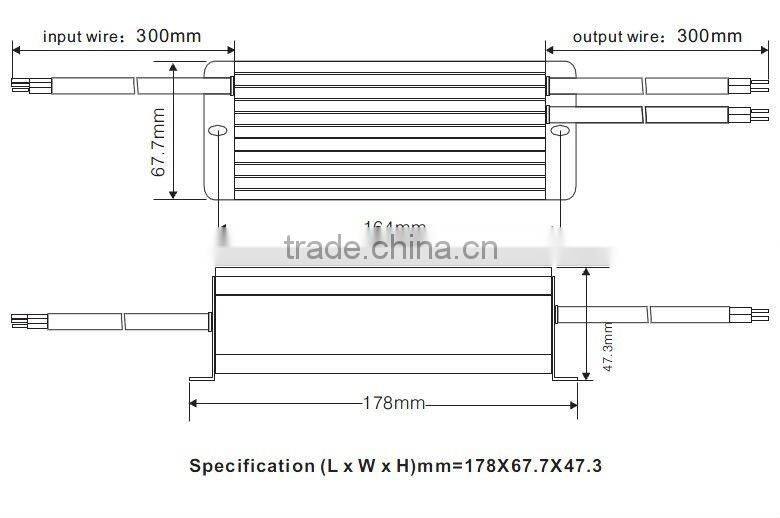

Size	17867.747.3mm
Weight	900g
Protected functions	Short circuit/Over voltage/Over temperature
Warranty	2 years warranty
Maket	Europe&Australia and Others
Standard	CE&ROHS

Applications

*Office lighting, Artwork lighting, Display case

*Home lighting

*Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.

*Hotel, Restaurant lighting

*Other public lighting

Important Parameter

Store Temperature: -25~75°C

Working Temperature: -25~40°C

Work environment: Indoor or outdoor installations

Waterproof Rating: IP66

Structure

Packing

10PCS/Carton

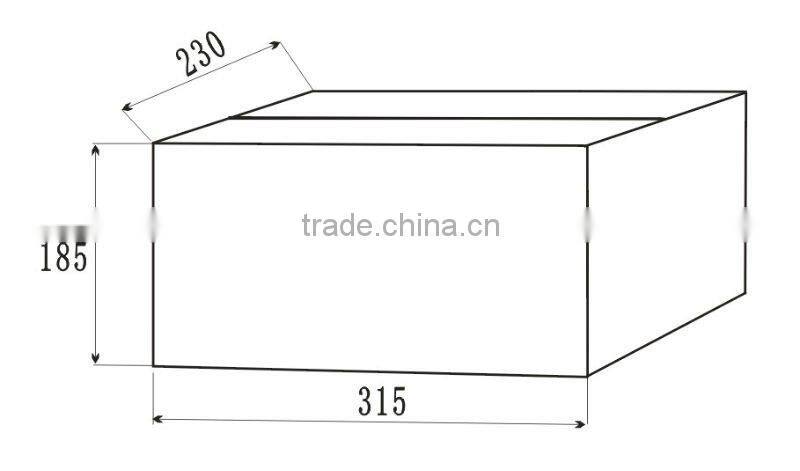

Carton size: 315*230*185mm

Dimension of inter box

Dimension of outer carton

Advantages

1,The first factory entered the waterproof LED Power Supply in China mainland;

2,10 years focus on the LED Power Supply Research and development, Production;

3,Serviced 2,500 customers, including 2000 in China mainland, 500 in overseas markets all over the world;

4,High reliability and good stability, for many kinds of large-scale outdoor lighting project, through the use of test from 2500 customers;

5,LED Power Supply is the heart of the LED lamps and transformers is the core component of LED Power Supply. For control the quality, we made the transformer by our own factory, this also for the power supply is stable and reliable;

6,Complete certification, UL, SAA, EMC etc., Small factory often lack of this;

7,Electrolytic capacitors and other components are made of giant brand, high-end products with Ruby etc.

8,After-sale guaranteed, real integrity transactions, 1:1 replace the faulty item, but many small factory often irresponsible when face the quality problem, even precarious;

9,Strictly process control, Power supply enter the door is low, but do well is not much, do not do well, even though the same techniques, the same material, do all the things we are not the same, because process control are not the same, Equipment is not the same;

10,Strong r&d team, r&d team has more than 30 people;

11,Flexible and fast delivery, bulk orders usually delivery within two weeks, General small batch orders can be arranged delivery within 3 days if have semi-finished products in stock;

12,Compare with MeanWell, we have the advantages of ODM, OEM, quality unchanged and have competitive price.

Workshop

Certificate

Selling well Products

Conditions of use

1.Operating environment and storage conditions

(1) If using outdoor, the appropriate temperature should be of -25°C ~+40°C, with the relative humidity not more than 98%

(2) If using indoor, the appropriate temperature should be of -25°C ~+50°C, with the relative humidity not more than 80%

(3) If storing the product, the appropriate temperature should be of -25°C ~+75°C, with the relative humidity not more than 80%

2.Three principles for installation:

(1) The voltage of the electric grid in use must be ensured to be within the operating 10% voltage scope specified by the power source; for instance: if the nominal input voltage is 200V~240V, it is required to connect the power source with the electric grid with the voltage not less than 180V or higher than 264V.

(2) Never use in the unexpected load, for instance overload or extreme underload or etc.

(3) Install the product in an environment and a way facilitating for the power source for heat dissipation:

A. Never install the power source in a hot environment;

B. Ensure the power source to radiate heat in three ways of heat transfer:

a. Expose it in moving air;

b. Leave the heat radiation space as large as possible;

c. Install it in a metal plate with large area and make it contact well to radiate heat through the metal plate.

3. Please operate strictly according to the Product Operating Instructions. Do not directly use the products in harsh environments (such as:PH larger areas or in water use)

Installation and service

If product quality problems occur within the warranty period, free replacement of the same type of product or repaired bad product.

Please always remember we can produce custom-made product according to your needs.

Welcome to your inquiry!
