Specifications
led recessed down light1.Round diamere 18mmdown light
2.Use SMD2835,high brightness 12W panel down light
3.PMMA+AL recessed
New panel product SMD2835 108pcs 12W led recessed down ceiling light
Date:
| LED panel φ180mm details | |
| Size | 180*13.5MM |
| Material | Aluminum alloy+PMMA |
| Fixture Color | silver |
| Light Color | Warm white(2900-3200K) white(5500-6500K) |
| Light source | SMD 2835 0.09W/Pcs |
| Power | 12W (108leds) |
| Weight | 0.745kg/pcs |
| Life | >50000hours |
| Voltage(input) | 85-265V 50-60Hz/AC |
| Voltage(output) | 19.2V/DC |
| Output current | 0.54A |
| Flux(LUX) | ||||||
| 0.5M | 1M | 1.5M | 2M | 2.5M | 3M | |
| White | 921 | 230 | 102 | 57 | 37 | 25 |
| Warm white | 921 | 230 | 102 | 57 | 37 | 25 |
| Light output(Lm ) | |||
| output(LM) | Power(W) | Luminous efficiency (Lm/W) |
|
| White | 726 | 12 | 60.5 |
| Warm white | 726 | 12 | 60.5 |
Advantage
1. High brightness up to adopting side light technology.
2. The brightness is 20% higher than the common diffuser plate while use Acrylic panel with laser-engraved grids.
3. Good heat dissipation and obtained the national patents.
4. Obtained the Certificate of Utility Model Patent and Design Patent.
5. With LED driver made by own factory what constant current and constant voltage.
6. Can be used with Dimmers, dimming range: 1-100%.
7. Lighting angle is more than 120°, uniform illumination and no dark area.
8. No-glaring.
9. Customized size and wattage are welcome.
10. MOQ for 50pcs.
1. Lifetime: more than 50,000 hours.
2. Energy saving: In the same specification and luminous flux, the LED panel light can save 50% than the traditional T8 lamps, and 30% than the new T5 lamps.
3. Low temperature rise: The LED panel’s temperature rise is less than 25°C.
4. Low working voltage: 12VDC, 24VDC and 36VDC all available.

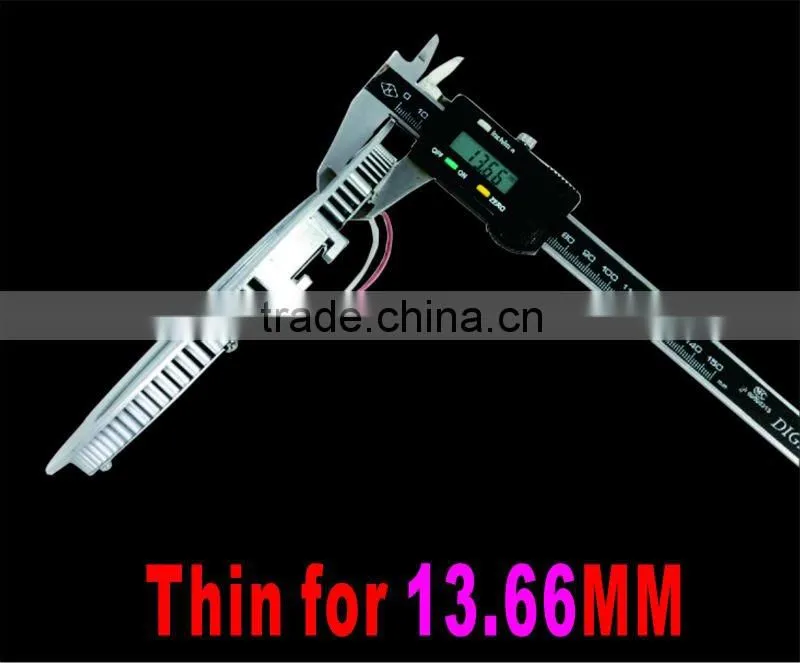

5. Ultrathin design: the thickness is 13.5mm.
6. Anti-glaring: 120 degrees.
7. Small radiation.
8. Low luminous decay: Within 10,000 hours,the luminous decay remains at 3%.
9. User-friendly: Easy installation. It can be directly replaced the original T8/T5 lamp panel without installing other facilities.
10. Flexible design: The client can specify any size and specification he want.

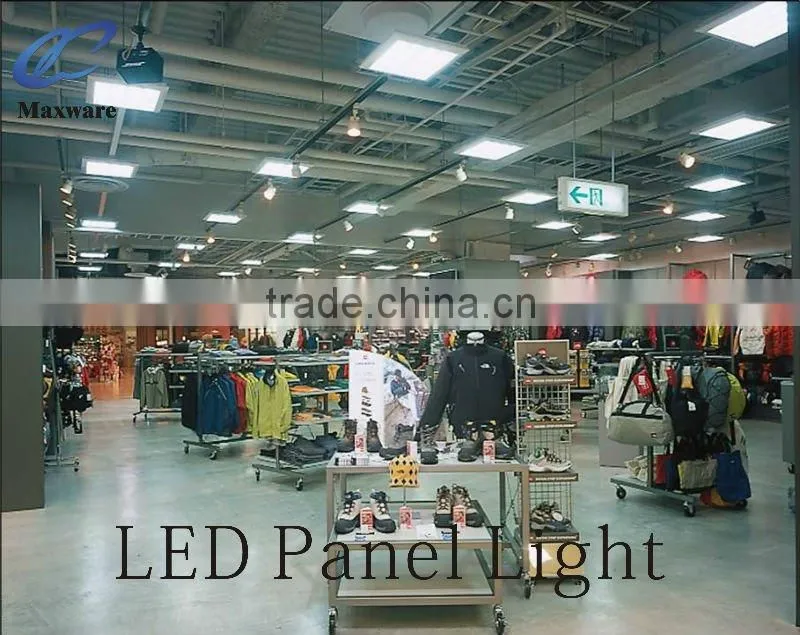

Application
1. Office lighting.
2. Home lighting.
3. Commercial Lighting, such as supermarket, shopping mall, etc…
4. Hotel and restaurant lighting.
5. Public lighting
