Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > SMD3528 Diameter for 180MM 14mm Slim 108pcs 12W Round Led Panel Light

SMD3528 Diameter for 180MM 14mm Slim 108pcs 12W Round Led Panel Light

SMD3528 Diameter for 180MM 14mm Slim 108pcs 12W Round Led Panel Light thumbnail-1
SMD3528 Diameter for 180MM 14mm Slim 108pcs 12W Round Led Panel Light photo-1
US$ 25 - 30 MOQ: 10 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD
Warranty(Years):
2
Input Voltage(V):
AC220
Contact Supplier Request Quote Chat Now
Zhongshan City Maxware Electronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD
Warranty(Years) 2
Input Voltage(V) AC220
Lamp Power(W) 12
Lamp Luminous Flux(lm) 850
Color Temperature(CCT) Other, W/WW
Working Temperature(℃) -30, 45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP54
Certification CE
Place of Origin Guangdong, China
Brand Name Maxware
Model Number MW-PL-R12W

Specifications

12W Round led panel light
1.Used the SMD3528 108pcs 12W

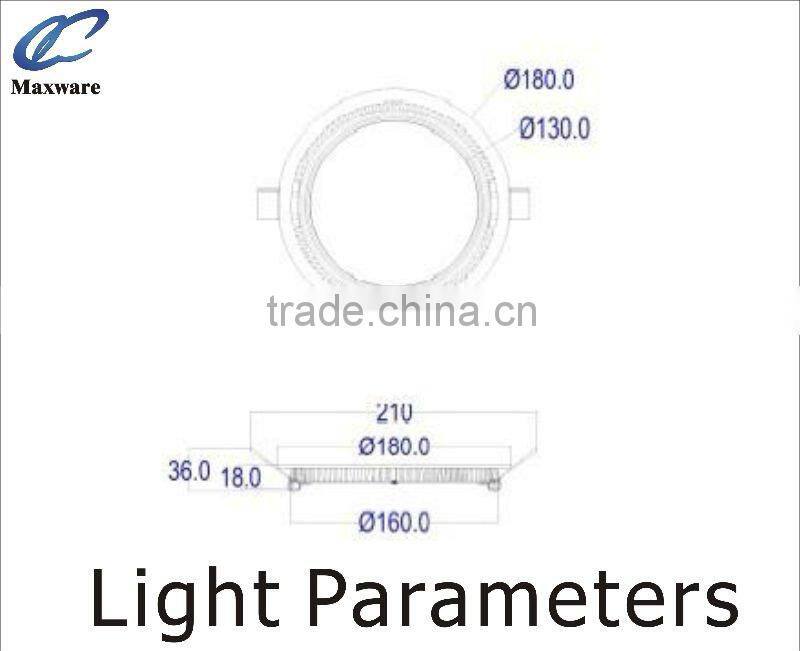

2.Diameter for 180MM
3.12W led round ceiling panel
4.Warranty 2year

   SMD3528 Diameter for 180MM 14mm slim 108pcs 12W led panel light/ round ceiling panel



All our round led panel light detailed bellow:



MW Round Panel Light Series
Item Size Input Color
tempreture		 SMD LED
source		 Power Lumens (Lm)
MW-PLR-10 D180x15mm AC100-277V 2700-6500k 3014 90pcs 10W 550-650
MW-PLR-15 D240x15mm 150pcs 15W 600-800

MW-PLR-06 D180x14mm AC:85-265V 2800-6500k 3528 54pcs 6W 450
MW-PLR-12 D180x14mm 108pcs 12W 800



Advantage

1. High brightness up to adopting side light technology.

2. The brightness is 20% higher than the common diffuser plate while use Acrylic panel with laser-engraved grids.

3. Good heat dissipation and obtained the national patents.

4. Obtained the Certificate of Utility Model Patent and Design Patent.

5. With LED driver made by own factory what constant current and constant voltage.

6. Can be used with Dimmers, dimming range: 1-100%.

7. Lighting angle is more than 120°, uniform illumination and no dark area.

8. No-glaring.

9. Customized size and wattage are welcome.

10. MOQ for 50pcs.



Application



  • General indoor lighting
  • Hotels lighting
  • Conference room lighting
  • Factories, offices lighting
  • Business negotiation venues lighting
  • Housing, institutions and other buildings lighting
  • Schools, hospitals lighting
  • Places need to energy efficiency and high color developing index



SMD3528 Diameter for 180MM 14mm Slim 108pcs 12W Round led panel lightSMD3528 Diameter for 180MM 14mm Slim 108pcs 12W Round led panel light



SMD3528 Diameter for 180MM 14mm Slim 108pcs 12W Round led panel lightSMD3528 Diameter for 180MM 14mm Slim 108pcs 12W Round led panel lightSMD3528 Diameter for 180MM 14mm Slim 108pcs 12W Round led panel lightSMD3528 Diameter for 180MM 14mm Slim 108pcs 12W Round led panel light
