Series Economical Pressure Transducer 4~20mA 0~5V

Name: Series Economical Pressure Transducer 4~20mA 0~5V
Brand: chinastar
Price: USD $36 - 36 / Piece

FOB Price

USD $36 - $36 / Piece

5 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port xi'an

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Shaanxi, China

Brand Name:

chinastar

Model Number:

CS-PT1000

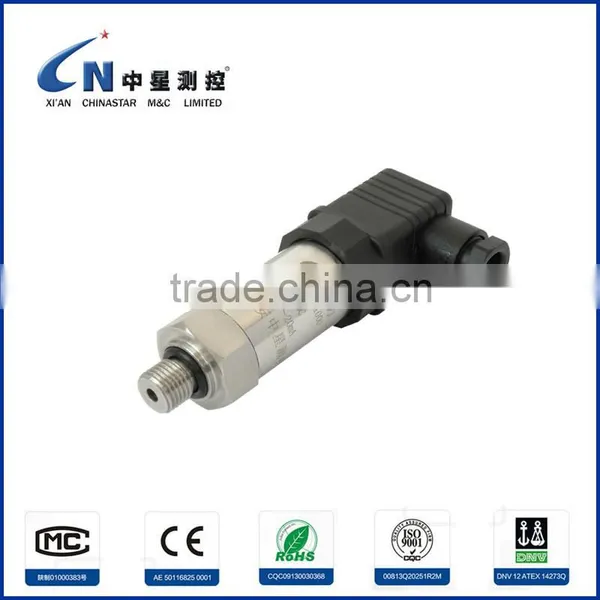

Product Description

CS-PT1000 series of pressure transmitters are cost-effective products featuring mass production and low cost. They are widely used to detect the pressure of gas and liquid like water and nature gas,
The product are made of stainless steel, the pressure sensing elements are selected from well-known international brands,. Special circuits are adopted to adjust zero and full range conveniently. The products have been approved with CE, intrinsically safe, and explosion-proof certificates.
Customized structures and outputs formats can be designed according to special application requirement, in addition to standard products.

Technical parameters

Parameters	Value			Note
Measure Range	0.5Mpa~60MPa			1MPa≈145PSI
Overload Pressure	1.5×RP(rated pressure)
Broken Pressure	2.5×RP(rated pressure)
Accuracy	±0.5% F.S ( MARS & PT300 series have higher accuracy)
Stabilty	Typical 0.25%F.S, Max 0.4%F.S
Operate Temprature	-40℃~85℃
Compensation Temprature	-10℃~70℃
Media Compatibility	Corrosive medium compatible with Cr18Ni9Ti, ceramics
Wire	Two-wire	Three-wire
Output Signal	4~20mA	0~5V	0~10V
Power Supply	12~30Vdc	10~30Vdc/ac	12~30Vdc/ac	dc/ac means dc and ac are all usable
Load Resistance	(U-10)/0.02(Ω)	>20kΩ
Insulation	>100M Ω@50V
Elec. Connect	DIN43650, Shell protection IP65			Hirschmann Plug(S)
	GX16-7, Shell protection IP45			Quick Access Plug(K)
	Wire protection (Five), Shell protection IP68
Pressure Port	M20×1.5, G1/2, G1/4, NPT1/2, NPT1/4
Response Time	10ms
Pressure Form	Gauge G, Absolute A
Compliant	CE
EMC	EMI: EN50081-1/-2; EMS: EN50082-2
