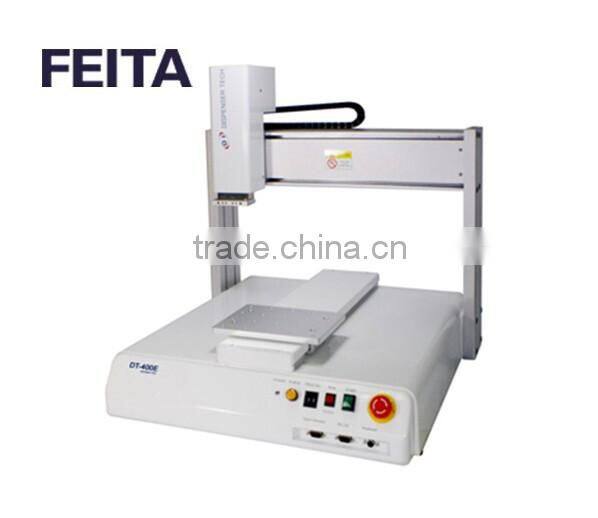

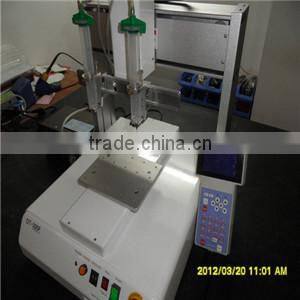

Dispensing Robot Solder Paste Dispenser/ Intelligent automatic glue dispenser
Dwscription:
1.May the simple addition automatic control part become I/O PORT which multi-purpose production equipment the radio station itself provides to be possible to let you install the automatic control part, for example: Air cylinder, gripping jaw, real suction mouth…And so on, satisfies the different state the production process demand.
2.Independently designs the production to provide you most specialized service the specialized soft hardware research and development team and the efficiency produces from the group, provides you the non-extra worries the components to prepare materials and the post-sale service, lets your machine not be able to become the orphan.
3.Not only the this product best-selling more than 40 countries, are subject to the customer to like receiving home most factories with DT-E Series the loves to use, penetrates the ODM manufacture for sale abroad to the world more than 40 countries, becomes the desk-top rubber equipment's world first brand.
4.It is suitable industry of for various types rubber demand the general common UV rubber, Silicon, EPOXY, the red rubber, the silver rubber, a.B rubber, the COB black rubber, leads the bakelite, the radiation aluminum paste, the instantaneous rubber…And so on a rubber, all may use in DT-E on the series equipment.

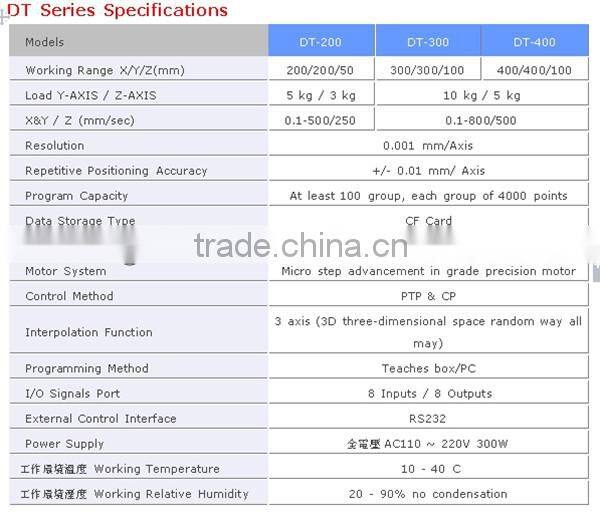

Specification:
Models |
DT-200 |
DT-300 |
DT-400 |
Working Range X/Y/Z(mm) |
200/200/50 |
300/300/100 |
400/400/100 |
Load Y-AXIS / Z-AXIS |
5 kg / 3 kg |
10 kg / 5 kg |
|
X&Y / Z (mm/sec) |
0.1-500/250 |
0.1-800/500 |
|
Resolution |
0.001 mm/Axis |
||
Repetitive Positioning Accuracy |
+/- 0.01 mm/ Axis |
||
Program Capacity |
At least 100 group, each group of 4000 points |
||
Data Storage Type |
CF Card |
||
Program Display |
Teach Pendant LCD |
||
Motor System |
Micro step advancement in grade precision motor |
||
Control Method |
PTP & CP |
||
Interpolation Function |
3 axis (3D three-dimensional space random way all may) |
||
Programming Method |
Teaches box/PC |
||
I/O Signals Port |
8 Inputs / 8 Outputs |
||
External Control Interface |
RS232 |
||
Power Supply |
AC110 ~ 220V 300W |
||
Working Temperature |
10 - 40 C |
||
Working Relative Humidity |
20 - 90% no condensation |
||
Dimensions (WxDxH mm) |
380 x 370x 500 |
485 x 500 x 600 |
585 x 600 x 600 |
Robot Weight (kg) |
23 kg |
32 kg |
40 kg |
1.Packing: indivually packed , standard export package
2.Delivery Detail: Within 3-5 workdays delivery after confirming the payment.
3.Shipping & order :
1. Any Inquires will be replied within 24 hours.
2.Professional manufacturer,two version to show how to operate.Welcome to visit our website.
3. All of our products 100% inspection before shipment, we guarantee to use our products safety.
4. We own the best after-sale service. If there any problems happen, our team will do our best to solve for customers.
5. Faster delivery, 3-5 days after we receive the payment.
