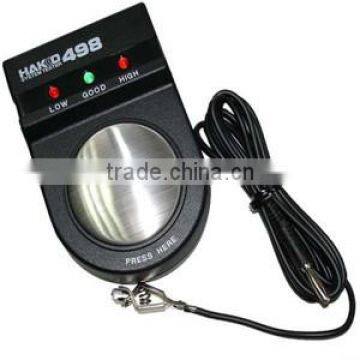

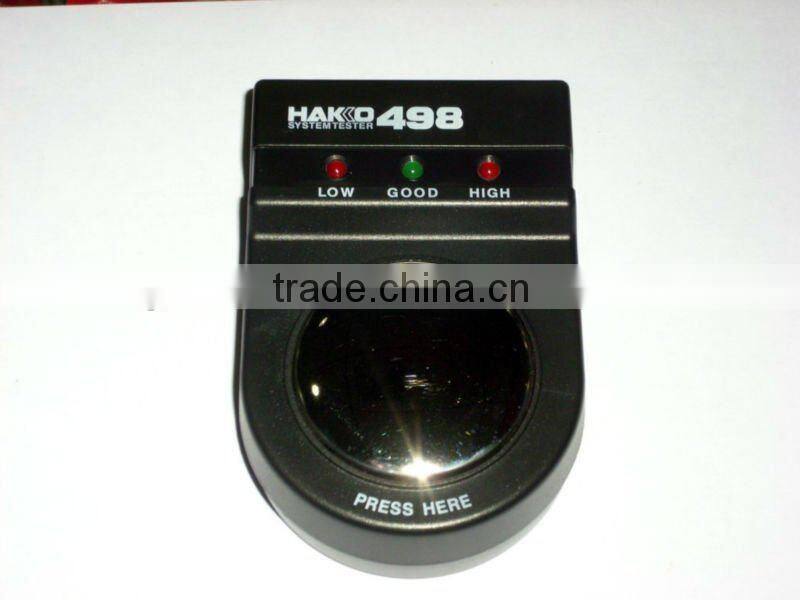

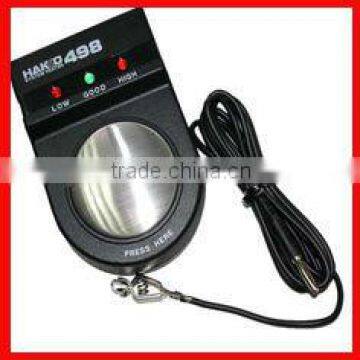

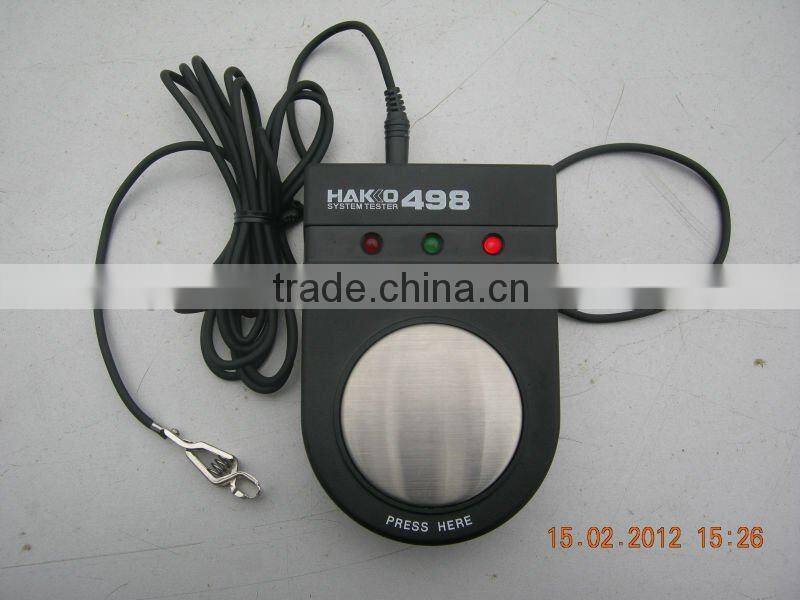

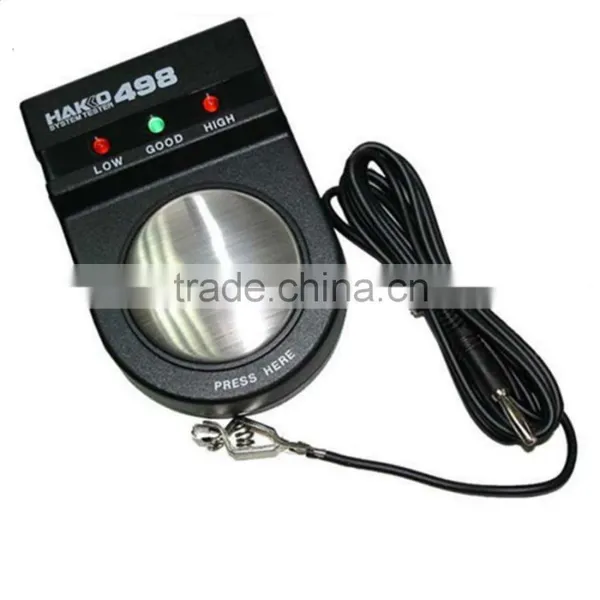

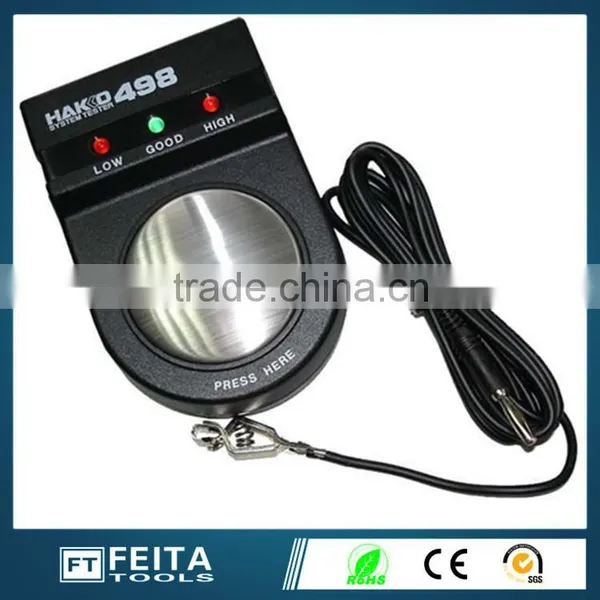

Anti-static Wrist Strap Tester HAKKO 498/ Hakko 498 Anti-static Wrist Strap Tester

Anti-static Wrist Strap Tester HAKKO 498/ Hakko 498 Anti-static Wrist Strap Tester photo-1
Anti-static Wrist Strap Tester HAKKO 498/ Hakko 498 Anti-static Wrist Strap Tester photo-2
Anti-static Wrist Strap Tester HAKKO 498/ Hakko 498 Anti-static Wrist Strap Tester photo-3
Anti-static Wrist Strap Tester HAKKO 498/ Hakko 498 Anti-static Wrist Strap Tester photo-4
Anti-static Wrist Strap Tester HAKKO 498/ Hakko 498 Anti-static Wrist Strap Tester photo-5
Anti-static Wrist Strap Tester HAKKO 498/ Hakko 498 Anti-static Wrist Strap Tester photo-6
US$ 10 - 20 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hakko
Model Number:
498
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Hakko
Model Number 498

atic Wrist Strap Tester HAKKO 498/ hakko 498 anti-static wrist strap tester





Product Description





Model: 498
For the static strap function, HAKKO498 Wrist Strap Tester can quickly and easily check the following: 1. Test static strap and ground wire connection.
2. Test the impedance between skin and Static strap.
3. Test the connection during anti-static access panels, cushion for connecting ground.


Features
1. quickly and easily check ground systems at any place;
2. avoid static electricity to damage the product;
3. Ensure staff safety.


Specifications:

Instruction

Impedance calibration

Buzzer

Low(red)

R<800KΩ

OFF

Good(green)

800KΩ≤R≤9MΩ

ON

High(red)

R>9MΩ

OFF

Outside size 80(W)×40(H) ×117(D)mm

Power source:9V battery

The length of grounding wire:2.5m



Operation
1. Insert the banana plug on the end of the static strap ground cord into the jack located on the front of the wrist strap tester.
2. The wearer of the anti-static wrist strap then pushes the metal pushbutton on the wrist strap tester.
3. A properly operating wrist strap will give an "OK" LED indication on the anti-static wrist strap tester. If either RED "FAIL LOW" or YELLOW "FAIL HIGH" LED's light, and the audible indicator sounds, then the wrist strap should be discarded and replaced with a new one.


Note: After about 50,000 cycles of operation, when the green "GOOD" LED will light up, but did not issue a sound,  Replace the battery.
