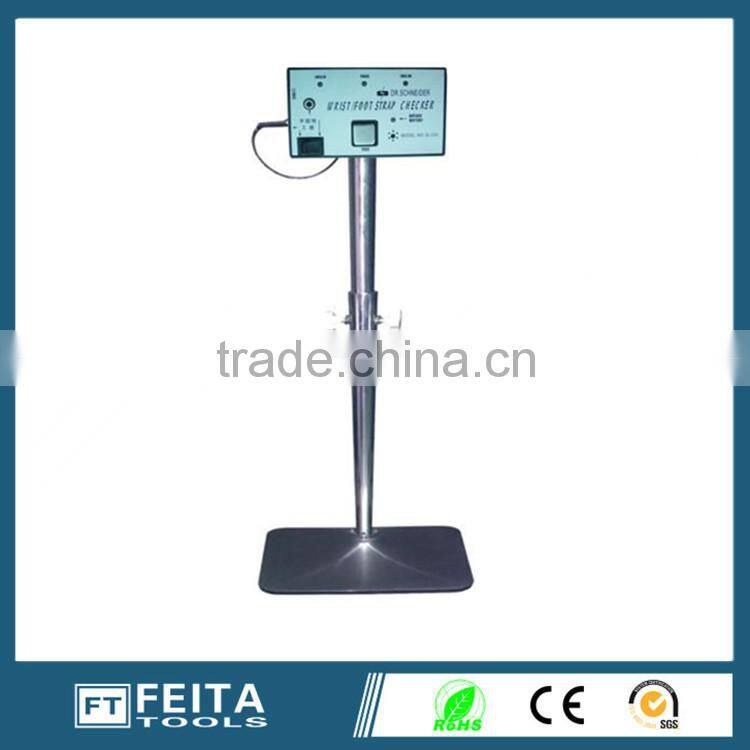

SL-033ESD Wrist and Foot Strap Tester
SL-033 single foot human body production combination tool is to survey the human body synthesis resistance (including human body, skill belt and shoes and so on resistance) designs the installment which with the direct-viewing light emitter diode which demonstrated. This instrument can be bigger than to the human body synthesis resistance when 109Ω and is smaller than 105Ω, carries on the examination and the warning, the SL-033 single foot human body production combination tool compounds 750KΩ-10MΩ the electric circuit (to use in testing skill belt) and 750KΩ-100MΩ the electric circuit (uses in testing shoes), this instrument is tests the skill belt and shoes' ideal selects first.
Simple operation with dual test circuits, tests both wrist straps and foot grounders. Auto-ranging circuit automatically selects proper test range, user touches pad and LED displays test results. Red light and audible indicator mean circuit resistance is too high or too low. It is complied with standard 6.1.3.2 in ANSI ESD S20.20.
It is recommended to calibrate E09 Checker once a year.
Specification
Operating Temperature | 0~31 degree |
Relative Humidity | 0~90% |
Size | Instrument: 142.5(L)×82(W)×39(H); support: 400(L)×250(W)×800(H); footboard: 400(L)×450(W);) |
Weight | 235g |
Decay Test Results
Wrist test margin : 750KΩ-10.5MΩ | Shoe cover test margin , 750KΩ-100MΩ | ||
Resistance tolerance (±20%) | Test output | Resistance tolerance (±20%) | Test output |
≤ 740K Ω | Red (FAIL LO ) | ≤ 740K Ω | Red (FAIL LO )) |
750KΩ | Green (PASS (Normal )) | 750KΩ | Green (PASS (Normal )) |
10. 5MΩ | Green (PASS (Normal )) | 100MΩ | Green (PASS (Normal )) |
≥ 11.5M Ω | Red (FAIL HI (Fail Hi )) | ≥ 40M Ω | Red (FAIL HI (Fail Hi )) |
1.olive Inquires will be replied within 24 hours.
2. Professional manufacturer,two version to show how to operate.Welcome to visit our website.
3. All of our products 100% inspection before shipment, we guarantee to use our products safety.
4. We own the best after-sale service.If there any problems happen, our team will do our best to solve for customers.
5. Faster delivery, 3-7 workdays after we receive the payment
