Home > Industrial Equipment & Components > Engine & Part > Engine > Small 13Hp Petrol/Gasoline Engine With Professional Assembly Line
Small 13Hp Petrol/Gasoline Engine With Professional Assembly Line
US$ 128 - 159
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, general machinery
Fuel:
Gasoline
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Engine Moter 14Hp Gasoline Engine With Parts For SaleUS$ 128 - 168MOQ: 10 Pieces -
Good Quality CE Certificate 4.6kw SIngle Cylinder, 4 Stroke Gasoline EngineUS$ 66 - 100MOQ: 10 Units
-
Good Quality CE Certificate 4kw SIngle Cylinder, 4 Stroke Gasoline EngineUS$ 65 - 100MOQ: 10 Units
-
SC80 3HP 4 Stroke Gasoline Engine With Electrical Key StartUS$ 79 - 99MOQ: 10 Pieces
-
Small Portable Single Cylinder Vertical Shaft 420CC Gasoline Power Engine For SaleUS$ 128 - 168MOQ: 10 Pieces
Condition
New
Usage
Other, general machinery
Fuel
Gasoline
Stroke
4 Stroke
Cylinder
Single Cylinder
Cold Style
Other, Air-cooled
Start
Electric Start
Place of Origin
Chongqing, China
Brand Name
Senci
Model Number
SC390
Dimension(L*W*H)
455*405*445 mm
Weight
33kg
Certification
CE, EPA, CARB,etc.
Warranty
1 year
After-sales Service Provided
Overseas third-party support available

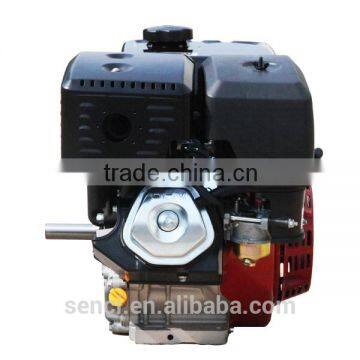

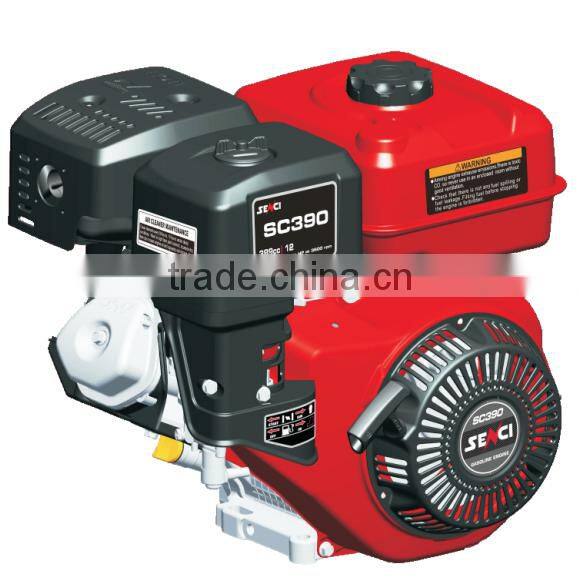

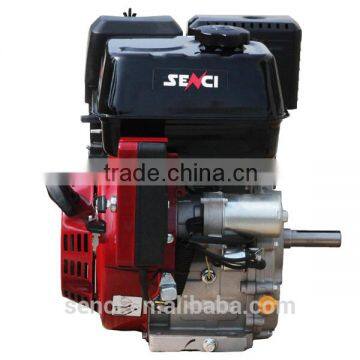

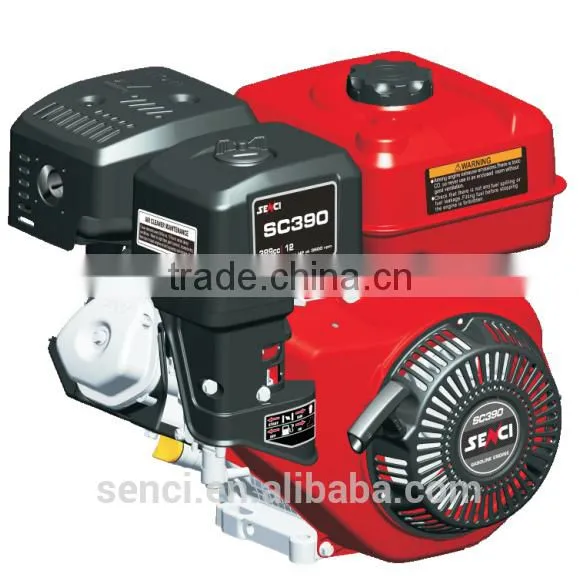

Small 13Hp Petrol/Gasoline Engine With Professional Assembly Line
Mini Single Cylinder Conversion 13HP Gasoline Engine With Air Compressor
Features:
* Overhead valve design(OHV)
Runs cooler, improved fuel economy and longer engine life
* Unique heat release stystem
Surface heat-removal system with low temperature of cylinder and head(less than 225),
low oil temperature(less than 118 degrees) can prolong the service life of the engine.
*Powerful engine
High rated power in inceasing 5% compared with equivalent product.
* Working shock small with low noise(lower than 108db)
* Easy to start
| Gasoline Engine specification | |||||||
| Model No. | SC80 | SC200 | SC230 | SC390 | SC420 | SC460 | SC690 |
| Engine type | Single Cylinder,4 Stroke, Foced Cooling OHV | Single Cylinder,4 Stroke, Foced Cooling OHV | Single Cylinder,4 Stroke, Foced Cooling OHV | Single Cylinder,4 Stroke, Foced Cooling OHV | Single Cylinder,4 Stroke, Foced Cooling OHV | Single Cylinder,4 Stroke, Foced Cooling OHV | Single Cylinder,4 Stroke, Foced Cooling OHV |
| Bore×Stroke | 48.6×43mm | 68×54mm | 70×58mm | 88×64mm | 90×66mm | 92×69mm | 78×72mm |
| Starting system | Recoil/E-start | Recoil/E-start | Recoil/E-start | Recoil/E-start | Recoil/E-start | Recoil/E-start | Recoil/E-start |
| Displacement | 79cc | 196cc | 223cc | 389cc | 420cc | 459cc | 688cc |
| Compression | 8:5:1 | 8:5:1 | |||||
| Reted output(Kw-r/min) | 2.3/4600 | 4.0/3600 | 4.6/3600 | 8.5/3600 | 9.2/3600 | 10/3600 | 12.5/3600 |
| Max Torque/2500(N.m-r/min) | 4.8/2500 | 11.7/2800 | 12.5/2800 | 26/2800 | 28/2800 | 29/2800 | 42/2500 |
| Ignition type | CDI | T.C.I |
T.C.I | T.C.I | T.C.I | T.C.I | T.C.I |
| Fuel Consumption(g/KW/h) | ≤450 | ≤374 | ≤374 | ≤374 | ≤370 | ≤370 | ≤360 |
| Dimensions(mm) | 350×260×340 | 376×320×340 | 376×320×340 | 455×405×445 | 455×405×445 | 455×405×445 | 510×400×565 |
| Net Weight(kg) | 10±0.5 | 17±0.5 | 17±0.5 | 33±0.5 | 33±0.5 | 33±0.5 | 42±0.5 |

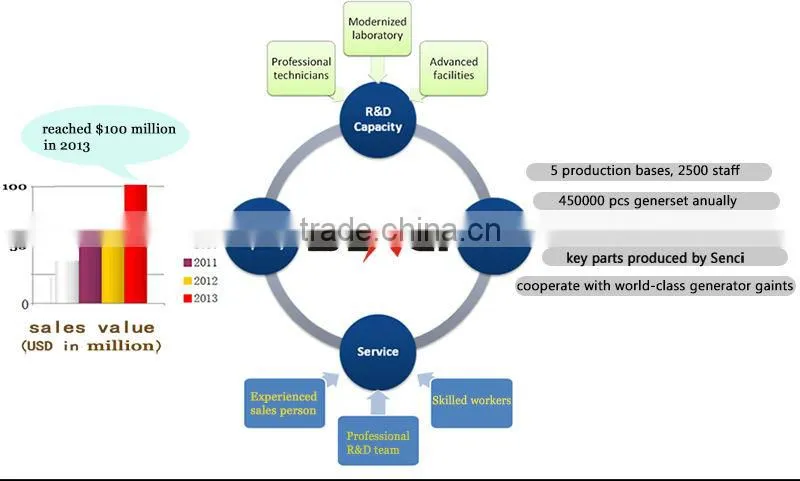

Company Information

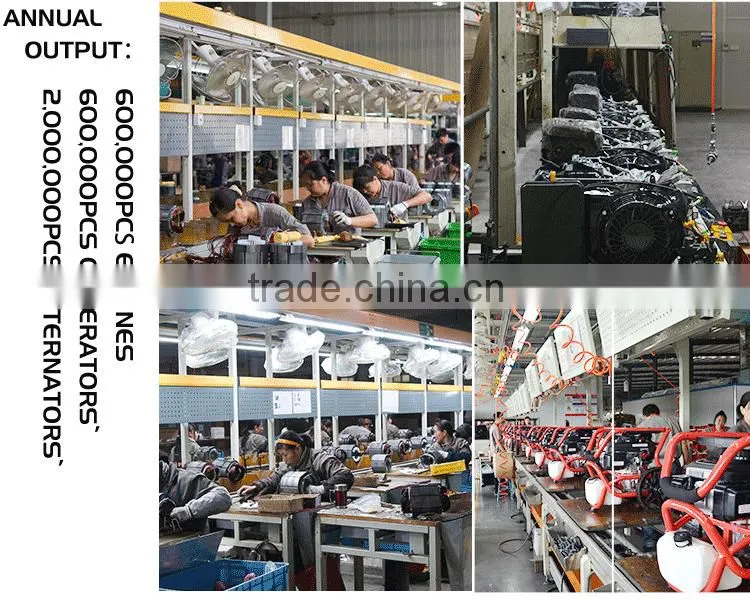

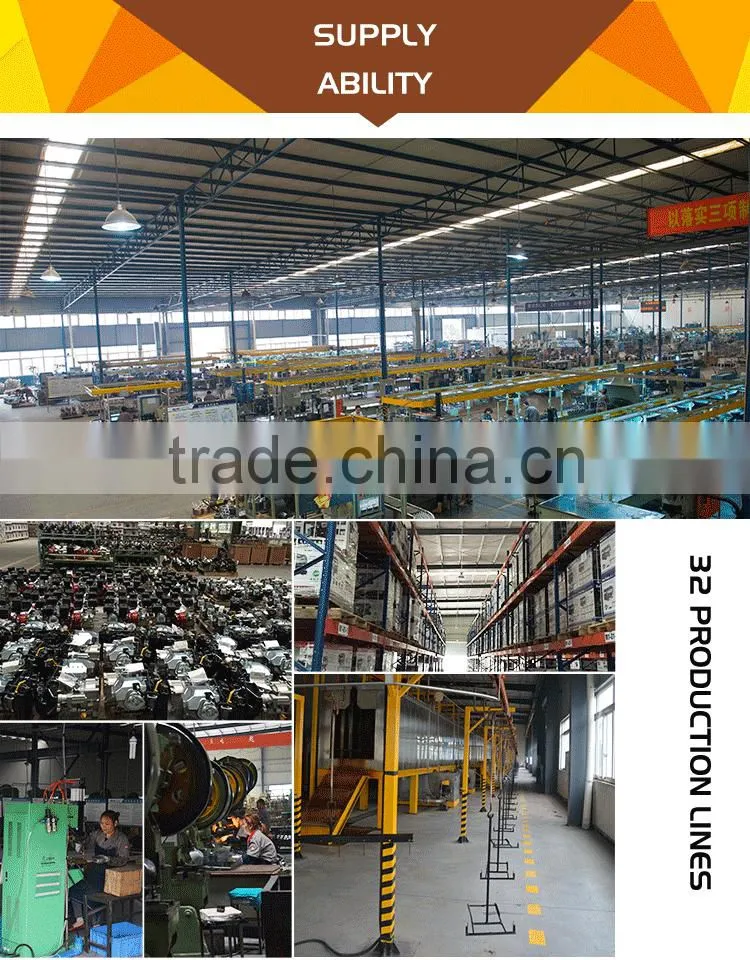

Supply ability

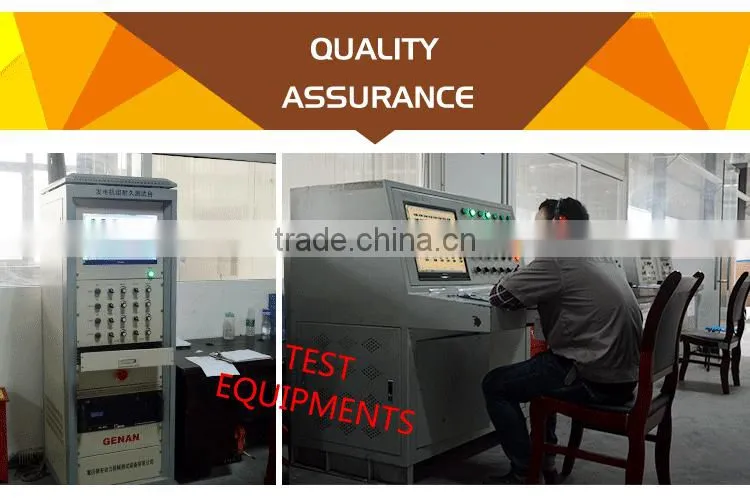

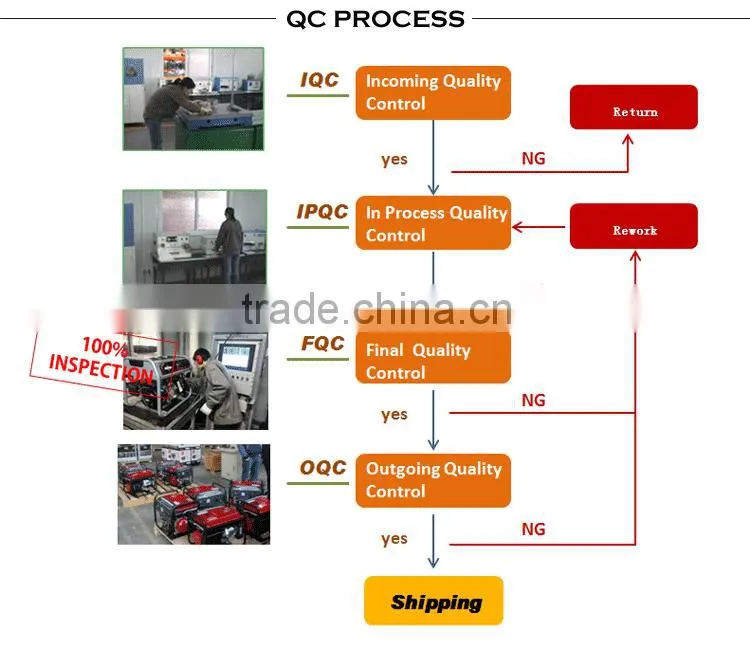

Quality control
Certifications
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2002
Factory Size
10,000-30,000 square meters
Total Employees
201 - 300 People
