ER34615M battery,D size battery,D size spiral 3.6v lithium battery from Ramway
Electrical Characteristic
1.
Norminal capacitY:14.5Ah
(at 10.0mA, +25°C 2.0V cut off.The capacity restored by the cell varies according to current drain,temperature and cut-off)
2.
Rated voltage 3.6V
Maximum continuous current 2000mA
Maximum pulse current capability 3000mA
3.
Dimension Φ34.0*61.5mm
4.
Storage(recommended) Max. 30°C
(For more severe condtions,consult Ramway)
5.
Operating temperature range -60°C~+85°C
(Operation at temperature different from ambient may lead to reduced capacity and lower voltage plateau readings)
6.Typical weight 107g
Key fetures
High and stable operating voltage
Low self discharge rate(less than 1% after 1 year of storage at +25°C)
Stainless steel container
Hermetic glass-to-metal sealing
Non-flammable electrolyte
Bobbin type
CE,SGS recognized,ISO9001 approved
Main applications
Utility metering
Memory back-up
Alarms and security devices
Automative electronics
Tollgate systems
Millitary electronics
Automatic meter reading
professional electronics
Warning
1.Fire,explosion and severe burn hazard.
2.Do not recharge,crush,disassemble,heat above 100°C;
3.Do not solder directly to the cell.

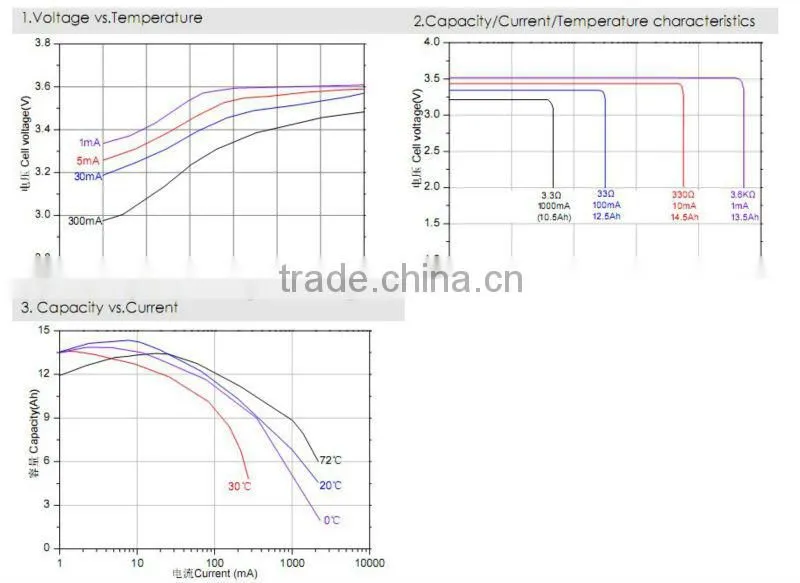

Test curve

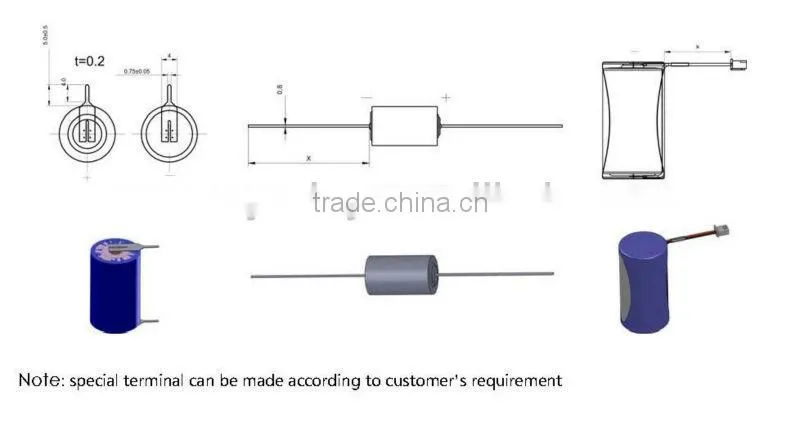

Solder and connector
