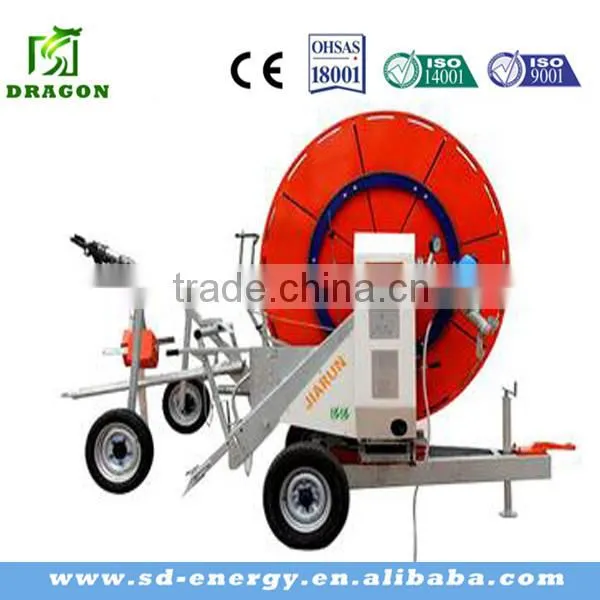

Agricultural irrigation system/hydraulic hose reel irrigation machine
1.Product Description
This machine is the kinetic energy of rotation of a water-driven water turbine gearbox multifunction device driven by the capstan rotation, drag PE pipe nozzles to achieve uniform vehicle recovery,
while the pressure is transferred to the water entering the PE pipe nozzle to achieve normal spray nozzle.
2.Advantage
- Low pressure Agricultural sprinkler irrigation
- Water,Energy and labor saving Agricultural sprinkler irrigation
- Sprinkler effectiveness Agricultural sprinkler irrigation
- Good atomization performance irrigation machine
- Help to increase yield Agricultural sprinkler irrigation
- Small affected by wind and other environment i
- Suitable in all types of soil
- Dust removing in docks&electricity plants Agr
3.Parameters
| Model | PE--pipe Length m |
Max.strip length m |
Flow rate: m3/h |
Weight:KG | Connection pressure bar |
| 65-220sd | 220 | 2*260 | 13-32 | 1270 | 3.5-10.0 |
| 65-250sd | 250 | 2*290 | 13-32 | 1300 | 3.5-10.0 |
| 65-300sd | 300 | 2*340 | 13-32 | 1350 | 3.5-10.0 |
| 65-340sd | 340 | 2*380 | 13-28 | 1570 | 3.5-10.0 |
| 75-200sd | 200 | 2*250 | 13-50 | 1300 | 3.5-10.0 |
| 75-250sd | 250 | 2*300 | 13-50 | 1530 | 3.5-10.0 |
| 75-270sd | 270 | 2*315 | 13-50 | 1550 | 3.5-10.0 |
| 75-300sd | 300 | 2*345 | 13-38 | 1600 | 3.5-10.0 |
| 75-320sd | 320 | 2*365 | 13-38 | 1740 | 3.5-10.0 |
| 75-350sd | 350 | 2*390 | 13-38 | 1780 | 3.5-10.0 |
| 75-400sd | 400 | 2*435 | 13-30 | 1880 | 3.5-10.0 |
| 85-200sd | 200 | 2*250 | 13-60 | 1550 | 3.5-10.0 |
| 85-300sd | 300 | 2*350 | 13-55 | 1800 | 3.5-10.0 |
| 85-320sd | 320 | 2*365 | 17-52 | 1880 | 3.5-10.0 |
| 90-230sd | 230 | 2*280 | 17-65 | 1740 | 3.5-10.0 |
| 90-250sd | 250 | 2*300 | 17-65 | 1770 | 3.5-10.0 |
| 90-280sd | 280 | 2*320 | 17-65 | 1820 | 3.5-10.0 |
| 90-300sd | 300 | 2*350 | 17-65 | 1850 | 3.5-10.0 |

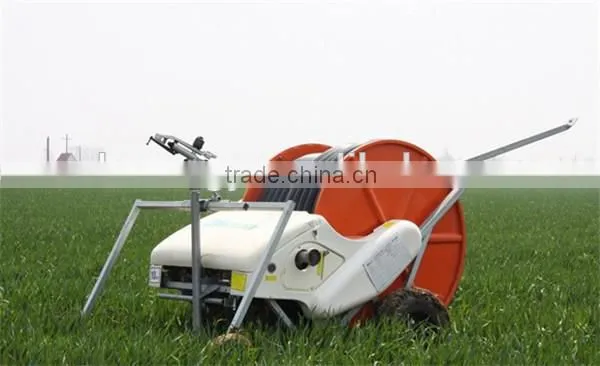

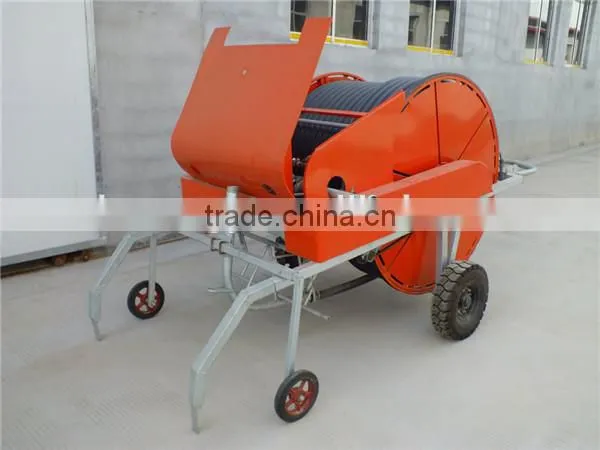

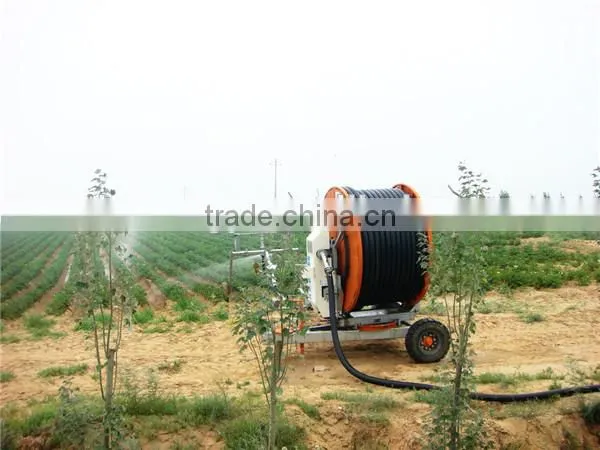

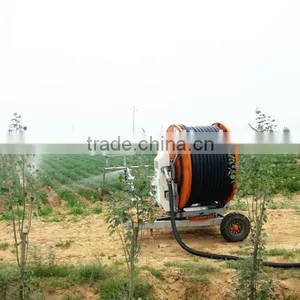

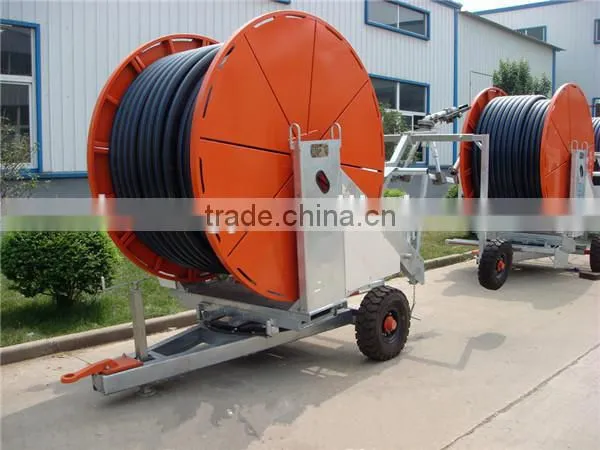

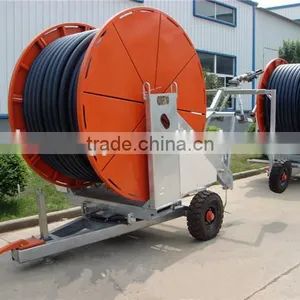

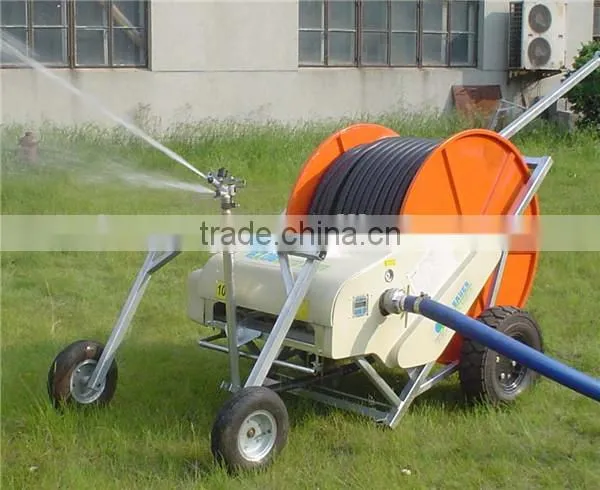

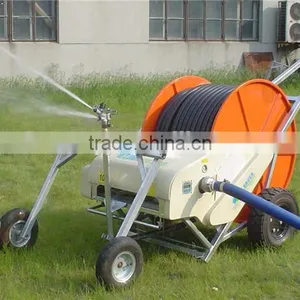

4.Picturers of sprinkler irrigation manchine
5.Parts
1)Water turbine
Water turbine is the heart of the whole machine parts, assembly flow aid in the location of the reel, is the unit working properly powered system, while the flow rate can be adjusted to ensure that the recovery rate of PE pipe evenly.
2) Multifunction device
Multifunction device is a control system for the entire gearbox units, the system can achieve transmission clutch, brake, speed, fast recovery, safe recycling.
3) PE pipes
PE pipe reel irrigation machine using a special polyethylene material, its quality directly affects the life of sprinkler irrigation machines.
4)Automatic speed control device This device through a set of linkage, adjust the tongue of open water turbine degrees, stepless water turbine to ensure PE pipe is wound on the reel to maintain a constant speed between the layers, thus ensuring to keep the car when the nozzle recovery uniform, uniform spray equipments.
5) Guide bar
The key is to guide the guide bar, this guide bar with automatic forward and reverse "8" screw guide system, thread form rectangular thread to thread over the pros and cons sleek junction. It can effectively guarantee the reliability of commutation, PE pipe can ensure a safe and orderly arranged on the reel, and a guide to walk even without catching phenomenon.
6)car
Height of up to 1.5 meters from the ground, but also according to the actual height of tall crops custom, will not damage the growing of crops, Tread can be adjusted in the range of 1.3-2.5 meters.
6.Packaging and Shipping
7.Services advantage:
1. Quick, efficient and professional response within 24 hours, 14 hours online services
2. 8 years manufacturing and exporting experience in agriculture field.
3. Technical support and solution by chief engineer.
4. Strict quality control system & team, high reputation in the market.
5. Full range of irrigation products for choice
6. OEM/ODM services
7. Accept sample order before Mass Order
8. Multilingual communication services (English, Spanish, French, Russian, Japanese.etc.)
