farm irrigation equipment Aquajet agricultural irrigation equipment
1.Product
The aquajet model is a turbine-driven drum irrigation machine designed to deliver a maximum in efficiency and reliability. The fully mechanized and autonomous method of operation requires only a minimum of labor input. Aquajet components, such as turbine, automatic layering mechanism and the sprinkler balancing mechanism for crop-protection are constantly improved to further extend efficiency and reliability.
2.Advantage
- Low pressure Agricultural sprinkler irrigation
- Water-saving Agricultural sprinkler irrigation
- Energy-saving Agricultural sprinkler irrigation
- Sprinkler effectiveness Agricultural sprinkler irrigation
- Good atomization performance irrigation machine
- Reduce labor cost Agricultural sprinkler irrigation
- Help to increase yield Agricultural sprinkler irrigation
- Small affected by wind and other environment i
- Suitable in all types of soil Agri
3.Features
Corrosion protection
Hot-dip galvanization of undercarriage, turntable, sled and shut-off frame provides lasting value by optimum protection of metal parts
Stable pipe reel
The pipe drum is a particularly torsion resistant construction of profiles and edged segments. All cover segments are firmly welded at the drum frame.
Precison chain drive
Precision-manufactured toothed segments for the reel drive guarantee exact chain engagement. This ensures maintenance-free operation and long life of the driving chain even with very high retraction forces.
Layering mechanism for constant PE-pipe retraction
This guarantees constant retraction speed and instant emergency shut-off in case of winding faults. This safety system also actuates the final shut-off of the reel drive at the end of the strip.
Sturdy machine supports
Strong support leg and rack jack firmly anchor the Aquajet during the operating process and not even high retraction forces will move the machine from its stable position.
Automatic cart lift
At the end of the strip, the cart is automatically lifted to its transportation position and the Aquajet is ready for transportation without any extra cart handling requirements.
TWIN wide-range sprinkler
TWIN SR101 wide-range sprinklers are designed specifically for the modern, energy-saving irrigation and pioneer worldwide in terms of the water jet, drop distribution and precipitation.
LCD speedometer
The newly designed LCD speedometer for Aquajet hose reel irrigators can calculate and display the retraction speed quickly,providing a convenient adjustment method for precise precipitation.
4.Parameters
| Model | PE--pipe Length m |
Max.strip length m |
Flow rate: m3/h |
Weight:KG | Connection pressure bar |
| 65-220sd | 220 | 2*260 | 13-32 | 1270 | 3.5-10.0 |
| 65-250sd | 250 | 2*290 | 13-32 | 1300 | 3.5-10.0 |
| 65-300sd | 300 | 2*340 | 13-32 | 1350 | 3.5-10.0 |
| 65-340sd | 340 | 2*380 | 13-28 | 1570 | 3.5-10.0 |
| 75-200sd | 200 | 2*250 | 13-50 | 1300 | 3.5-10.0 |
| 75-250sd | 250 | 2*300 | 13-50 | 1530 | 3.5-10.0 |
| 75-270sd | 270 | 2*315 | 13-50 | 1550 | 3.5-10.0 |
| 75-300sd | 300 | 2*345 | 13-38 | 1600 | 3.5-10.0 |
| 75-320sd | 320 | 2*365 | 13-38 | 1740 | 3.5-10.0 |
| 75-350sd | 350 | 2*390 | 13-38 | 1780 | 3.5-10.0 |
| 75-400sd | 400 | 2*435 | 13-30 | 1880 | 3.5-10.0 |
| 85-200sd | 200 | 2*250 | 13-60 | 1550 | 3.5-10.0 |
| 85-300sd | 300 | 2*350 | 13-55 | 1800 | 3.5-10.0 |
| 85-320sd | 320 | 2*365 | 17-52 | 1880 | 3.5-10.0 |
| 90-230sd | 230 | 2*280 | 17-65 | 1740 | 3.5-10.0 |
| 90-250sd | 250 | 2*300 | 17-65 | 1770 | 3.5-10.0 |
| 90-280sd | 280 | 2*320 | 17-65 | 1820 | 3.5-10.0 |
| 90-300sd | 300 | 2*350 | 17-65 | 1850 | 3.5-10.0 |

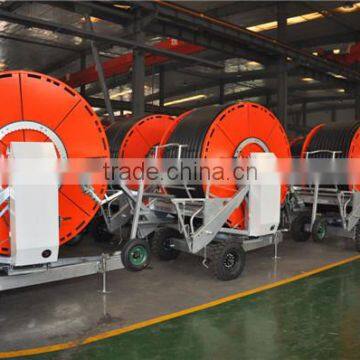

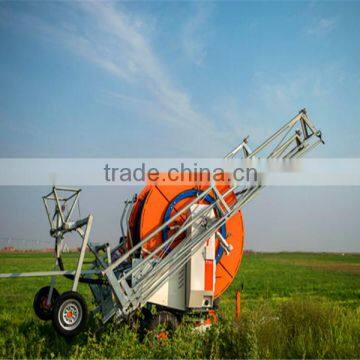

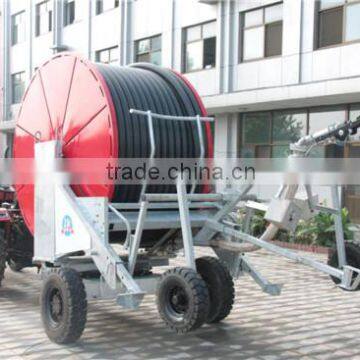

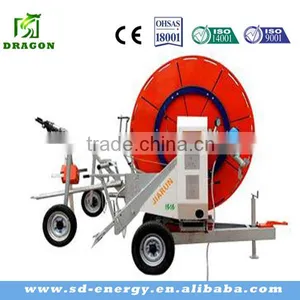

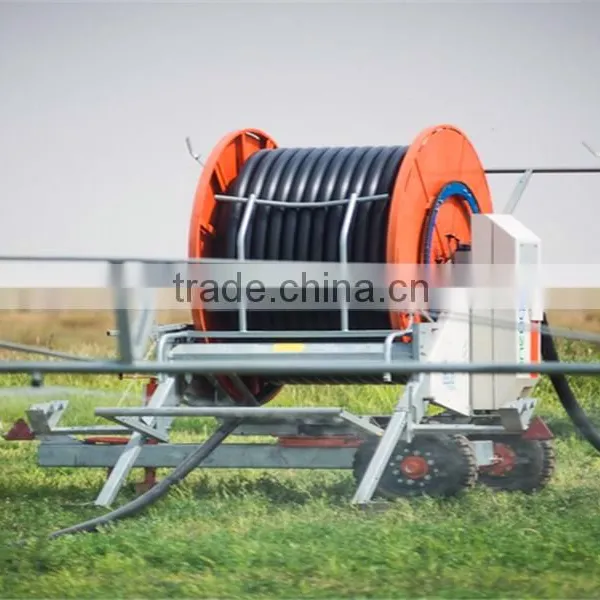

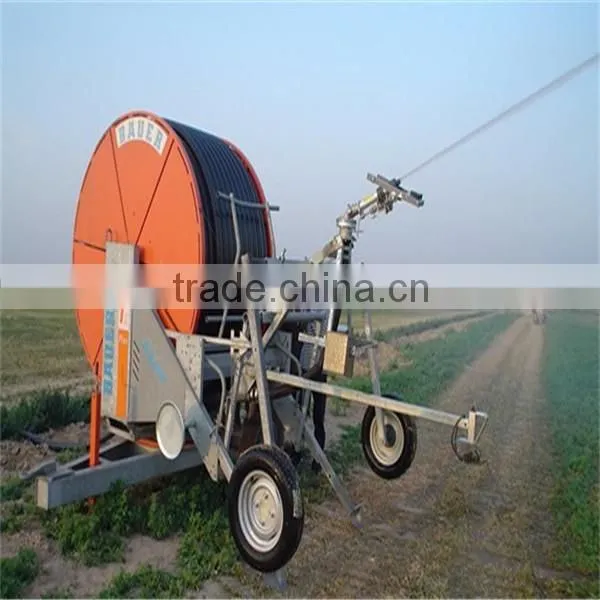

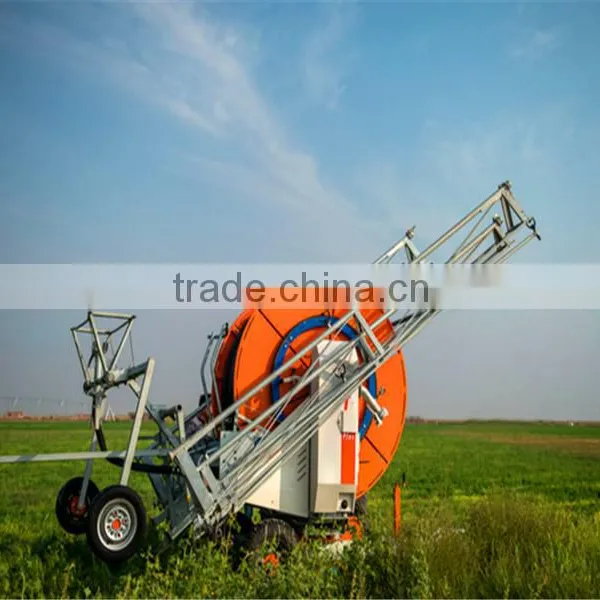

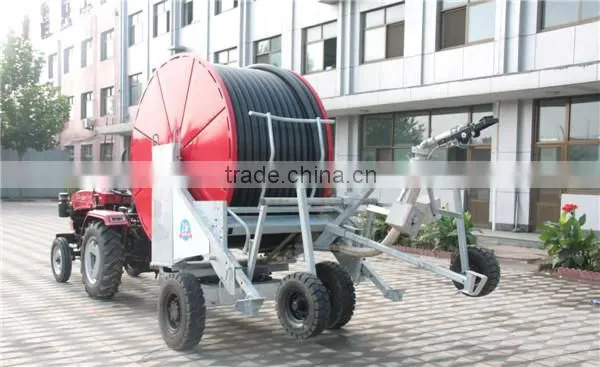

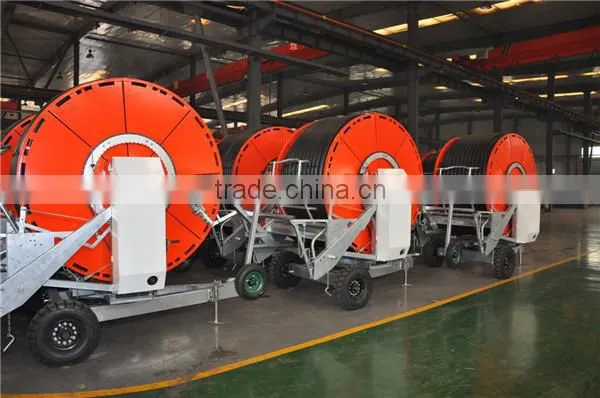

5.Picturers
