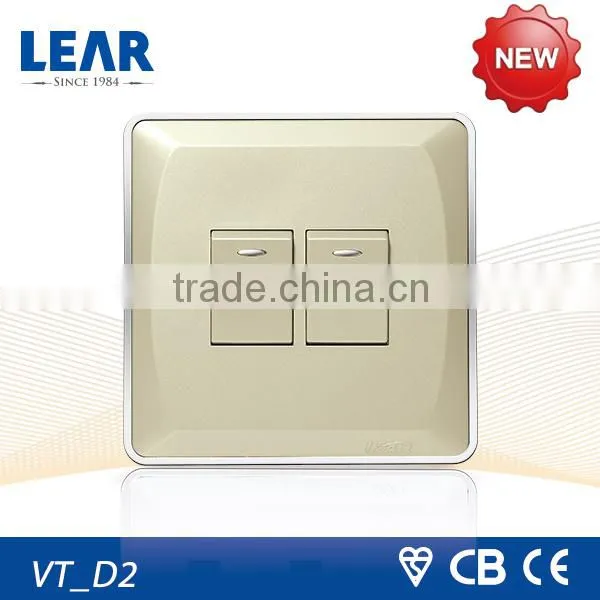

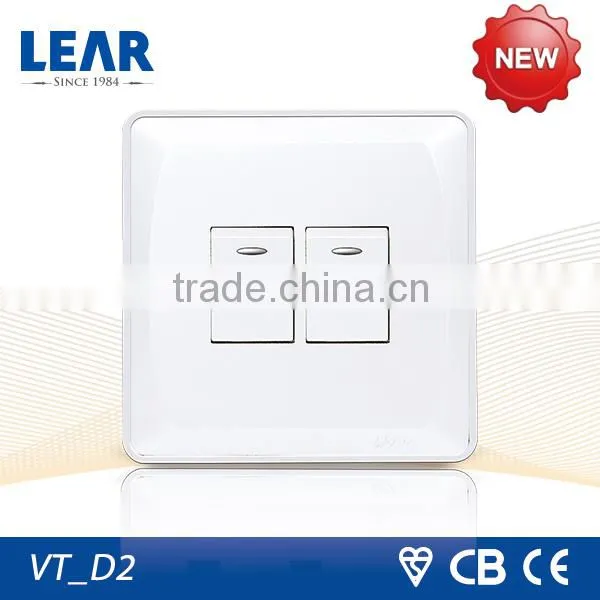

New design fuse switch
Negotiable
/ Piece
1000 Pieces(Min.Order)
- 3000 Piece / Pieces per Month
- Shanghai Port
- T/T Credit Card
You May Like
-
Original GO SWITCH switch
-
Original TOPWORX valve position feedback switch
-
Original TOPWORX switch
-
New arrival curved glass touch panel switch ZigBee aluminum frame Tuya smart home light wall switch
-
Xiaomi Mijia Smart Light Sensor Zigbee 3.0 Intelligent Linkage Waterproof Work With Smart Multimode Gateway mi home
-
Xiaomi Mijia Smart Switch Wall Switch Single & Dual Open BT Remoto Control Voice Control Smart Light for Mi Home APP
Product Details
| Place of Origin: | China | Brand Name: | LEAR | Model Number: | VT_D2 |
| Size: | 86*86cm | Max. Current: | 10A | Max. Voltage: | 250V |
| Mechanical Life: | More than 4,000 times operation |
Product Description
Characteristics
Vista series switch socket 5.4MM Ultra-Slim Profile with Streamline Appearance, Various Colors Available For Your Choice. 1,Allow Clients Choose To Combine Different Functions and A Custom Combination Of Modules 2,High Quality Silver Oxide Material Used In Contact Points 3,Inside Electric Conductive Parts Used Top Class Phosphor Bronze, And Brass, Ensure Our Switch & Socket To Have A Good Electrical Conductivity And Lasting Elasticity 4,High Strength PC Panel Make Switch And Socket To Be High Temperature Resistant, Abrasion Resistant, And Corrosion Resistant |
A
Main | |
Range of product | Vista series |
| Product code | VT_D2 |
| Product name | New design fuse switch |
| Product or component type | Switch |
| Device presentation | Complete mechanism |
| Complementary | |
| Switch function | 1-way |
| Actuator | Rocker |
| Pilot light | None |
| Number of gangs | 2 gang |
| Colour tint | White,champagne,silver |
| Projecting depth | 8 mm |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Embedding depth | >= 35 mm |
| Rated current | 10 AX |
| Rated operational voltage | 250 V AC |
| Network frequency | 50-60HZ |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Brass pillar terminal |
Terminal identifier
| COM L1 L2 |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity | 2.5 mm² |
| Width | 86mm |
| Height | 86mm |
| Material | |
| Front-plate | Polycarbonate |
| Back-frame | Polycarbonate |
| Back-base | Polycarbonate |
| Contacts material | Silver |
| Conductive parts | Brass and phosphor bronze |
| Environment | |
Standards
| IEC 60669-1 |
| Ambient air temperature for operation | -5...40 °C |
| Relative humidity | 0...95 % |
| Environmental characteristic | Indoor use |
| Contractual warranty | |
| Period | 10 YEARS |
Packaging & Shipping
Packaging&Shipping
| Quantity per Carton | 10PCS/Box,100PCS/Carton |
| Carton Dimension | 50.5x33x22.8cm |
| G.W/Carton | |
| N.W/Carton |
