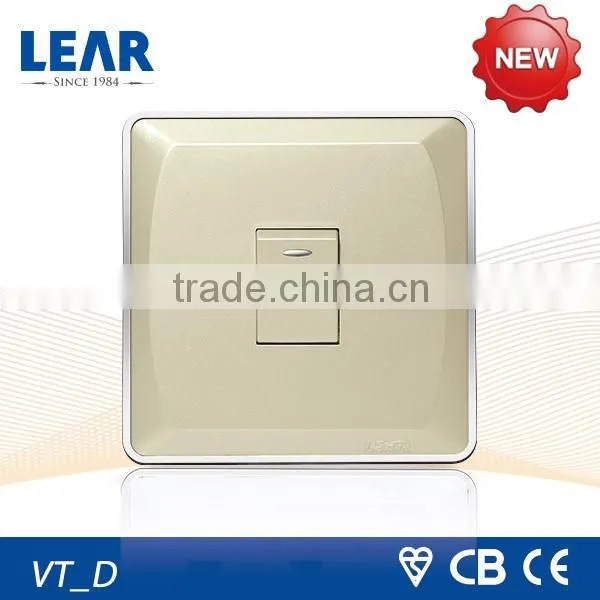

Most popular vista series electric switch

Name: Most popular vista series electric switch
Brand: LEAR
Price: Negotiable

FOB Price

Negotiable / Piece

1000 Pieces(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Shanghai Port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	China	Brand Name:	LEAR	Model Number:	VT_D
Size:	86*86cm	Max. Current:	10A	Max. Voltage:	250V
Mechanical Life:	More than 4,000 times operation

Product Description

_{Characteristics}

Vista series switch socket

5.4MM Ultra-Slim Profile with Streamline Appearance, Various Colors Available For Your Choice.

1,Allow Clients Choose To Combine Different Functions and A Custom Combination Of Modules

2,High Quality Silver Oxide Material Used In Contact Points

3,Inside Electric Conductive Parts Used Top Class Phosphor Bronze, And Brass, Ensure Our Switch & Socket To Have A Good Electrical Conductivity And Lasting Elasticity

4,High Strength PC Panel Make Switch And Socket To Be High Temperature Resistant, Abrasion Resistant, And Corrosion Resistant

Main
Range of product	Vista series
Product code	VT_D
Product name	1 gang 1 way switch
Product or component type	Switch
Device presentation	Complete mechanism
Complementary
Switch function	1-way
Actuator	Rocker
Pilot light	Neon indicator lamp
Number of gangs	1 gang
Colour tint	White,champagne,silver
Projecting depth	8 mm
Device mounting	Flush
Mounting support	Wall mounted
Fixing mode	By screw M3.5
Fixing center	60.3 mm
Embedding depth	>= 35 mm
Rated current	10 AX
Rated operational voltage	250 V AC
Network frequency	50-60HZ
Contacts material	Brass and phosphor bronze
Connections - terminals	Brass pillar terminal
Terminal identifier	COM L1 L2
Tightening torque	0.4 N.m
Clamping connection capacity	2.5 mm²
Width	86mm
Height	86mm
Material
Front-plate	Polycarbonate
Back-frame	Polycarbonate
Back-base	Polycarbonate
Contacts material	Silver
Conductive parts	Brass and phosphor bronze
Environment
Standards	IEC 60669-1 MS IEC 60669-1 SS 227
Ambient air temperature for operation	-5...40 °C
Relative humidity	0...95 %
Environmental characteristic	Indoor use
Contractual warranty
Period	10 YEARS

Packaging & Shipping

Packaging&Shipping

Quantity per Carton	10PCS/Box,100PCS/Carton
Carton Dimension	50.5x33x22.8cm
G.W/Carton
N.W/Carton
