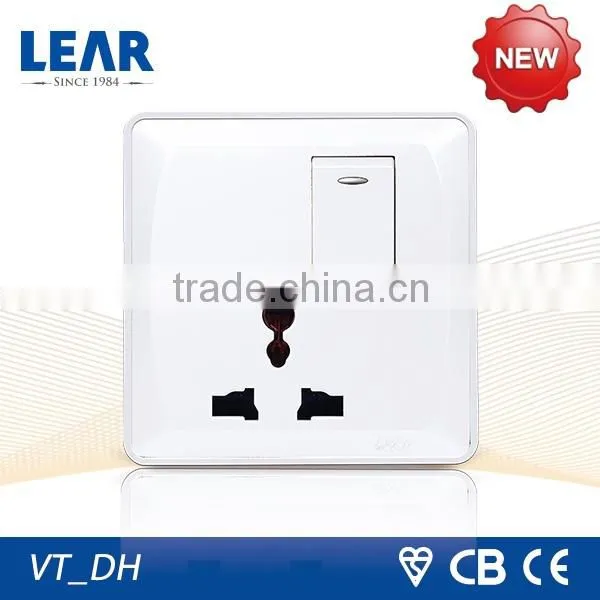

Newest Design Vista Series Flush Type Wall Socket
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LEAR
Model Number:
VT_DH-13
Size:
86mm*86mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Newest Design Vista Series 1 Gang 2 Pin SocketNegotiableMOQ: 1000 Pieces -
Newest Design Vista Series Socket Outlet SwitchNegotiableMOQ: 1000 Pieces
-
Newest Design Vista Series Pakistan Socket and SocketNegotiableMOQ: 1000 Pieces
-
Newest Design Vista Series Electrical Switch SocketNegotiableMOQ: 1000 Pieces
-
Newest Design Vista Series Electrical Socket TimerNegotiableMOQ: 1000 Pieces
Brand Name
LEAR
Model Number
VT_DH-13
Size
86mm*86mm
Max. Current
13AX
Max. Voltage
250V AC
Mechanical Life
40000 times
Characteristics
|
Vista series switches&sockets 5.4MM Ultra-Slim Profile with Streamline Appearance, Various Colors Available For Your Choice. 1, Allow Clients Choose To Combine Different Functions and A Custom Combination Of Modules 2, High Quality Silver Oxide Material Used In Contact Points 3, Inside Electric Conductive Parts Used Top Class Phosphor Bronze, And Brass, Ensure Our Switch & Socket To Have A Good Electrical Conductivity And Lasting Elasticity 4, High Strength PC Panel Make Switch And Socket To Be High Temperature Resistant, Abrasion Resistant, And Corrosion Resistant |
Main | |
Range of product |
Vista series |
| Product code | VT_DH-13 |
| Product name |
Vista series flush type wall socket |
| Product or component type | Socket-outlet |
| Device presentation | Complete mechanism |
| Outlet standard | Universal |
| Complementary | |
| Outlet poles configuration | 2P+E |
| Pilot light |
None |
| Number of gangs | 1 gang |
| Colour tint | White,Silver ,Champagne,Off-white color |
| Projecting depth | 5.4 mm |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Embedding depth | >= 35 mm |
| Rated current | 13 AX |
| Rated operational voltage | 250 V AC |
| Network frequency | 50-60HZ |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Brass pillar terminal |
|
Terminal identifier
|
L N E |
| Tightening torque |
0.4 N.m |
| Clamping connection capacity | 2 x 4 mm² 3 x 2.5 mm² |
| Width | 86mm |
| Height | 86mm |
|
Material | |
| Front-plate | Polycarbonate with electroplated ring |
| Back-frame | Polycarbonate |
| Back-base | Polycarbonate |
| Switch contacts material |
Silver |
| Conductive parts | Brass and phosphor bronze |
| Environment | |
|
Standards
|
IEC 60884 |
| Ambient air temperature for operation | -5...40 °C |
| Relative humidity | 0...95 % |
| Environmental characteristic |
Indoor use |
| Contractual warranty | |
| Period |
12 YEARS |
Packaging & Shipping
Packaging&Shipping
| Quantity per Carton | 10PCS/Box,100PCS/Carton |
| Carton Dimension | 50.5x33x22.8cm |
| G.W/Carton | |
| N.W/Carton |
