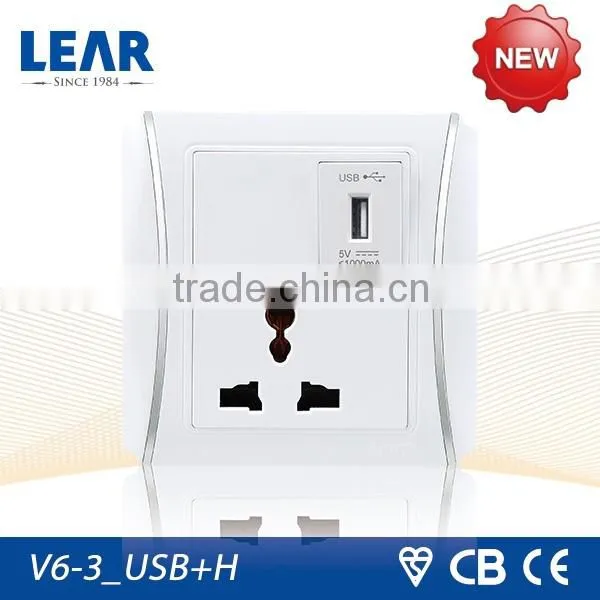

electrical socket usb 220v
- 3000 Piece / Pieces per Month
- Shanghai Port
- T/T Credit Card PayPal
- Original GO SWITCH switch
- Original TOPWORX valve position feedback switch
- Original TOPWORX switch
- New arrival curved glass touch panel switch ZigBee aluminum frame Tuya smart home light wall switch
- Xiaomi Mijia Smart Light Sensor Zigbee 3.0 Intelligent Linkage Waterproof Work With Smart Multimode Gateway mi home
- Xiaomi Mijia Smart Switch Wall Switch Single & Dual Open BT Remoto Control Voice Control Smart Light for Mi Home APP
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | LEAR | Model Number: | V63_USBH |
Size: | 86*86cm | Max. Current: | 16A | Max. Voltage: | 250V |
Mechanical Life: | More than 40,000 times On-Off |
Product Description
Characteristics
V6-3 series switches&sockets Concise and simple profile, easy installation by adopting 1mm steel back frame, more closely fit into wall. 1,The first to create unique structure, more easy and quick for installation. 2,This switch only need one time take-down, and no need to consider the direction of button before installation. 3,Inside electric structure use top class Phosphor bronze, and brass for good electric conduction. 4,With steel framework for long durability and high quality PC for high temperature resistant, abrasion resistant & corrosion resistant. 5,Installation is quick and easy.
|
A
Main | |
Range of product | V6-3 series |
Product code | V6-3_USBH |
Product name | electrical socket usb 220v |
Product or component type | Outlet-socket |
Device presentation | Complete mechanism |
Complementary | |
Number of gangs | 1 gang |
Colour tint | White,Champagne,Silver |
Projecting depth | 8 mm |
Device mounting | Flush |
Mounting support | Wall mounted |
Fixing mode | By screw M3.5 |
Fixing center | 60.3 mm |
Embedding depth | >= 35 mm |
Rated current | 16 AX |
Rated operational voltage | 250V AC |
Network frequency | 50-60HZ |
Output current of USB port | 2.1A |
Output voltage of USB port | 5V AC |
Contacts material | Brass and phosphor bronze |
Connections - terminals | Brass pillar terminal |
Terminal identifier
| L E |
Tightening torque | 0.4 N.m |
Clamping connection capacity | 2.5 mm² |
Width | 86mm |
Height | 86mm |
Material | |
Front-plate | Polycarbonate |
Back-frame | 1.2mm steel |
Back-base | Polycarbonate |
Conductive parts | Brass and phosphor bronze |
Environment | |
Standards
| IEC 60669-1 |
Ambient air temperature for operation | -5...40 °C |
Relative humidity | 0...95 % |
Environmental characteristic | Indoor use |
Contractual warranty | |
Period | 10 YEARS |
Packaging&Shipping
Quantity per Carton | 10PCS/Box,100PCS/Carton |
Carton Dimension | 50.5x33x22.8cm |
G.W/Carton | |
N.W/Carton |
