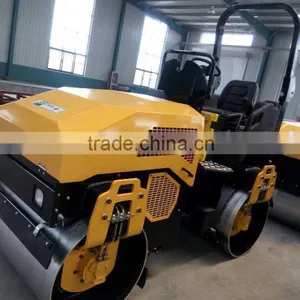

Help Center4Ton Vibratory Road Roller
Related Products
Features
- Specs
| ITEM | SR04D-5 | ||
|---|---|---|---|
| Weights | Operating weight(Kg) | 4066 | |
| Axle load,drum(Kg) | 2000 | ||
| Axle load,wheel(Kg) | 2066 | ||
| Static linear load,(at drum)(N/cm) | 145/145 | ||
| Drum and Tires | Max.Working width(mm) | 1380 | |
| Drum diameter(mm) | 900 | ||
| Drum shell thickness(mm) | 16 | ||
| Number of padfeet | - | ||
| Height of the padfoot(mm) | - | ||
| Tire size | - | ||
| Vibratory System | Frequency,(HZ) | - | |
| High amplitude | 50 | ||
| Low amplitude | |||
| Nominal amplitude(mm) | - | ||
| High | 0.5 | ||
| Low | - | ||
| Centrifugal force(KN) | - | ||
| Maximum | 35 | ||
| Minumum | 35 | ||
| Drive Train | Forward speed(km/h) | 1 | 0-10 |
| 2 | - | ||
| 3 | - | ||
| 4 | - | ||
| Reverse speed(km/h) | 1 | 0-10 | |
| 2 | - | ||
| 3 | - | ||
| 4 | - | ||
| Max. Climbing ability(%) | 30 | ||
| Drive system | Hydrostatic | ||
| Power Train | make&model | DEUTZ D2011L3I | |
| Type | Turbocharged | ||
| Fuel | Diesel | ||
| Cooling | air-cooled | ||
| Number of cylinders | 3 | ||
| Rated power(kw) | 34.4 | ||
| Rated speed(rpm) | 2600 | ||
| Electrical System | DC,negative ground(V) | - | |
| Alterntor(V,A) | - | ||
| Batteries | - | ||
| Brakes | Service brake | Hydrostatic | |
| Parking brake | mechanical | ||
| Steering | Steering system | Oscillatiing, articulating | |
| Steering method | Hydrostatic | ||
| Steering angle(Grad) | ±30° | ||
| Oscillating angle(Grad) | ±10° | ||
| Machine Dimensions | Overall length(mm) | 2725 | |
| Overall width(mm) | 1485 | ||
| Overall height(mm) | 2750 | ||
| Miscellaneous | Min. Turning radius(mm) | 2885 | |
| Fuel capacity(L) | 50 | ||
About us
Shandong Hengji Group CO.,LTD. Was established under the highly concern by Shantui competent department in 2008 . The main business are Shantui Products parts .We are the OEM factory of SHANTUI Komatsu XCMG Zoomlion and so on . We are also the Sales agent of SHANTUI Bulldozer ,Excavator , Road Roller , Wheel Loader , Forklift .and so on .
MainProduct
We can supply all kinds of construction machine and related spare parts for bulldozer & excavator & Road roller .Take the SHANTUI bulldozer track shoe for example, we have the idler, sprocket, track roller/ bottom roller, carrier roller/ top roller, track shoe, track link, track adjuster, recoil spring, yoke, cylinder, etc. If you can't find what you are looking for in the list, please feel free to contact us.
The Main Export Series Products:
1. Transmission & Final Drive
2. Casting Products
3. Structural Products
4. Outstanding –Performance Bulldozer and Excavator
5. High-efficient Vibratory Road Roller
6. Outstanding-performance Motor Grader
7. Excellent-quality Wheel Loader
8. Counterbalanced Forklift
9. Counterbalanced Diesel Forklift
10. Multi-Functional paver
11. Quick and High Efficient Concrete Mixer
1.Delivery
2.Warranty
Q: How about the Warranty
A: All Machine that we sell Enjoy 1 year warranty , If any parts breaks during warranty , We will resend you new one spare parts
