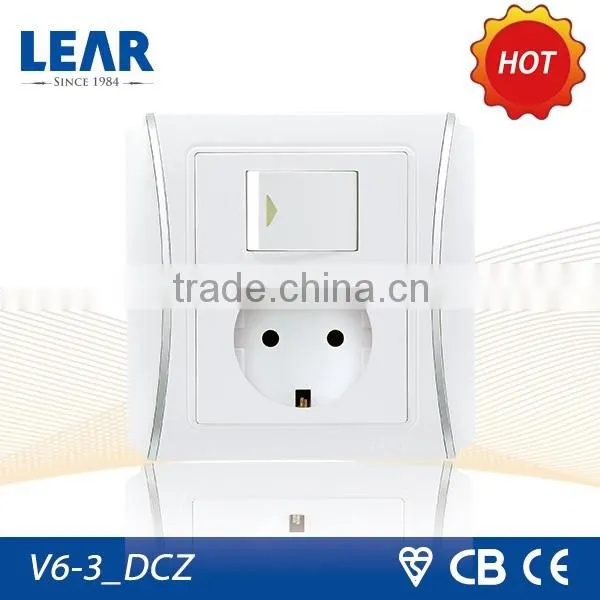

Newest Design V6-3 Series High Quality Euro Wall Socket
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LEAR
Model Number:
V63_DCZ
Size:
86mm*86mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Newest Design V6-3 Series British Socket OutletNegotiableMOQ: 1000 Pieces -
Newest Design V6-3 Series Sockets and SwitchesNegotiableMOQ: 1000 Pieces
-
Newest Design V6-3 Series Wall Multi Outlets SocketNegotiableMOQ: 1000 Pieces
-
Newest Design V6-3 Series Plugs and SocketsNegotiableMOQ: 1000 Pieces
-
Newest Design V6-3 Series Wall Switch and Socket ukNegotiableMOQ: 1000 Pieces
Brand Name
LEAR
Model Number
V63_DCZ
Size
86mm*86mm
Max. Current
10AX
Max. Voltage
250V AC
Mechanical Life
40000 times
Product Description
Characteristics
|
V6-3 series switches&sockets Ultra-Large Glow-In-The-Dark Design with Imported Material From U.S, for Longer Using Time, Greater Brightness, as well as Aesthetic Perception; Illustrated By 2 Arch Lines On Front-Plate. 1, Ultra-Large Glow-In-The-Dark design for Longer Using Time And Greater Brightness 2, Available In Various Colors, Arch Decoration Bars Can Be Renewed At Any Time 3, Client May Combine Switch And Socket Modules According To Actual Demands 4, Full Product Line Ranges From 1To 10 Gang Switches 5, Adopt Copper Terminal, Copper Screws For Easy Wiring 6, High Strength PC, Fire Resistant, Abrasion Resistant, And Corrosion Resistant, Copper Terminal, Silver Contact,Are Used Inside For Good Electrical Conductivity |
Main | |
Range of product |
V6-3 series |
| Product code | V63_DCZ |
| Product name |
V6-3 series high quality euro wall socket |
| Product or component type | Socket-outlet |
| Device presentation | Complete mechanism |
| Outlet standard | European standard |
| Complementary | |
| Outlet poles configuration | 2P+E |
| Pilot light |
None |
| Number of gangs | 1 gang |
| Colour tint | White,Silver ,Champagne,Off-white color |
| Projecting depth | 5.4 mm |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Embedding depth | >= 35 mm |
| Rated current | 10 AX |
| Rated operational voltage | 250 V AC |
| Network frequency | 50-60HZ |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Brass pillar terminal |
|
Terminal identifier
|
L N E |
| Tightening torque |
0.4 N.m |
| Clamping connection capacity | 2 x 4 mm² 3 x 2.5 mm² |
| Width | 86mm |
| Height | 86mm |
|
Material | |
| Front-plate | Polycarbonate with electroplated ring |
| Back-frame | Polycarbonate |
| Back-base | Polycarbonate |
| Switch contacts material |
Silver |
| Conductive parts | Brass and phosphor bronze |
| Environment | |
|
Standards
|
IEC 60884 |
| Ambient air temperature for operation | -5...40 °C |
| Relative humidity | 0...95 % |
| Environmental characteristic |
Indoor use |
| Contractual warranty | |
| Period |
12 YEARS |
Packaging & Shipping
Packaging&Shipping
| Quantity per Carton | 10PCS/Box,100PCS/Carton |
| Carton Dimension | 50.5x33x22.8cm |
| G.W/Carton | |
| N.W/Carton |
Certifications
