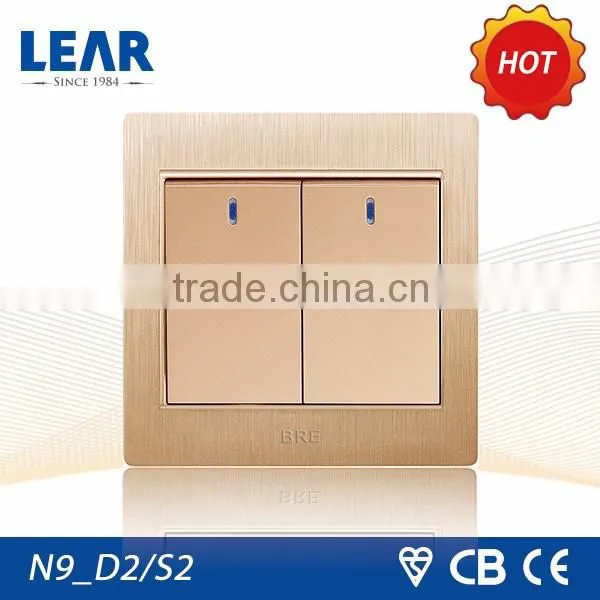

Top Quality N9 Range Mcb Switch

Name: Top Quality N9 Range Mcb Switch
Brand: LEAR
SKU: 120027147
Availability: InStock

Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

LEAR

Model Number:

N9_S2

Size:

86mm*86mm

Lear Electric (Kunshan) Industry Appliance Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Brand Name LEAR

Model Number N9_S2

Size 86mm*86mm

Max. Current 16AX

Max. Voltage 250V AC

Mechanical Life 40000 on-off times

_{Characteristics}

Concise and simple profile, easy installation.

Fire resistant by adopting high strength PC materisal.

Inside electric struction using top class Phosphor copper for good electric conduction.

Main
Range of product	N9 series
Product code	N9_S2
Product name	2 gang 2 way mcb switch
Product or component type	16A
Device presentation	250V~
Complementary
Switch function	2-way
Actuator	Rocker
Pilot light	None
Number of gangs	2 gang
Colour tint	Gold color or silver color
Projecting depth	8 mm
Device mounting	Flush
Mounting support	Wall mounted
Fixing mode	By screw M3.5
Fixing center	60.3 mm
Embedding depth	>= 35 mm
Rated current	16 AX
Rated operational voltage	250 V AC
Network frequency	50-60HZ
Contacts material	Brass and phosphor bronze
Connections - terminals	Brass saddle terminal
Terminal identifier	COM L1 L2
Tightening torque	0.4 N.m
Clamping connection capacity	2.5 mm²
Width	86mm
Height	86mm
Material
Front-plate	Polycarbonate with painting
Back-frame	1.2mm steel
Back-base	Polycarbonate
Contacts material	Silver
Conductive parts	Brass and phosphor bronze
Environment
Standards	IEC 60669-1 MS IEC 60669-1 SS 227
Ambient air temperature for operation	-5...40 °C
Relative humidity	0...95 %
Environmental characteristic	Indoor use
Contractual warranty
Period	12 YEARS
