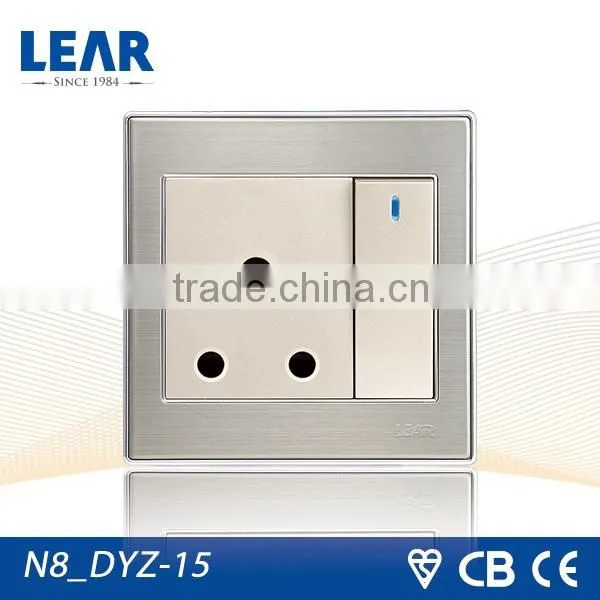

Latest Design 15A 1 Gang Switched Socket

Name: Latest Design 15A 1 Gang Switched Socket
Brand: LEAR
SKU: 120026935

Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

LEAR

Model Number:

N8_DYZ-15

Lear Electric (Kunshan) Industry Appliance Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name LEAR

Model Number N8_DYZ-15

Size 86*86cm

Max. Current 15A

Max. Voltage 250V

Mechanical Life More than 15000 times

Product Description

_{Characteristics}

N8 series switch&socket

Fashionable and modern product profile, unique from-plate structure design, easy for installation.

1,Front-plate is made of high grade stainless steel , and properly treated

2,More safety and reliable by using 1 mm back product frame

3,Unique structure integrating switch front-plate with button, only take off one time to have switch fixed into wall

4, High quality copper terminals applied for low electrical resistance and good conductivity

5,Applied high grade PC material, good fire resistant capability, keep good figure and color after long time of using

6,High quality copper applied for low electrical resistance and good conductivity

7,Available in various colors

Main
Range of product	N8 series
Product code	N8_DYZ-15
Product name	15A 1 gang switched socket
Product or component type	Switch-outlet with switch
Device presentation	Complete mechanism
Complementary
Outlet poles configuration	2P + E
Actuator	Small rocker
Pilot light	None
Number of gangs	1 gang
Colour tint	Silver stainless steel+champagne
Projecting depth	8 mm
Device mounting	Flush
Mounting support	Wall mounted
Fixing mode	By screw M3.5
Fixing center	60.3 mm
Embedding depth	>= 35 mm
Rated current	15 AX
Rated operational voltage	250 V AC
Network frequency	50-60HZ
Contacts material	Brass and phosphor bronze
Connections - terminals	Brass pillar terminal
Terminal identifier	L N Earth
Tightening torque	0.4 N.m
Clamping connection capacity	24 mm² 32.5 mm²
Width	86mm
Height	86mm
Material
Front-plate	#304 stainless steel +Polycarbonate with painting
Back-frame	1.2mm steel
Back-base	Polycarbonate
Contacts material	Silver
Conductive parts	Brass and phosphor bronze
Environment
Standards	MS 589 SS 145 BS 546
Ambient air temperature for operation	-5...40 °C
Relative humidity	0...95 %
Environmental characteristic	Indoor use
Contractual warranty
Period	10 YEARS
