fiber optical jack / fiber socket DQT(R)-016A
1. Product Specifications
Optical Fiber Transmitting Module Electro-Optical Characteristics
Parameter |
Symbol |
Conditions |
MIN. |
TYP. |
MAX. |
Unit |
|
Peak emission wavelength |
λp |
|
… |
660 |
|
nm |
|
Optical power output coupling with fiber |
Pc |
Refer to Fig.1 |
-21 |
-18 |
-15 |
dBm |
Dissipation current |
Icc |
Refer to Fig .2 |
3 |
… |
7 |
mA |
High level inprt voltage |
ViH |
Refer to Fig .2 |
2.0 |
… |
Vcc |
V |
Low level input voltage |
ViL |
Refer to Fig .2 |
… |
… |
0.8 |
V |
Low High delay time |
tpLH |
Refer to Fig .3 |
… |
… |
100 |
ns |
High Low delay time |
tpLH |
Refer to Fig .3 |
… |
… |
100 |
ns |
Pulse width distortion |
tw |
Refer to Fig .3 |
-15 |
… |
+15 |
ns |
Jitter |
tj |
Refer to Fig .3 |
… |
1 |
+15 |
ns |
Optical Fiber Receiving Module Electro-Optical Characteristics
Parameter |
Symbol |
Conditions |
MIN. |
TYP. |
MAX. |
Unit |
|
Peak emission wavelength |
λp |
|
… |
660 |
|
nm |
Receiver input optical power level |
Pc |
Refer to Fig.3 |
-24 |
… |
-13.5 |
dBm |
Dissipation current |
Icc |
Refer to Fig .2 |
3 |
… |
7 |
mA |
High level input voltage |
VoH |
Refer to Fig .1 |
2.1 |
… |
… |
V |
Low level input voltage |
VoL |
Refer to Fig .1 |
… |
0.2 |
0.4 |
V |
Rise time |
tr |
Refer to Fig .1 |
… |
8 |
20 |
ns |
Fall time |
tr |
Refer to Fig .1 |
… |
8 |
20 |
ns |
Low High delay time |
tpLH |
Refer to Fig .1 |
… |
… |
100 |
ns |
High Low delay time |
tpLH |
Refer to Fig .1 |
… |
… |
100 |
ns |
Pulse width distortion |
tw |
Refer to Fig .1 |
-15 |
… |
+15 |
ns |
Jitter |
tj |
Refer to Fig .1 |
… |
… |
15 |
ns |
Mechanical Characteristics(Ta=25°C)
Parameter |
Symbol |
Conditions |
MIN. |
TYP. |
MAX. |
Unit |
Insertion and Withdrawal Force |
Fp |
*1 |
3.9 |
… |
40 |
N |

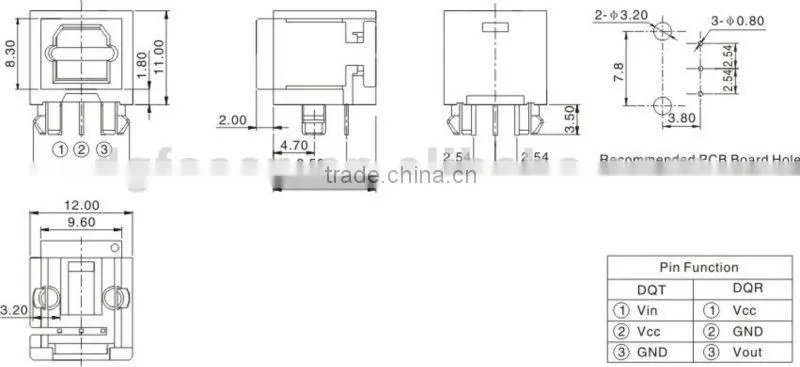

2. Diagram
3. Applications
They can be used to operate computer ancillary equipments, TV, audio equipments, all kinds of small automatization equipments and instruments etc.
