Characteristics
|
Knight series switches&sockets 4mm ultra-slim profile for the modern home or commercial space.A wide variety of standard, metallic or customized colours to choose from; providing design solutions for any decor. High-qualitypolycarbonate switch plates that provide our widest variety of functions and value-added features. 1, PC and stainless steel front-plate with Carbon Grey, Metallic Sliver, Rose Colors can be offered for your choice 2, Top quality polycarbonate design with Ultra-slim profiles ( Only 6 mm depth) 3, Easy replaceable switch plates to renew your modern decor anytime 5, Inside Electric Conductive Parts Used Top Class Phosphor Bronze, And Brass, Ensure Our Switch & Socket To Have A Good Electrical Conductivity And Lasting Elasticity 6, Extra large wiring terminals for easy connections 7, Ultra-slim steel switch base(1.3 mm depth ), prolonging its using time, and easy for installation 8, A ultra-large frame can be offered to seamlessly hold many sockets and switches in installation |
Main | |
Range of product |
Knight series |

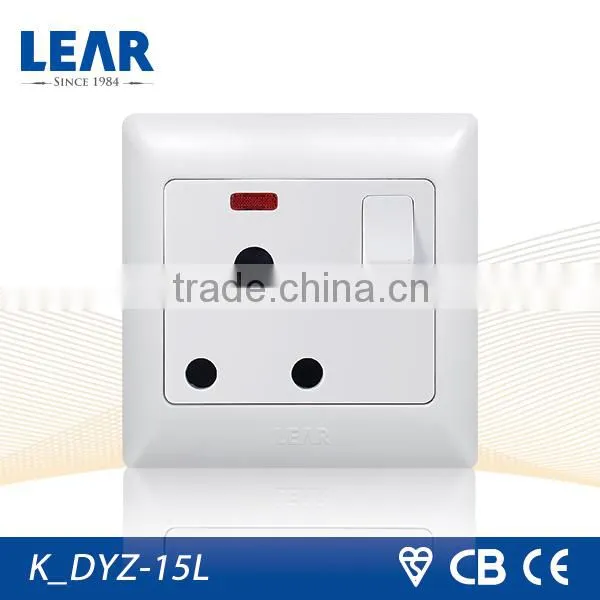

| Product code | K_DYZ-15L |
| Product name |
Multifunctional italian socket |
| Product or component type | Socket-outlet |
| Device presentation | Complete mechanism |
| Outlet standard | BS standard,Indian standard,Sri Lanka standart |
| Complementary | |
| Outlet poles configuration | 2P+E |
| Pilot light |
Neon |
| Number of gangs | 1 gang |
| Colour tint | White,Silver ,Champagne,Off-white color |
| Projecting depth | 6 mm |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Embedding depth | >= 35 mm |
| Rated current | 13 AX |
| Rated operational voltage | 250 V AC |
| Network frequency | 50-60HZ |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Brass pillar terminal |
|
Terminal identifier
|
L N E |
| Tightening torque |
0.4 N.m |
| Clamping connection capacity | 2 x 4 mm² 3 x 2.5 mm² |
| Width | 86mm |
| Height | 86mm |
|
Material | |
| Front-plate | Polycarbonate |
| Back-frame | 1.3mm steel with insulation varnish |
| Back-base | Polycarbonate |
| Switch contacts material |
Silver |
| Conductive parts | Brass and phosphor bronze |
| Environment | |
|
Standards
|
IEC 60884 BS 546 |
| Ambient air temperature for operation | -5...40 °C |
| Relative humidity | 0...95 % |
| Environmental characteristic |
Indoor use |
| Contractual warranty | |
| Period |
15 YEARS |
Packaging&Shipping
| Quantity per Carton | 10PCS/Box,100PCS/Carton |
| Carton Dimension | 50.5x33x22.8cm |
| G.W/Carton | |
| N.W/Carton |
