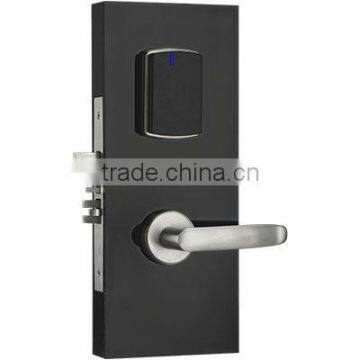

S3072H-3 Split Keyless RFID Card Hotel Lock With Free Software
S3072H-3 Split keyless RFID card hotel lock with free software
1,Split design with hidden mechanical key.
2, stainless steel 304
3, working with handset for easy programming.
3, 3 years' warranty.
Features :
RF card
Repeated record: at least 100,000 times
Data duration: at least 10 years
264-byte eeprom architecture
Encryption: 32 digits
Working voltage: direct current 6.0V-9.0V, duration of 10,000 times.
Consumption: static: ≤15(UA)
opening: 200(MA),(delay of 100ms)
Working temperature: 0°C+70°C
Anti-static: >/=15000V
Opening records: 500pcs(card type,opening time)
Optional

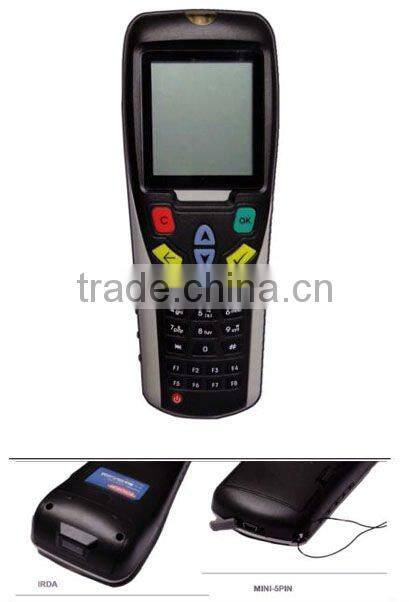

---Handhold Programming Unit :

Main Features :
Program door locks
Adjust door locks’ clock with real time.
Audit trail, 20 door locks each time.
Check records, 20 door locks each time
Open any door lock
Door lock functions set up
LED Light Indication :
LED Color |
Times |
Indication |
Solution |
Yellow |
1 |
card not issued (blank or wrong card). |
Reissue the card. |
Yellow |
2 |
Wrong room No or area No.. |
Check the room card. |
Yellow |
3 |
Card expired. |
Renew the card. |
Yellow |
4 |
The lock is not programmed |
Authorize the lock with Athor card. |
Yellow |
5 |
This card has been suspended(blacklisted) |
Issue a new card. |
Yellow |
6 |
The deadbolt is activated. |
Guest inside, use master card. |
Yellow |
7 |
The lock is blocked. |
Unblock the lock. |
Yellow |
8 |
The card is not issued from this system. |
Change a card. |
Red |
3 |
Battery power low. |
Change battery. |
Red |
1/5s |
Deadbolt activated. |
Normal state. |
System illustration :
Smart Design---Override Key :
