E3061 Electronic Key Card Lock With Slim Euro Design and Anti-panic Function

E3061 Electronic Key Card Lock With Slim Euro Design and Anti-panic Function thumbnail-1
E3061 Electronic Key Card Lock With Slim Euro Design and Anti-panic Function thumbnail-2
E3061 Electronic Key Card Lock With Slim Euro Design and Anti-panic Function thumbnail-3
E3061 Electronic Key Card Lock With Slim Euro Design and Anti-panic Function thumbnail-4
E3061 Electronic Key Card Lock With Slim Euro Design and Anti-panic Function thumbnail-5
E3061 Electronic Key Card Lock With Slim Euro Design and Anti-panic Function thumbnail-6

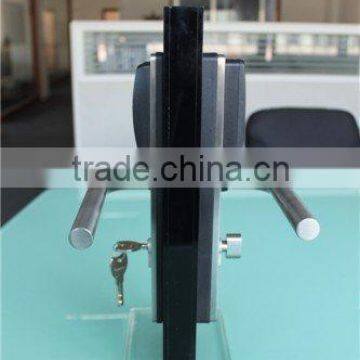

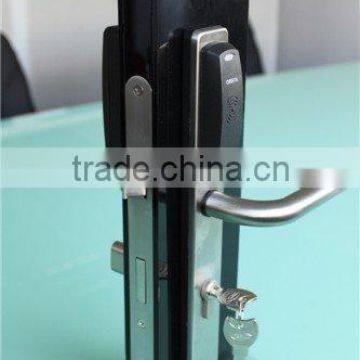

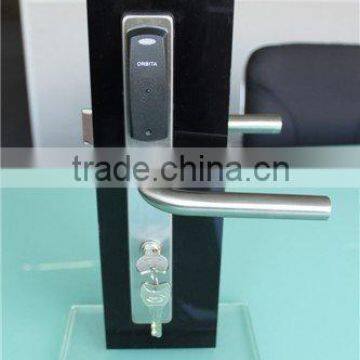

E3061 Electronic Key Card Lock With Slim Euro Design and Anti-panic Function photo-1
E3061 Electronic Key Card Lock With Slim Euro Design and Anti-panic Function photo-2
E3061 Electronic Key Card Lock With Slim Euro Design and Anti-panic Function photo-3
E3061 Electronic Key Card Lock With Slim Euro Design and Anti-panic Function photo-4
E3061 Electronic Key Card Lock With Slim Euro Design and Anti-panic Function photo-5
E3061 Electronic Key Card Lock With Slim Euro Design and Anti-panic Function photo-6
US$ 1 - 65 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ORBITA
Model Number:
E3010
Contact Supplier Request Quote Chat Now
Orbita Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ORBITA
Model Number E3010

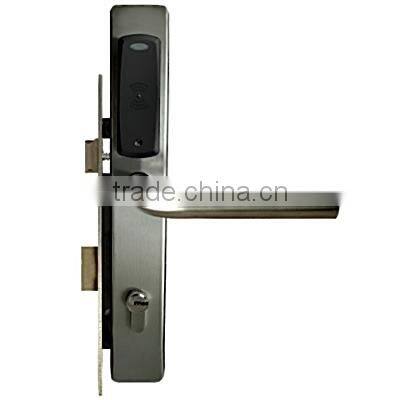

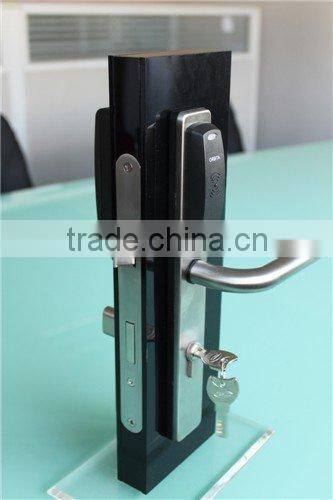

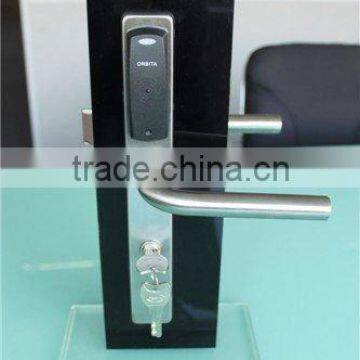

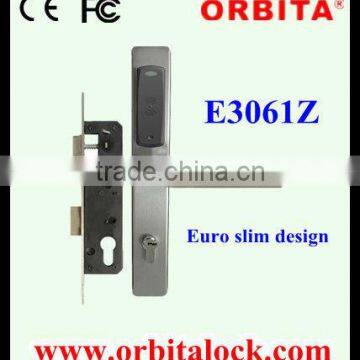

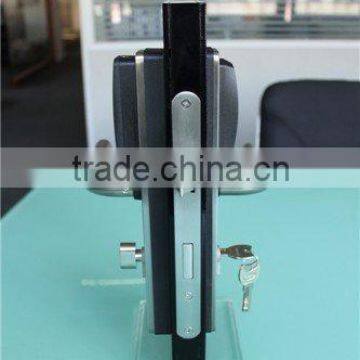

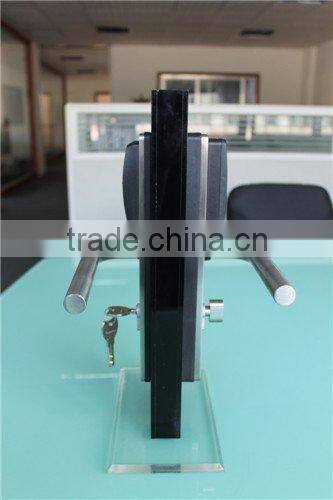

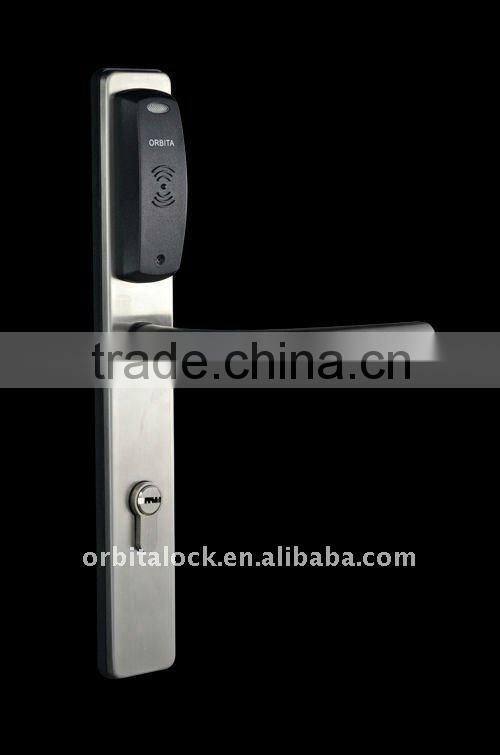

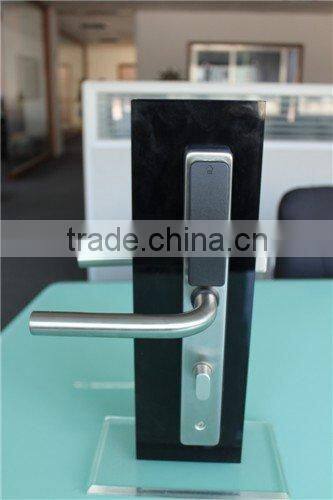

E3061 electronic key card lock with slim euro design and anti-panic function



Main Features:

Model:E3060Z

1: Material: Cast Stainless Steel, moisture proof, fire retardant.

2:European Standard mortise 72mm/85mm hole distance

3:Power: 4 pcs AAA Alkaline batteries, 18 months duration. low battery voltage warned(Lower than 5.5 V.).Self error detected and improper locked warning.

4:Static load:<10 uA; Working load:100-150mA

5:Temperature:-50℃-80℃;Humidity:20%-80%

4: Temic card Or Mifare card, 100,000 times life.
5: Suitable for door: wooden door, fire-proof door, metal door.
6:Override Computer Key for Emergency use, individual/master cylinder available .

7: Lock operation records can be printable. 240 pcs or more stored in the card lock.

8: Step by step installation software, easy operation card lock. OEM locking system available

9:Classified Access Authorization for safety management available.
10:One card system available.card lock, lift, garage, swimming pool, Gym etc.
Orbita card lock can Interface with most of the PMS system.

11: Certificate: CE & FCC & ROHS



Note: You can replace your old mechanical lock not change your mortise and carpentry,just need our two pcs panels then your mechanical locks can change into the electronic one, save your door and save much cost.



14: Remark:

Step by step installation software, easy operation. OEM locking system available.

Classified Access Authorization for safety management.

General master card, building master card, floor master card, guest card, Fire-alarm card

All card with validity, guest card expires automatically at default check out date and time.

Meeting room function and three levels of passage door functions.

Lost guest card suspension simply by issuing a new guest card with suspending function.

Multiple operators with different card issuing authorizations

Lock operation record printable. 240 pcs or more

Receptionist card issuing records printable

Wireless stand alone lock realizes 95% of on line lock function.

Can be integrated with 16 public areas such as Lift/Parking/Swimming Pool/Sauna Room/Tennis court/Gym etc.

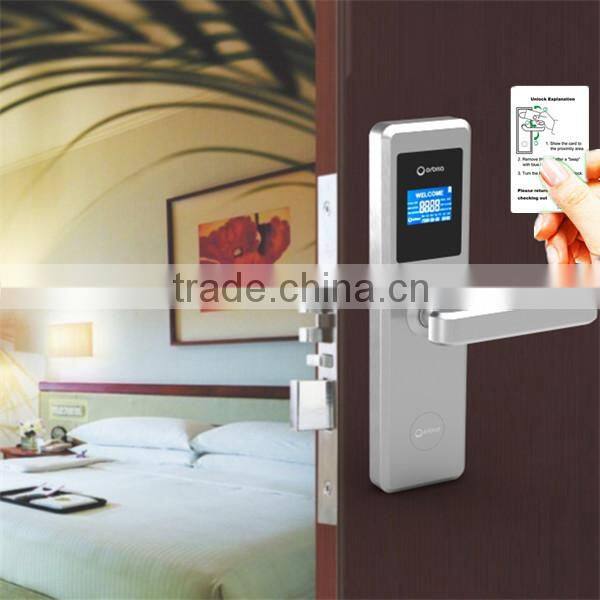

How ORBITA hotel locking system works?
Our hotel locking system consists of following:
-  PC (usually located on the reception desk of hotel lobby)
- Hotel lock management software+Encoder (How the cards are issued)
-  Hotel card lock (Installed on the hotel room door)
- Cards (The keycard to open doors)


Lock Indication Symbols

No.

Status

Beep Indication

LED indication(flash)

1

Correct

1

green LED, 1

2

Slant Latches get Stuck

Continuous

Red LED keeps flashing

3

Error

2

Red LED 3

4

Clear Authorization

1 Long

Green LED 1

5

Wrong Area

3

Yellow LED 2

6

Wrong time

3

Yellow LED 3

7

Card Suspending Error

3

Yellow LED 4

8

Illegal Card

4

Yellow LED 3

9

Illegal card

4

Yellow LED 4

10

Clock card over time

4

Red LED

11

Deadlocked

2

Red LED

12

Non Access Setting

5

Red LED

13

Cancel

3

Red LED

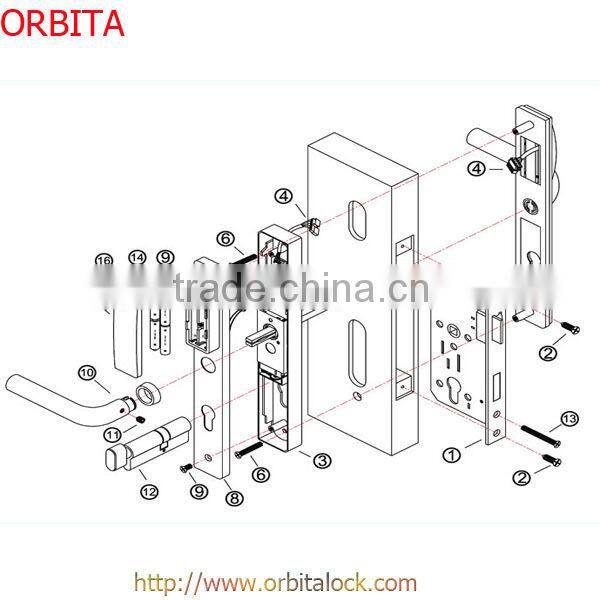

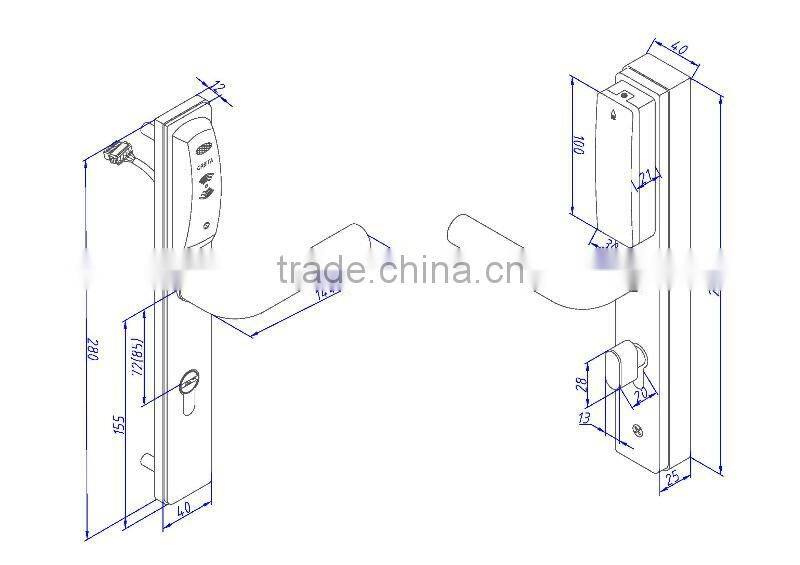

INSTALLATION:

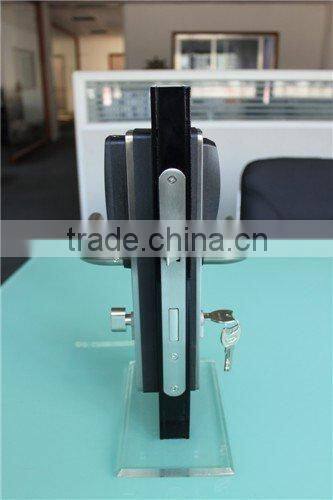

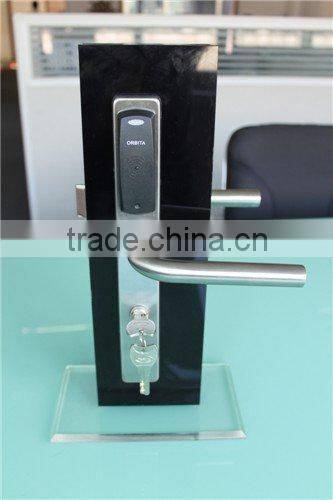

 E3061 electronic key card lock with slim euro design and anti-panic functionE3061 electronic key card lock with slim euro design and anti-panic functionE3061 electronic key card lock with slim euro design and anti-panic functionE3061 electronic key card lock with slim euro design and anti-panic functionE3061 electronic key card lock with slim euro design and anti-panic functionE3061 electronic key card lock with slim euro design and anti-panic functionE3061 electronic key card lock with slim euro design and anti-panic functionE3061 electronic key card lock with slim euro design and anti-panic functionE3061 electronic key card lock with slim euro design and anti-panic functionE3061 electronic key card lock with slim euro design and anti-panic functionE3061 electronic key card lock with slim euro design and anti-panic functionE3061 electronic key card lock with slim euro design and anti-panic function



E3061 electronic key card lock with slim euro design and anti-panic functionE3061 electronic key card lock with slim euro design and anti-panic functionE3061 electronic key card lock with slim euro design and anti-panic function
