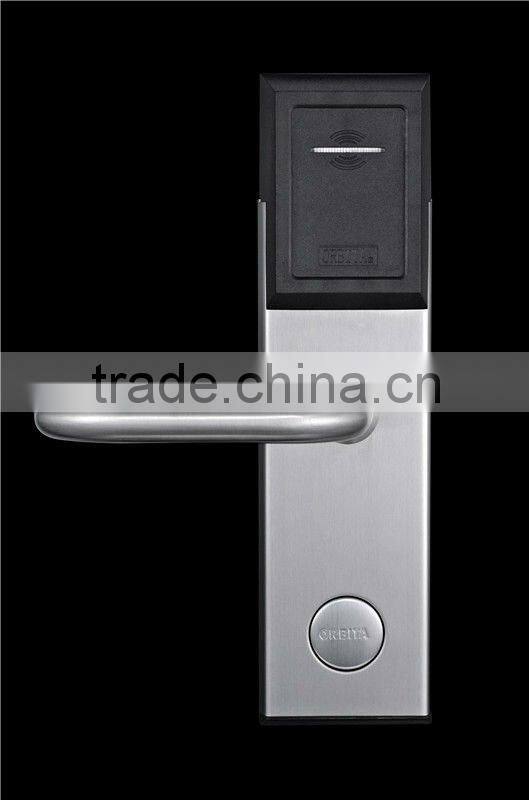

Stainless Steel RF Card Door Lock(with Software for Free)

Specifications

Stainless steel RF card door lock(with software for free)

1: Model:E3090

2: Weight: 3.8 kgs/pc

3: 295mm*78mm*17mm

4: Static Load<10Ua, Working Load: 100Ma-150Ma

5: Humidity: 20%-90%

6: Working tempreture:-50°C-80°C

7: Power: 6V AA alkaline batteries, 18 months’ duration, low Battery Voltage warning. (Lower than 3.5 V)

8: Stainless steel material, moisture proof, fire retardant, lasting more than10 years

9: ANSI Standard mortise/Euro standard mortise. Deadbolt inside. Inside handle retracts latches and deadbolt.

10: Suitable door: Wooden door, fire-proof door, metal door and so on.

10: Temic 5557 card or Mifar 1K/4K, compatible with Energy Saver

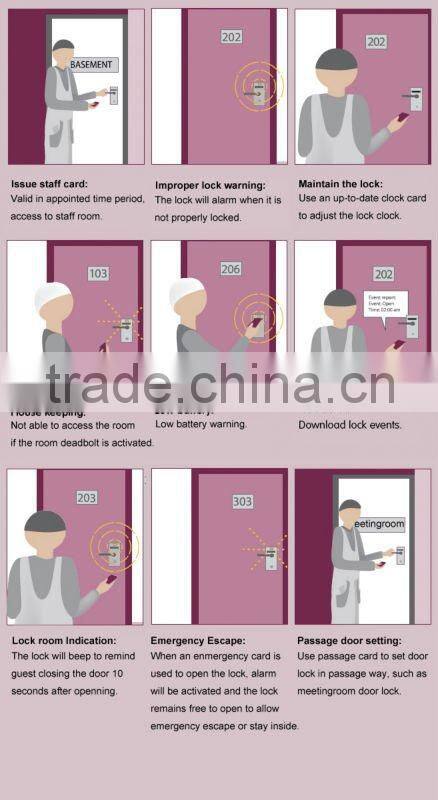

11: Override Computer Key for Emergency use, individual/master cylinder, Self Error detecting by LED and "beep”. Improper lock warning

12: PMS systems interface (Fidelio) available

13: CE & FCC& ROHS Certificate

14: Remark:

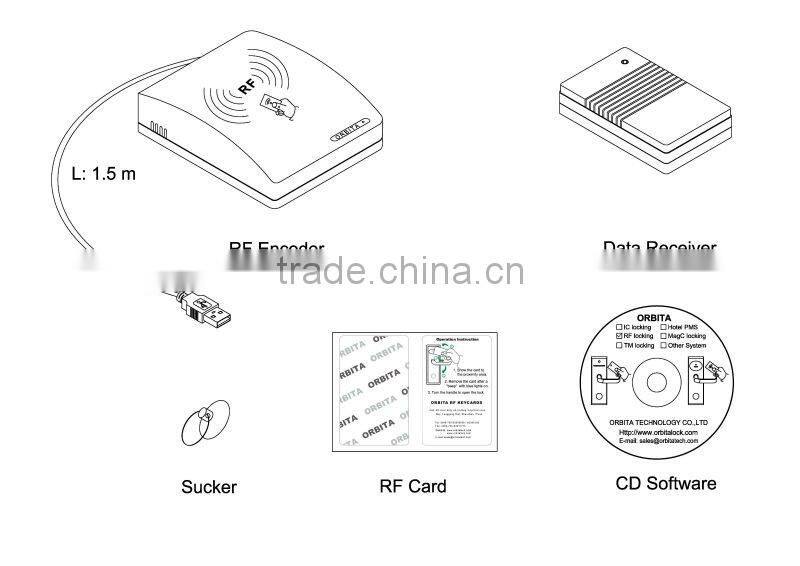

Step by step installation software, easy operation. OEM available.

Classified access authorization for safety management.

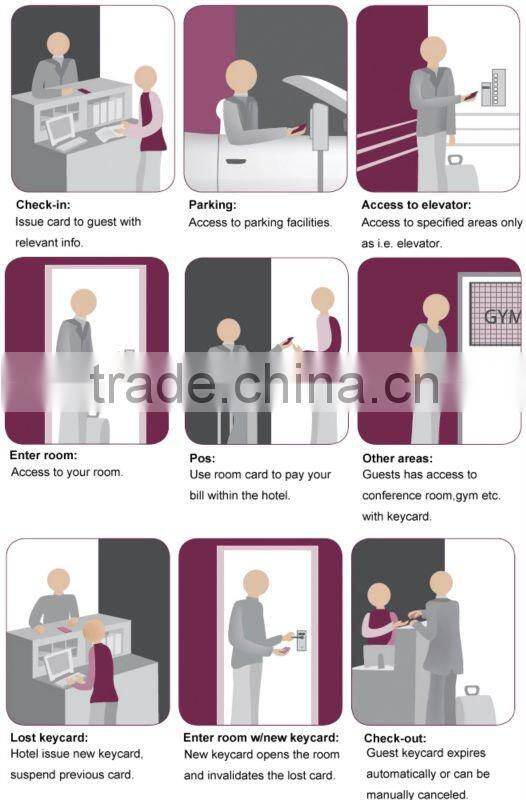

General master card, building master card, floor master card, guest card, Fire-alarm card

All cards with validity, guest card expires automatically at default check out date and time.

Meeting room function and three levels of passage door functions.

Lost guest card suspension simply by issuing a new guest card with suspending function.

Multiple operators with different card issuing authorizations

Lock operation records printable. 240 pcs or more

Receptionist card issuing records printable

Wireless stand alone lock realizes 95% function of net locks.

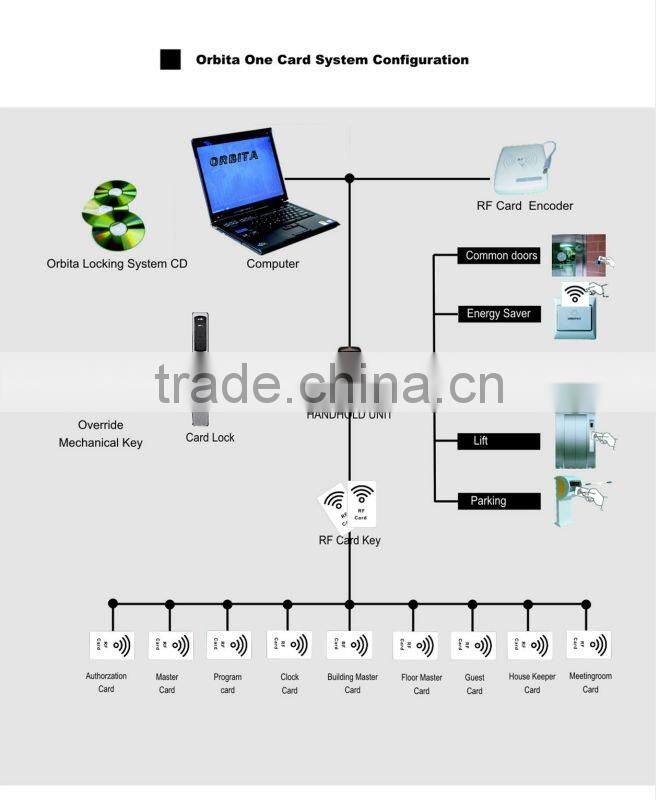

Can be integrated with 16 public areas such as Lift/Parking/Swimming Pool/Sauna Room/Tennis court/Gym etc.
